Fuel Tank: Description and Operation

Fuel Tank

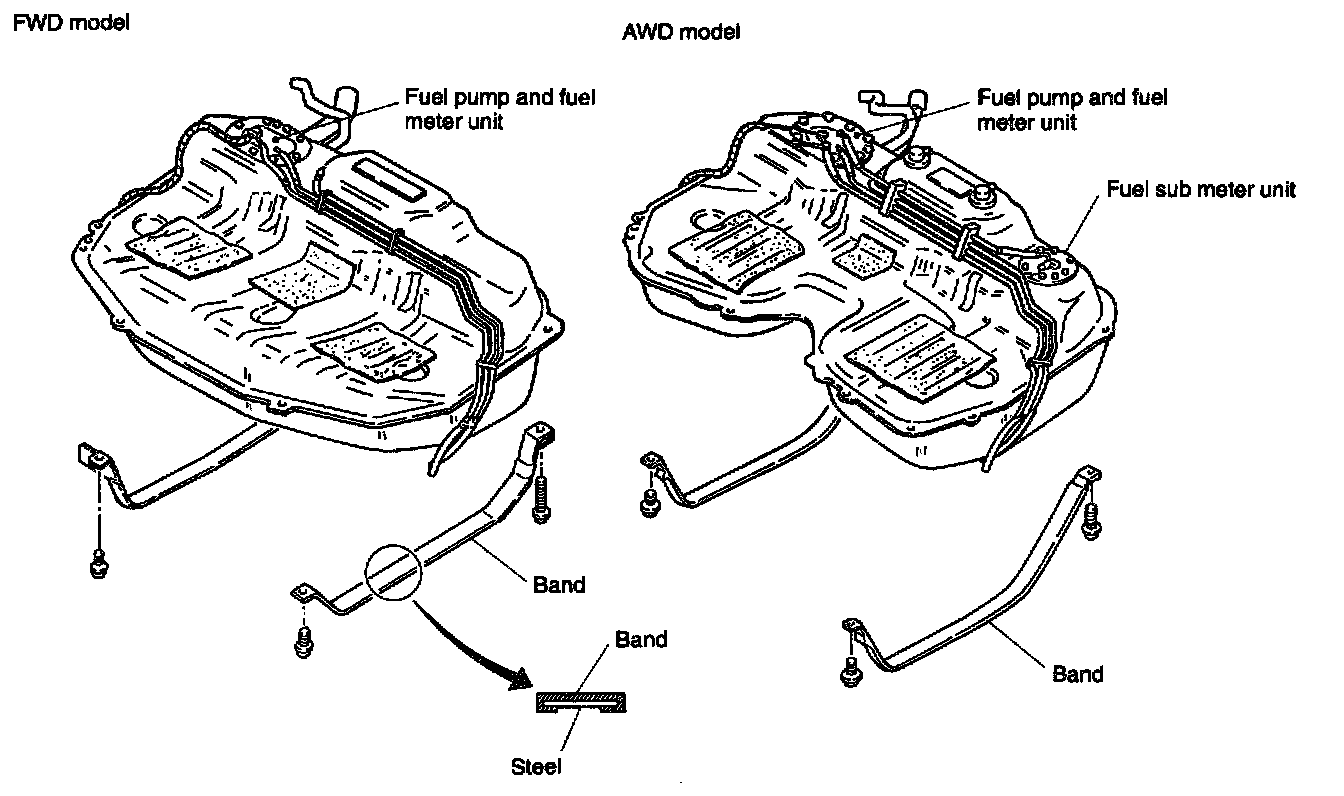

- The fuel tank is located under the rear seat and secured with hold down bands On AWD models, the fuel tank utilizes a dented design to prevent interference with the rear differential
- The fuel tank (for AWD model) has two chambers, and is provided with a suction jet pump which transfers fuel from one chamber to another Each fuel chamber has a built-in fuel sub meter unit
