F: Installation

F: INSTALLATION





1) Insert sleeve yoke into transmission and attach center bearing to vehicle body.

Tightening torque:
52 ± 5 N.m (5.3 ± 0.5 kg-m, 38.3 ± 3.6 ft-lb)

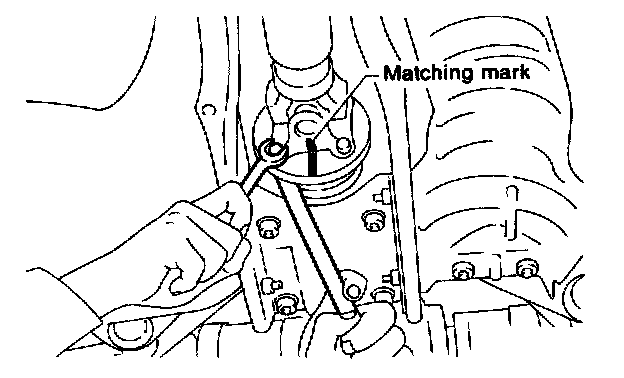

2) Align matching marks and connect flange yoke and rear differential.

Tightening torque:
31 ± 8 Nm (3.2 ± 0.8 kg-m, 23.1 ± 5.8 ft-lb)

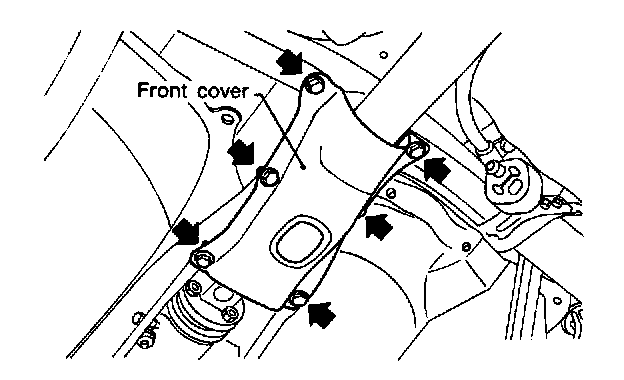

3) Install differential mount front cover.

Tightening torque:
88 ± 10 N.m (9.0 ± 1.0 kg-m, 65 ± 7 ft-lb)

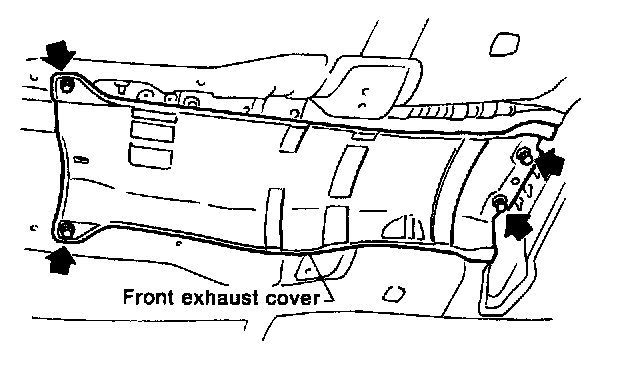

4) Install front exhaust cover.
5) Install rear exhaust pipe and muffler.
