Front Wiper and Washer
Front wiper1. The front wiper is of a tandem type featuring wide wiping area. The blade is installed to the arm by means of U-hook joint to improve serviceability.
2. The front wiper operates in three modes of speed; HI, LOW and INTERMITTENT.
The operation speed can be changed by turning the wiper switch incorporated in the combination switch.
Front Wiper/Washer System:
3. The intermittent unit which controls the front wiper operation interval is installed behind the combination switch as shown in the illustration.
Front washer system

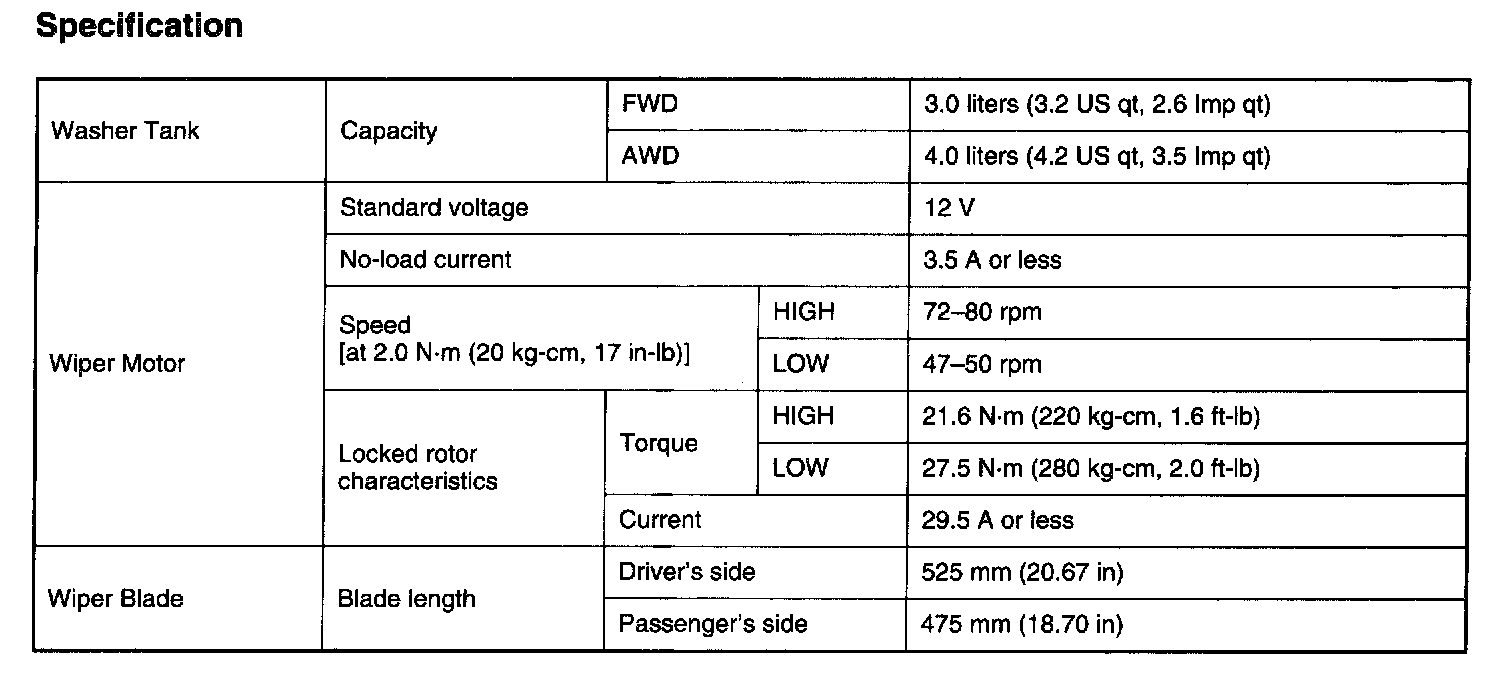

Specification:
1. The washer system consists of a washer tank, motor and a pair of nozzles.
2. The washer tank is installed at the front of the strut mount on the left side of the engine compartment.
3. The washer motor is installed directly at the lower position of the washer tank.
4. The washer nozzles are installed on the engine hood, and each nozzle has two injection ports.
