No Trouble Code - on Select Monitor Display, Warning Light on.
DIAGNOSIS: -
ABS warning light circuit is shorted.
TROUBLE SYMPTOM: -
ABS warning light remains on.
-
NO TROUBLE CODE displayed on the select monitor.
NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.

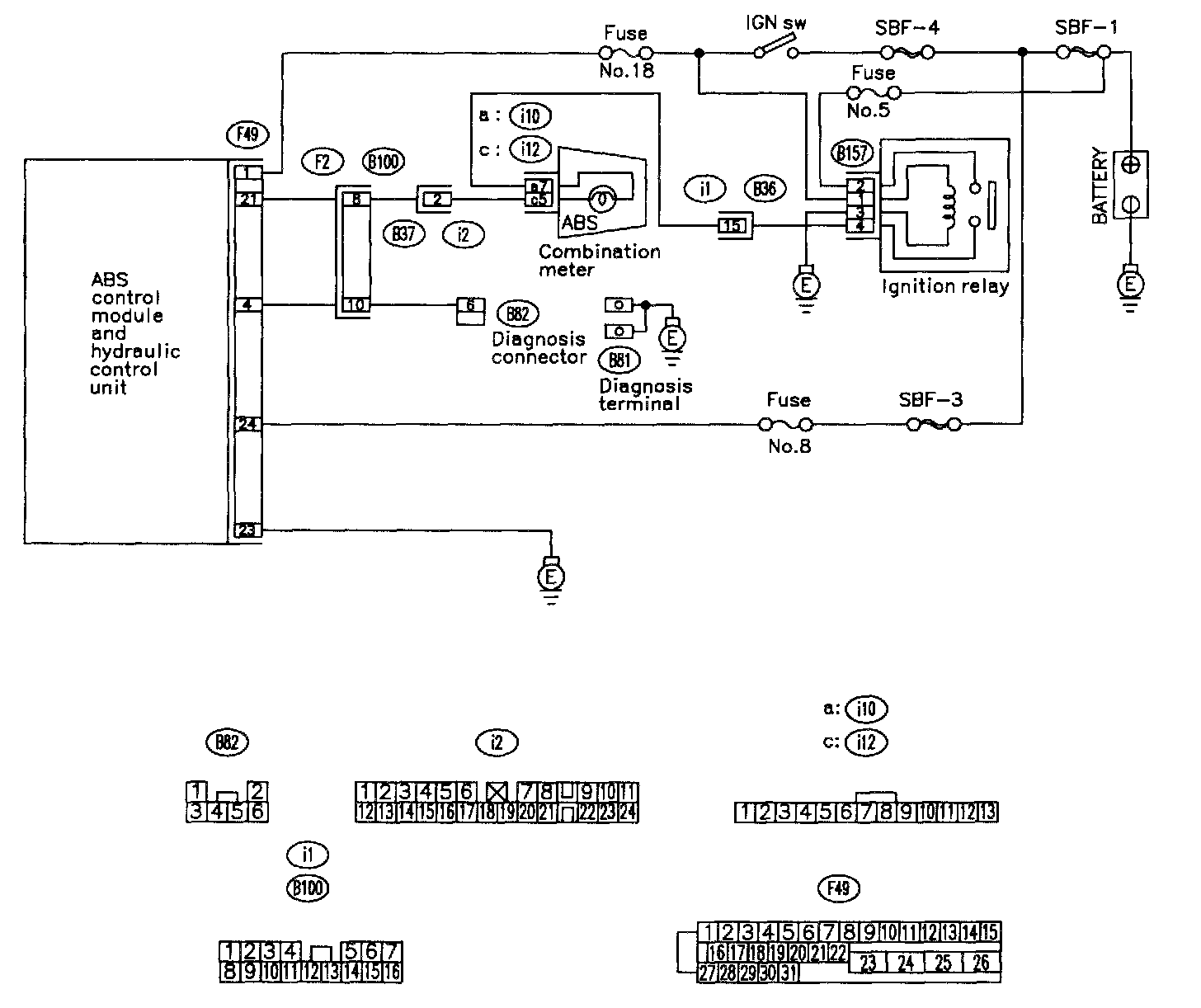

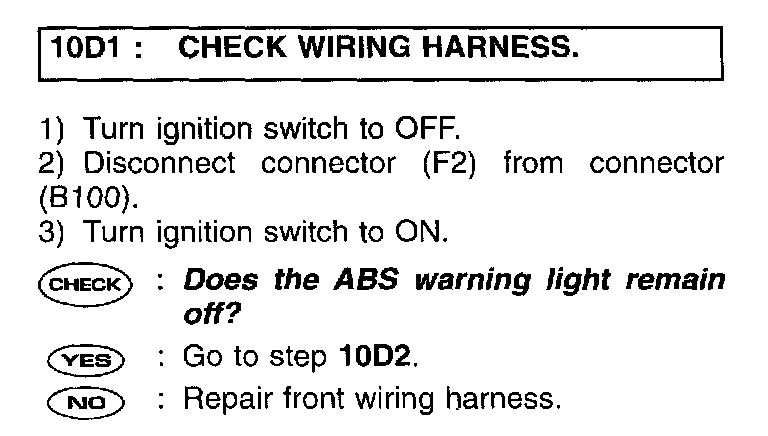

WIRING DIAGRAM10D1:

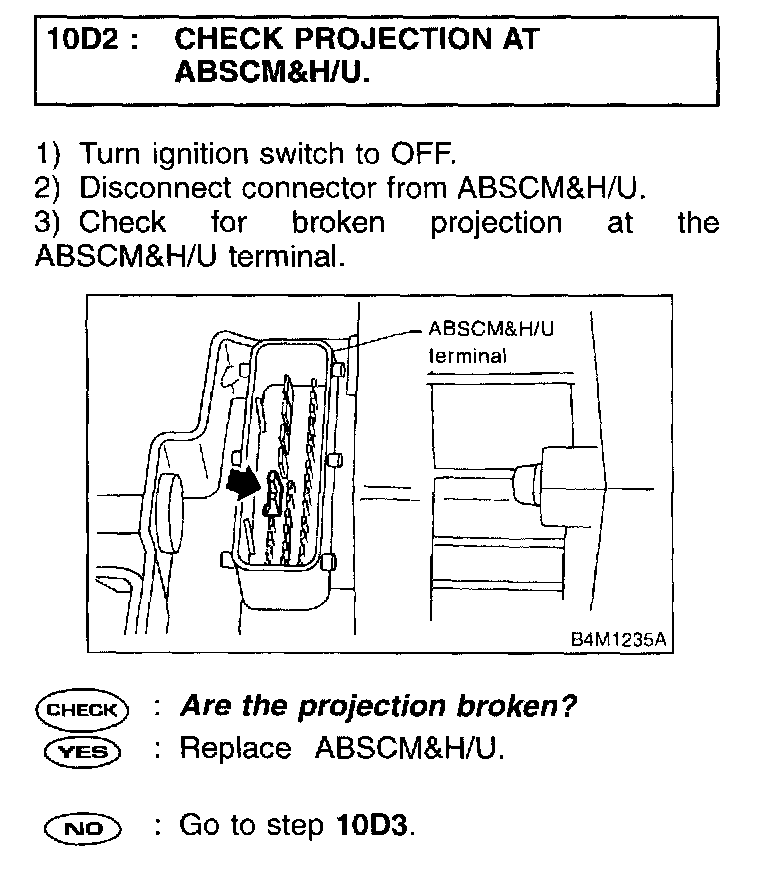

10D2:

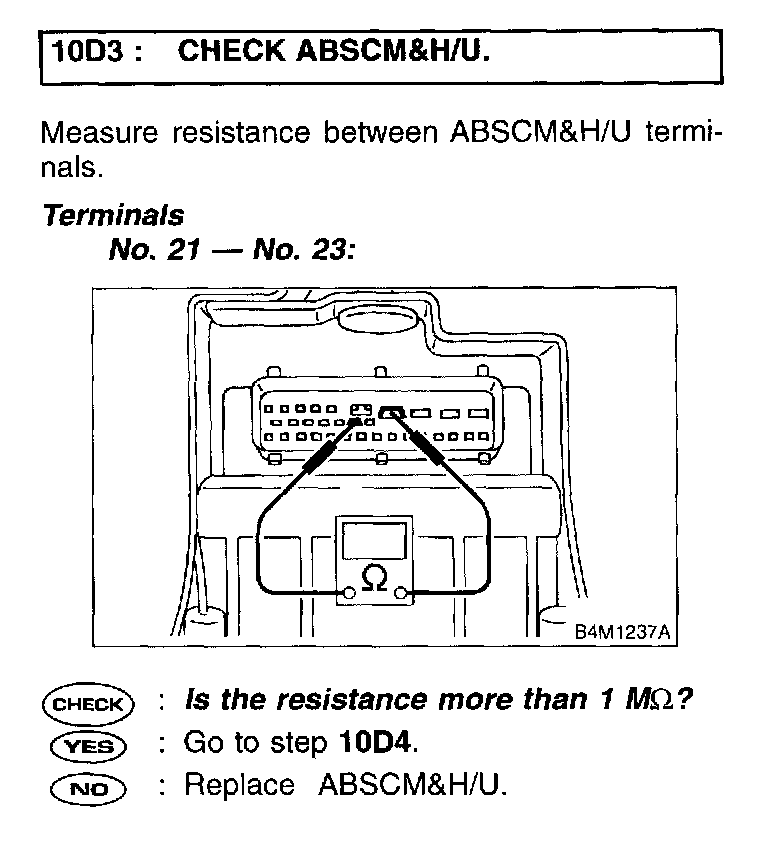

10D3:

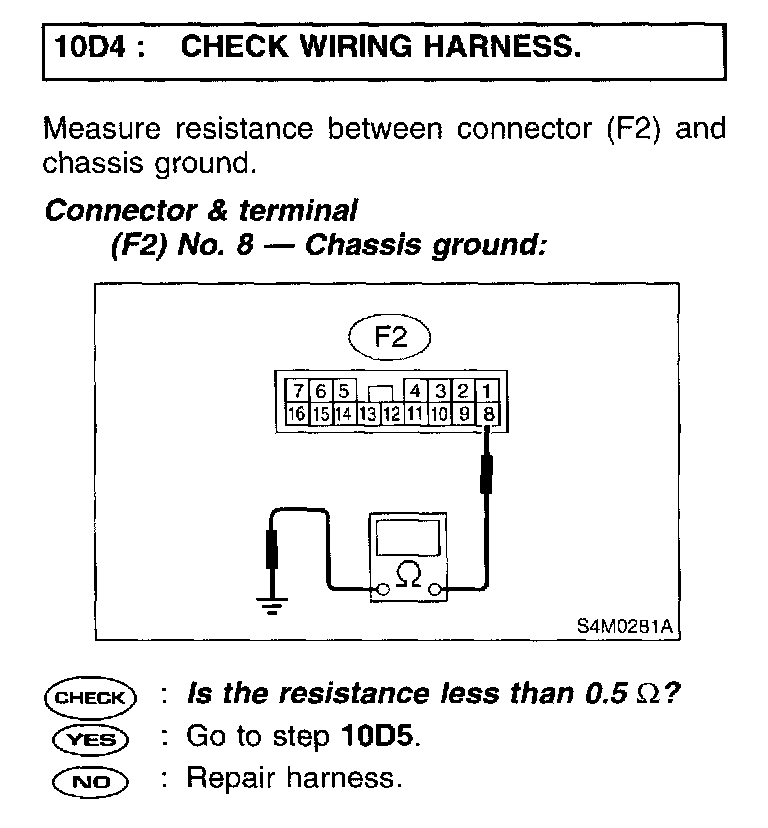

10D4:

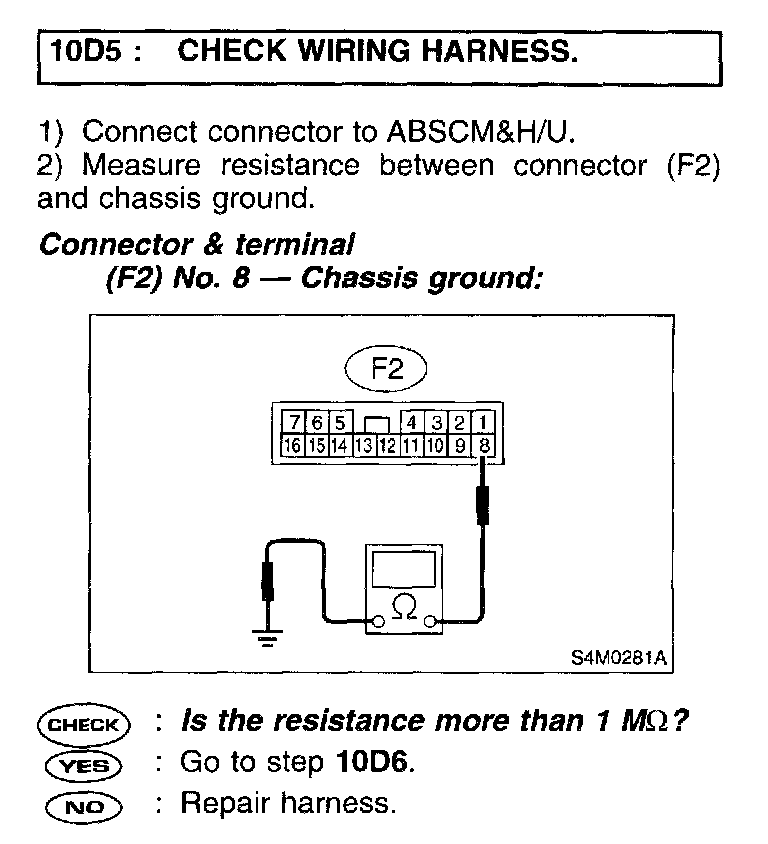

10D5:

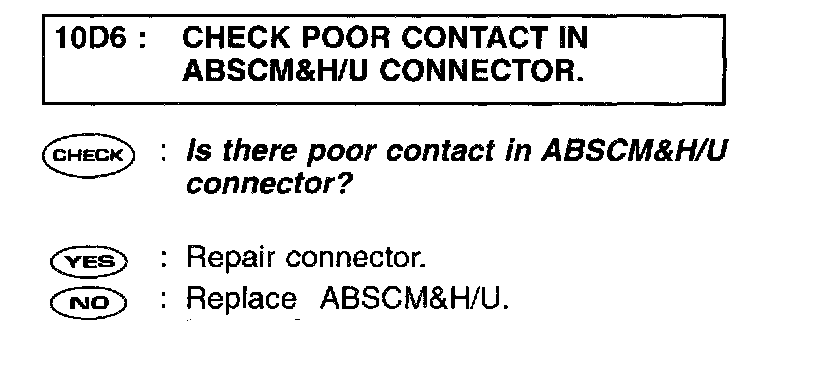

10D6:
INSPECTION PROCEDURES
