Timing Cover: Description and Operation

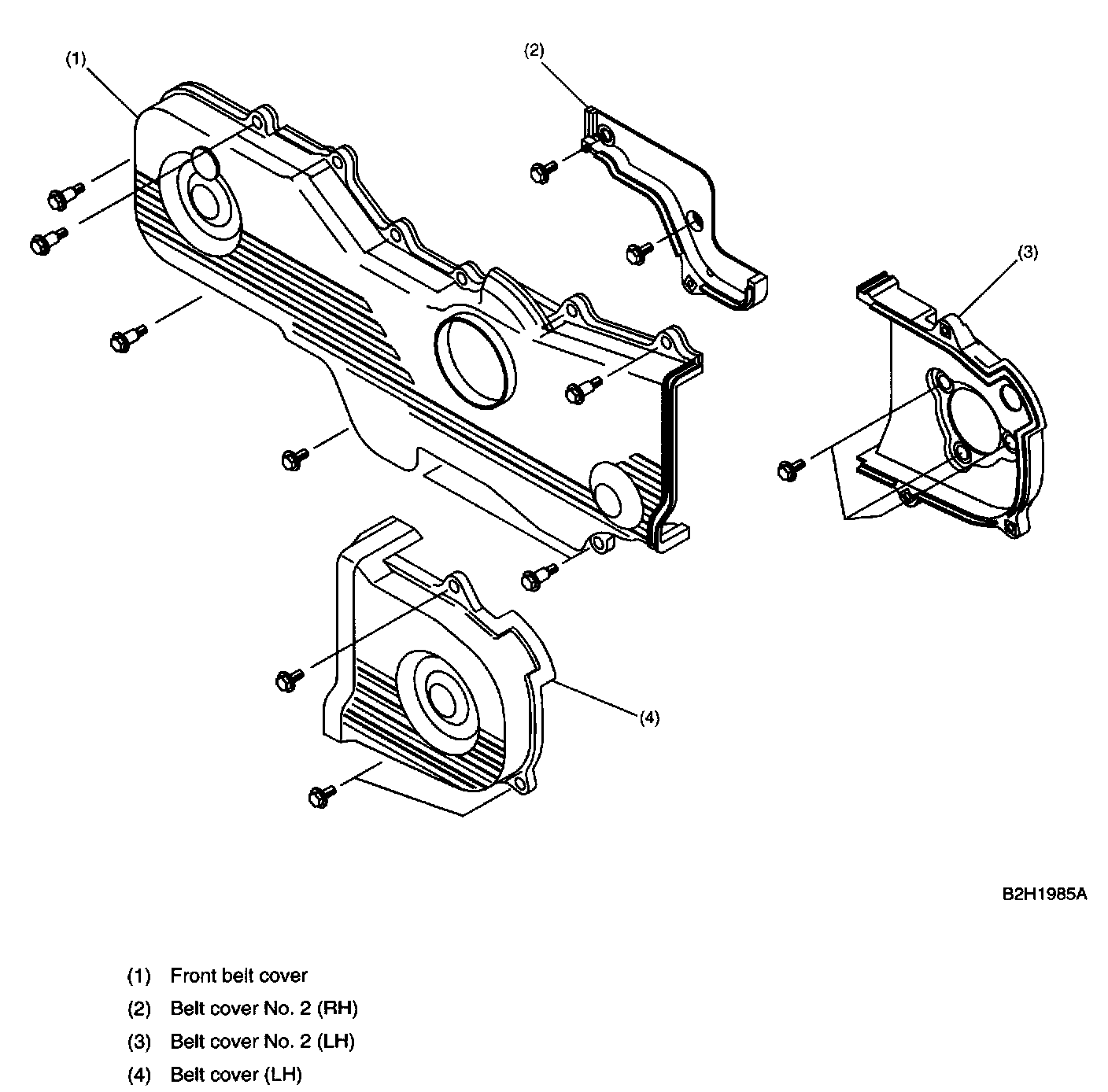

4. Belt Cover





^ The timing belt cover is made of synthetic resin molding which is lightweight and heat resistant. It has a totally enclosed design that utilizes rubber packing at the mating surface of the cylinder block. This eliminates the chance of dust and liquid from entering the interior.
^ A floating design is utilized by placing rubber mounting between the cylinder block and belt cover to prevent the noise and vibration of transmission.
^ The front belt cover has a graduated line for ignition-timing confirmation.
