Heater System Operation

Heater System Operation

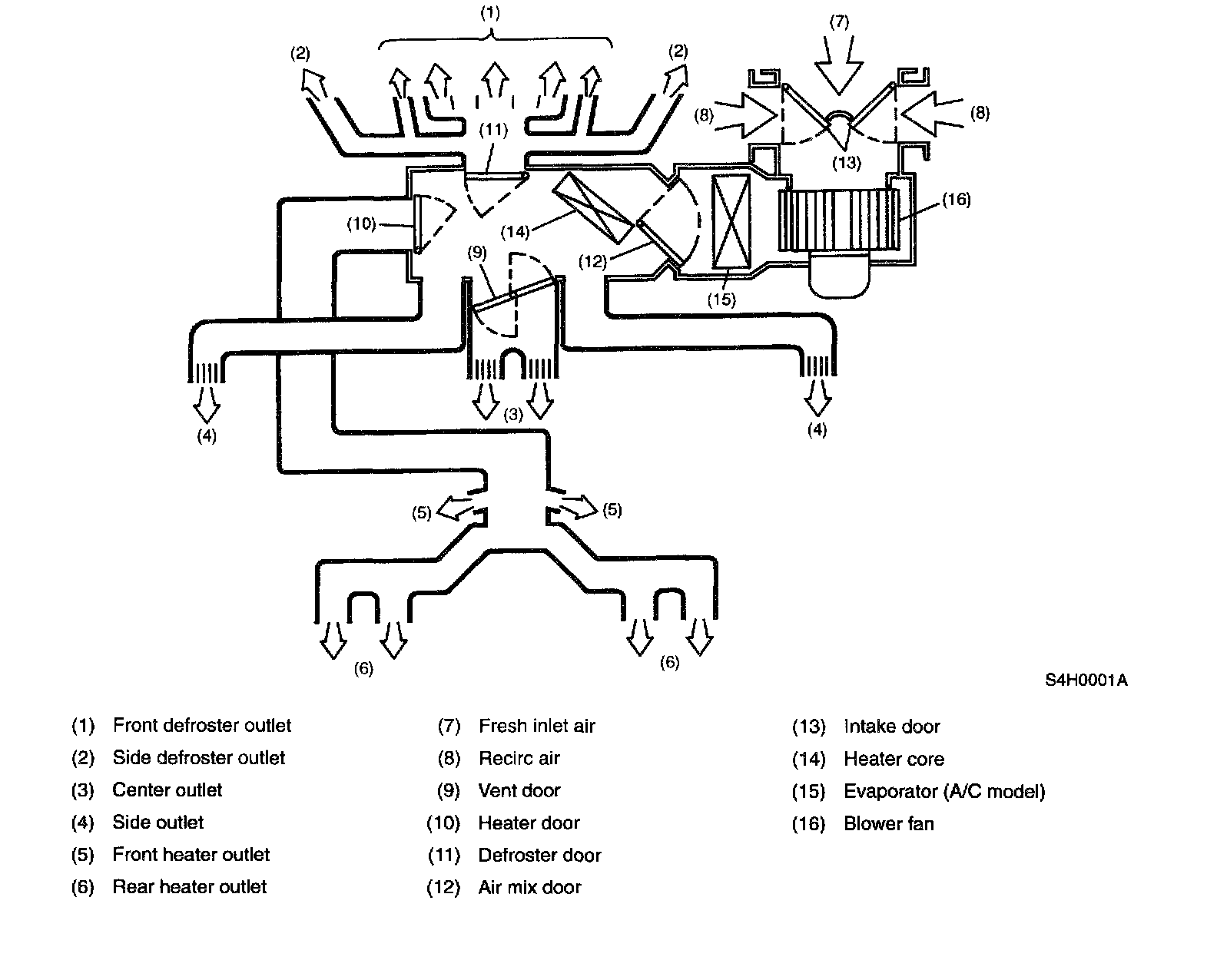

The heater control unit is located in the middle portion of the instrument panel.
The heater unit is provided with mode doors and an air mix door. The intake unit is provided with an intake door and blower motor. The heater unit and the intake unit are regulated by heater control unit.
Fresh outside air is introduced into the compartment through the center and side ventilator grilles when the blower fan is operated.
All models are equipped with the front side window defroster, and all models are further equipped with the rear heater duct.
