Lubricate the Components

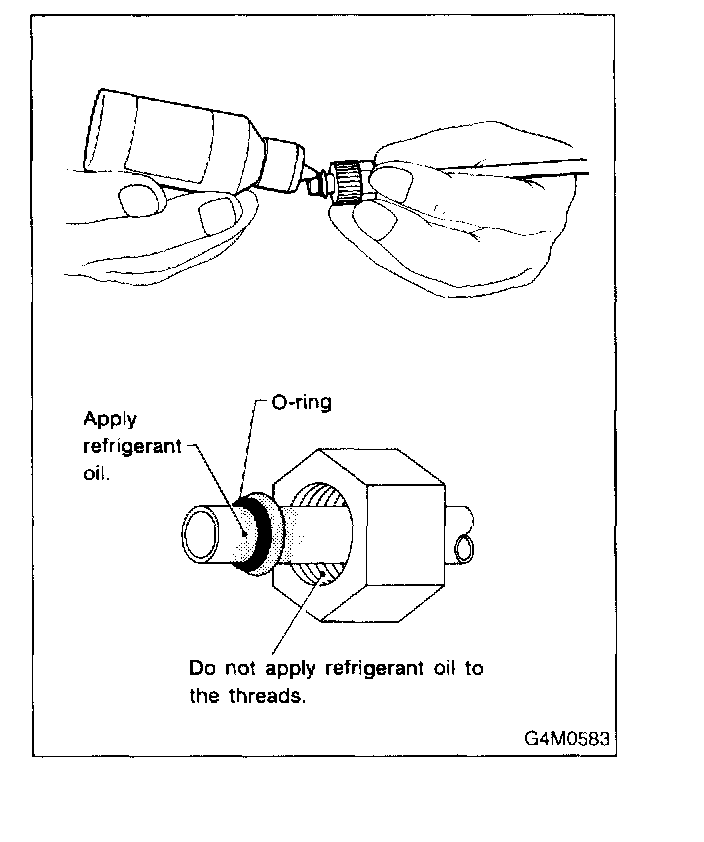

For lubrication of the components, use only
refrigerant oil as described in the appropriate service manual. Apply oil from an oil squirt gun or other closed container. Do not use your finger to spread the oil over the O-ring.
Apply a small amount of
refrigerant oil to the top and sides of the O-ring. The area covered by oil should include the O-ring and the tube bead.
