Fog/Driving Lamp: Service and Repair

1. Disconnect ground cable from battery.

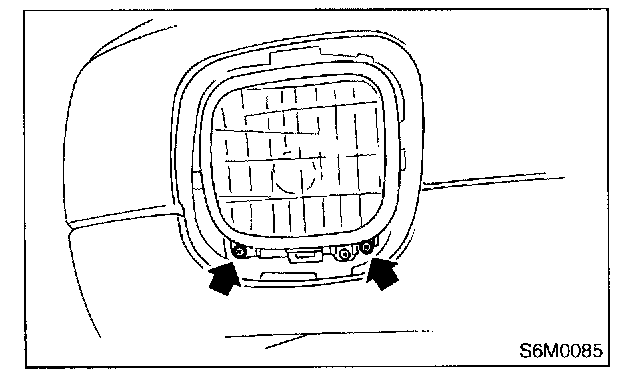

2. Remove the two screws, then draw out the front fog light from front bumper.
3. Disconnect the connector.
4. Installation is in the reverse order of removal.
