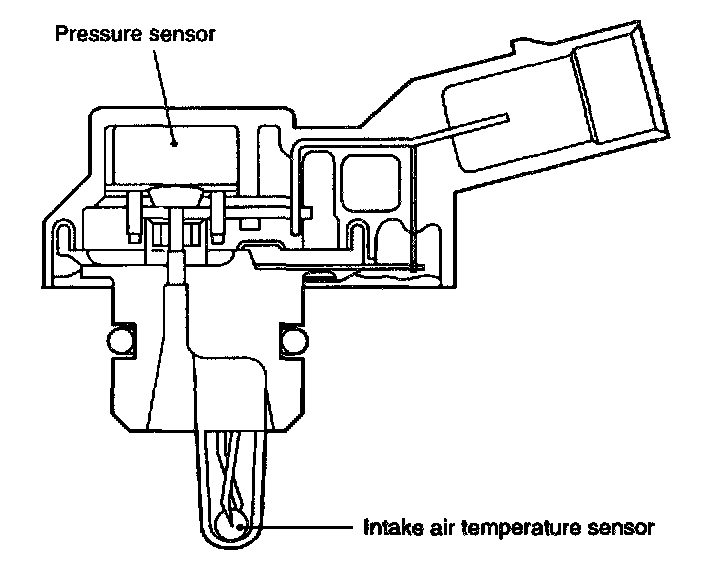

Intake Air Temperature Sensor

- The intake air temperature sensor is of the type that is made integral with a pressure sensor and is mounted on the intake manifold to measure the temperature of the intake air introduced through the air intake duct as well as it's pressure.

The measured temperature and pressure of the air is then coverted into electrical signals and sent to the ECM. The ECM uses those signals from the sensor to control the fuel injection amount as well as injection and ignition timing.
