Freeze Frame Data For Engine (OBD Mode)

1. On the [Main Menu] display screen, select the {Each System Check} and press the [YES] key.
2. On the [System Selection Menu] display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the [Engine Diagnosis] display screen select the {OBD System} and press the [YES] key.
5. On the [OBD Menu] display screen, select the {Freeze Frame Data} and press the [YES] key.

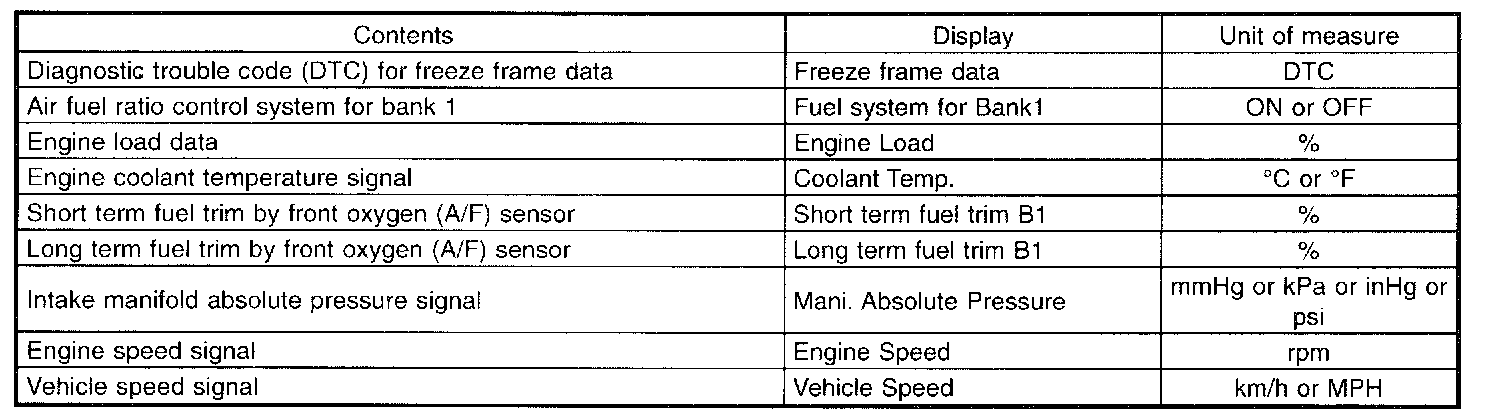

A list of the support data is shown in the table.

NOTE: For detailed operation procedure, Refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
