Check Line Pressure Duty

I: CHECK LINE PRESSURE DUTY SOLENOID.

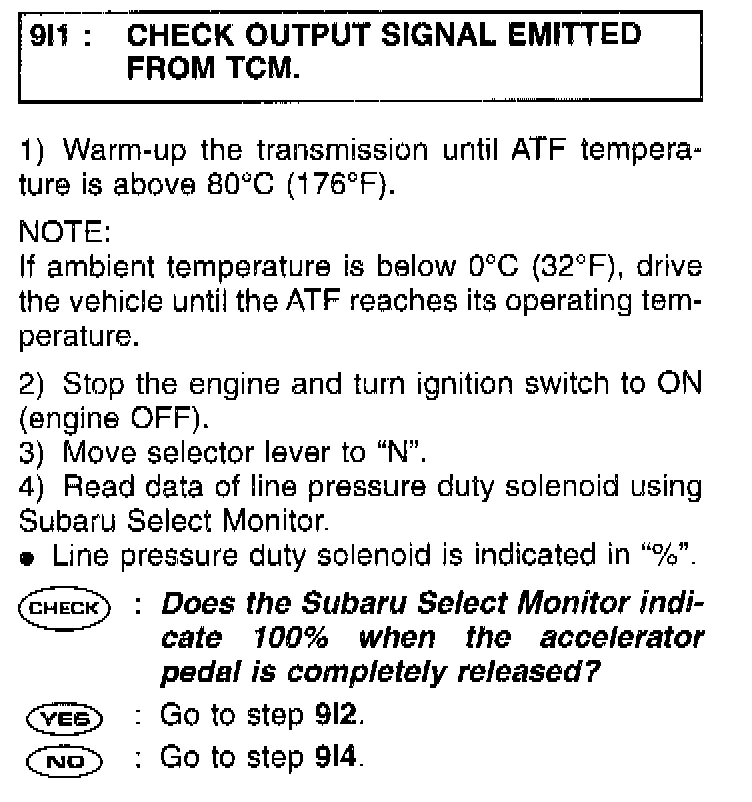

9I1 CHECK OUTPUT SIGNAL EMITTED FROM TCM.

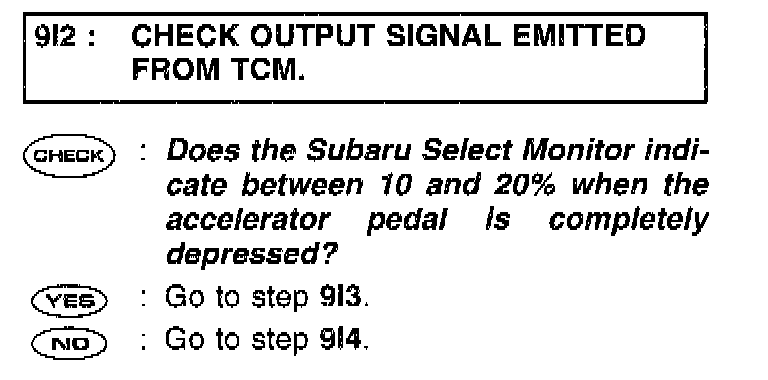

9I2 CHECK OUTPUT SIGNAL EMITTED FROM TCM.

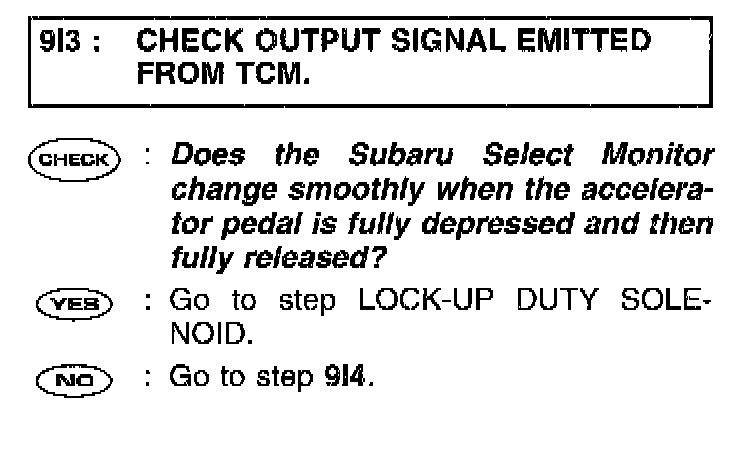

9I3: CHECK OUTPUT SIGNAL EMITTED FROM TCM.

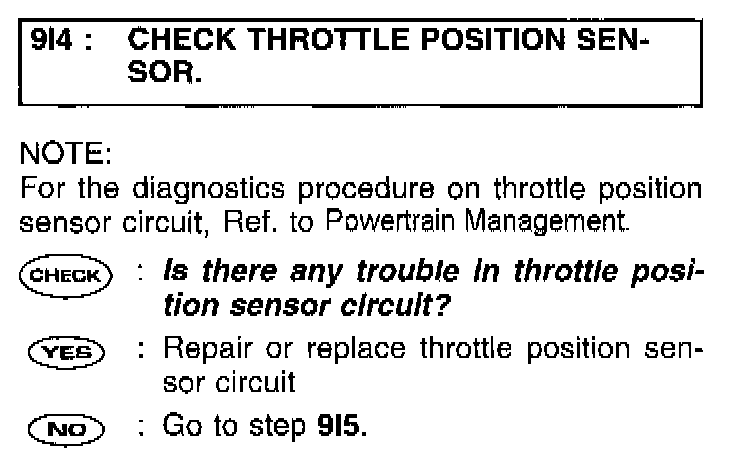

9I4 CHECK THROTTLE POSITION SENSOR.

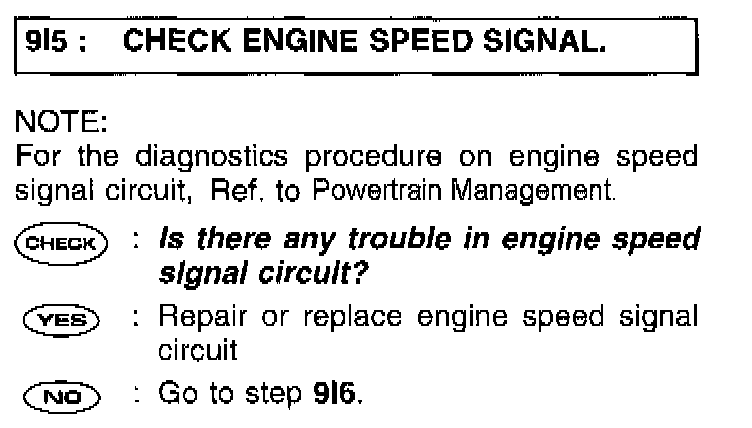

9I5 CHECK ENGINE SPEED SIGNAL.

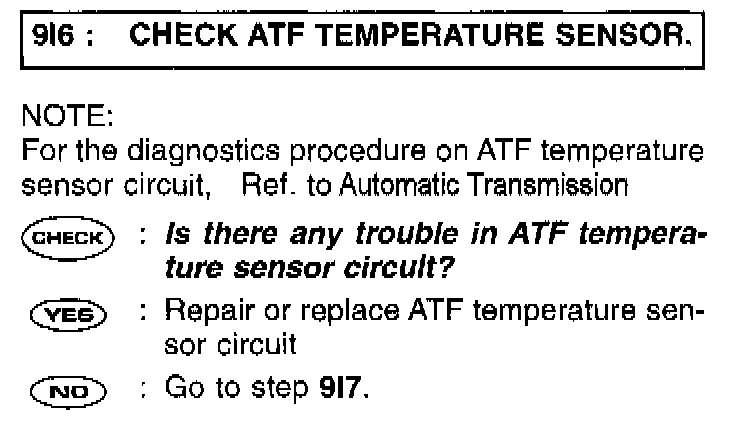

9I6 CHECK ATF TEMPERATURE SENSOR.

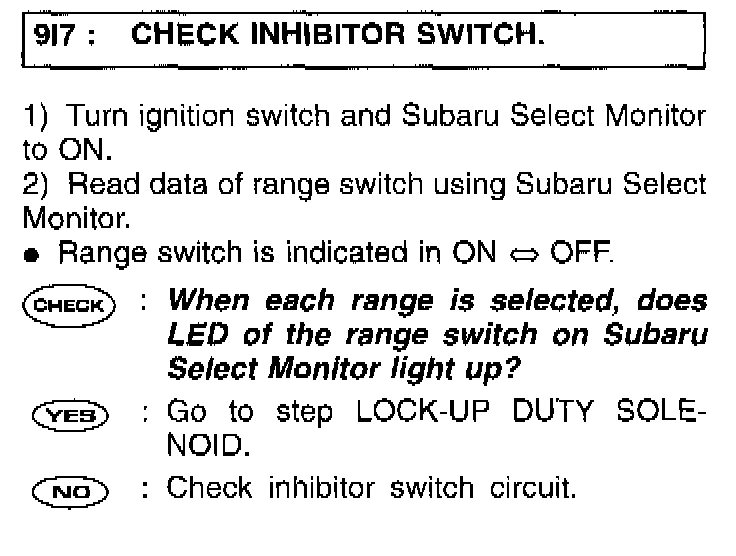

9I7 CHECK INHIBITOR SWITCH.
