Removal and Installation
1.
Disconnect battery ground cable.
2.

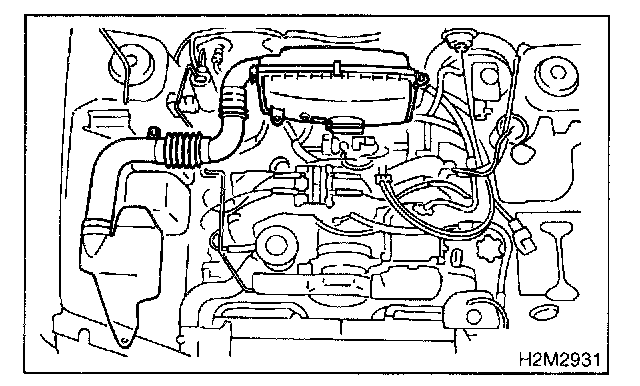

Remove air cleaner case and air intake duct.

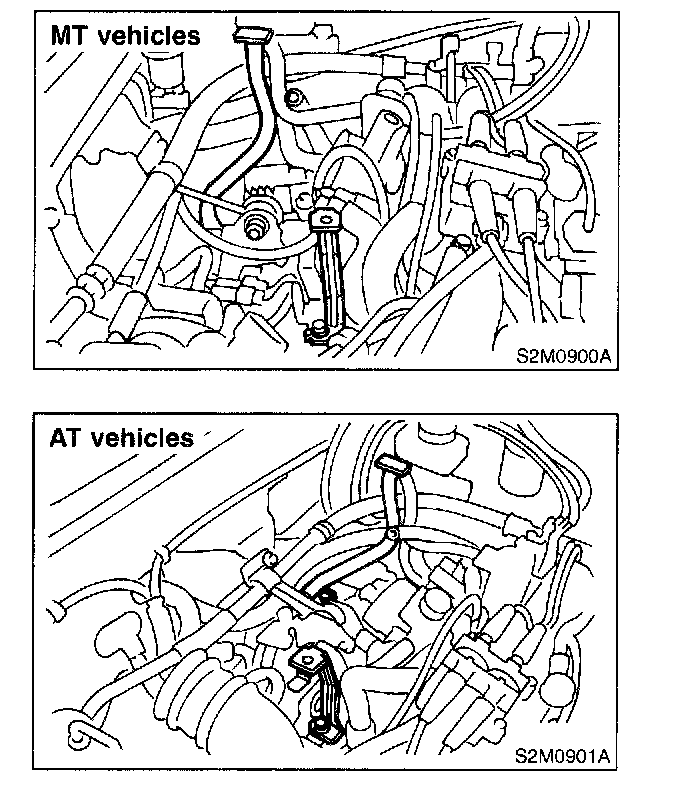

MT / AT Vehicles:
3.
Remove air intake chamber stay.
4.
Disconnect connector and terminal from starter.
5.
Remove starter from transmission.
6.
Installation is in the reverse order of removal.
Tightening torque:
50 ± 4 N.m (5.1 ± 0.4 kg.m, 37 ± 2.9 ft.lb)
