Extension Section
EXTENSION SECTION NOTE: When installing new oil seal into extension case, press it with ST. ST 498057300 INSTALLER
1)

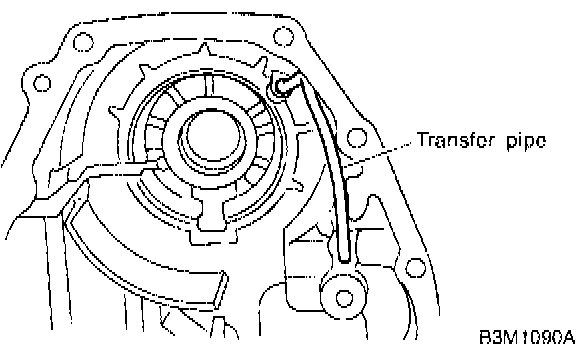

Install the transfer pipe to extension case.
2)

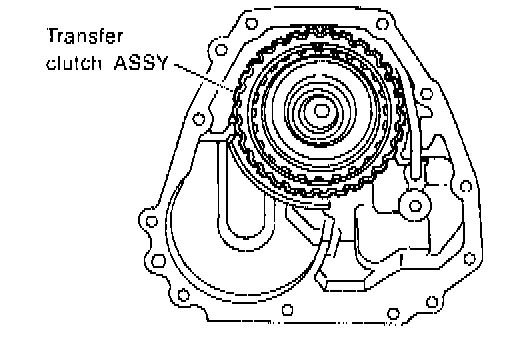

Install the transfer clutch assembly to the case.
CAUTION: Be careful not to damage the seal rings.
NOTE: Insert the clutch assembly fully into position until the bearing shoulder bottoms.
