Separation of Each Section

SEPARATION OF EACH SECTION

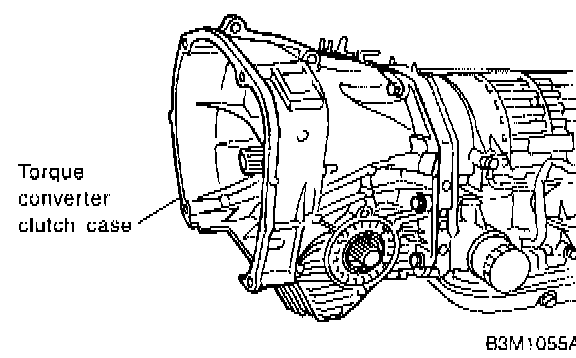

1) Separation of torque converter clutch case and transmission case sections

CAUTION:
- Be careful not to damage the oil seal and bushing inside the torque converter clutch case by the oil pump cover.
- Be careful not to lose the rubber seal.

NOTE: Separate these cases while tapping lightly on the housing.

2) Separation of transmission case and extension sections

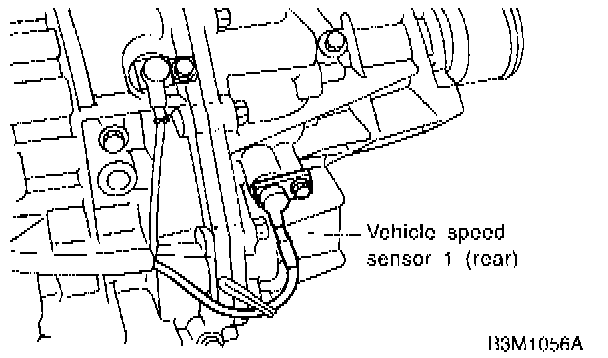

1. Remove vehicle speed sensor 1 (rear).

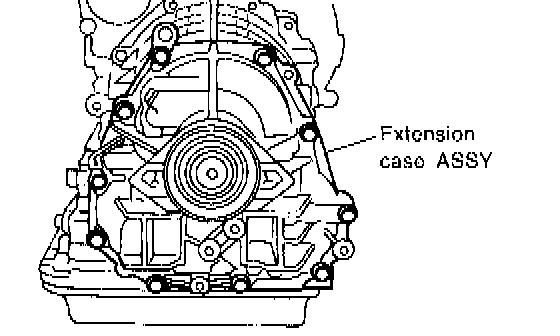

2. Separation of transmission case and extension case sections
