Rear Seat

REMOVAL AND INSTALLATION

1. CUSHION
1. Remove bolts securing hinges (located at front of cushion) to body.

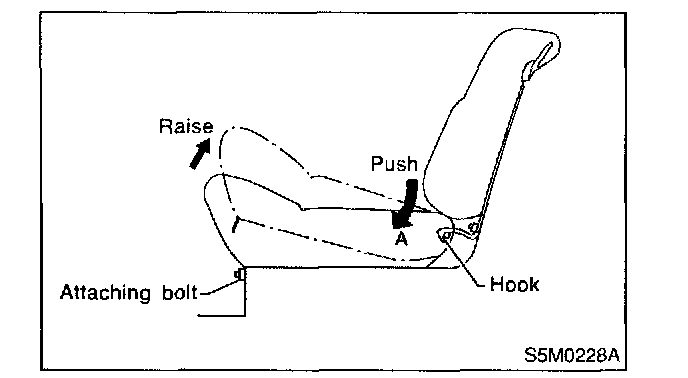

2. Slightly raise front of cushion while pushing down on cushion in the direction of "A". With cushion held in that position, move it forward until it is unhooked.
3. Installation is in the reverse order of removal.

2. SIDE PAD
1. Remove cushion.

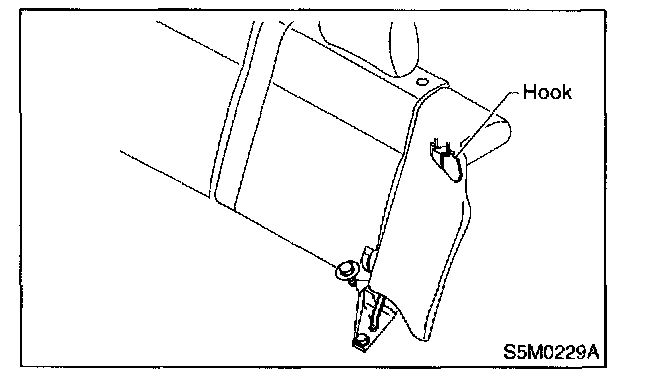

2. Remove bolt and then release hook.




3. Detach side pad.
4. Installation is in the reverse order of removal.

3. BACK REST
1. Remove cushion.
2. Remove side pad.

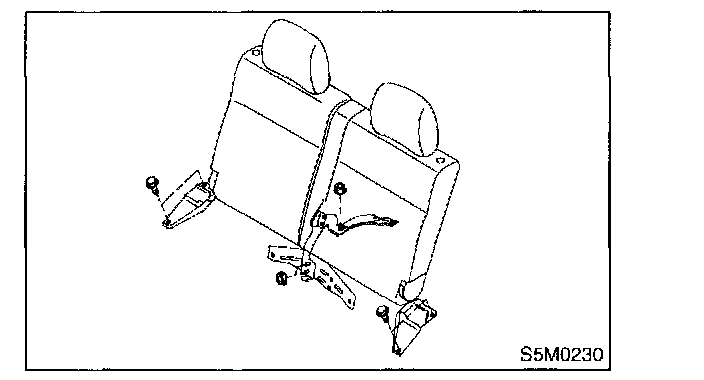

3. Remove bolts and nuts.




4. Detach backrest.
5. Installation is in the reverse order of removal.

CAUTION:
- Before installing seat, ensure that seat belt is placed on cushion.
- Confirm that winding of three-point type seat belt can operate regularly.

Rear Seat:

Torque specification
