Garage Jack






WARNING:
- Never get under the vehicle while it is supported by a jack.
- When jacking up the vehicle, place chocks to hold wheels.
- After jacking up the vehicle with garage jack, be sure to support the vehicle with stands for safety.

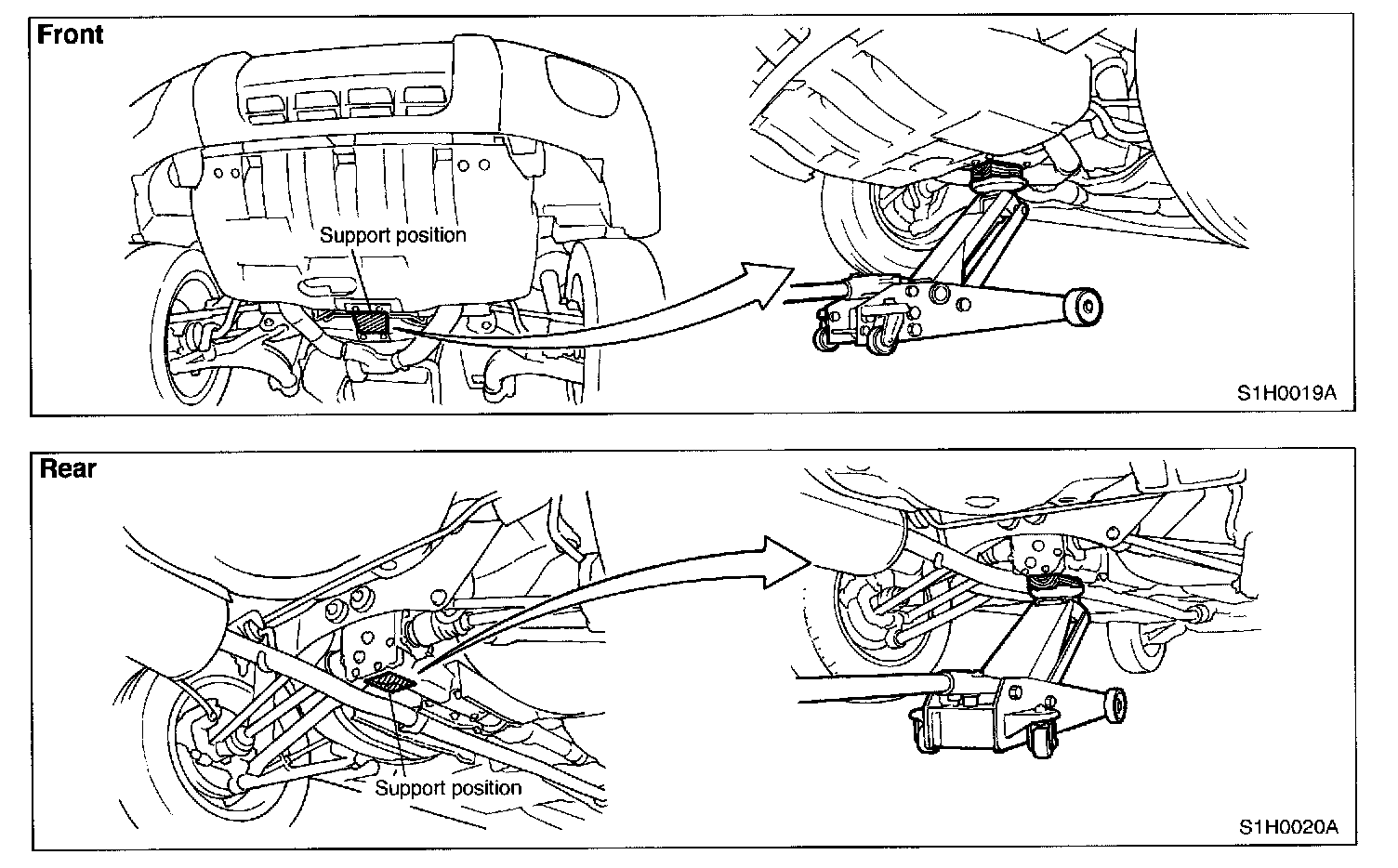

- Be sure to lift vehicle at the same four positions as those for pantograph jack.

CAUTION:
Be sure to lift, tow and tie-down the vehicle at the designated positions.
