Removal and Installation
1.
Disconnect battery ground cable.
2.

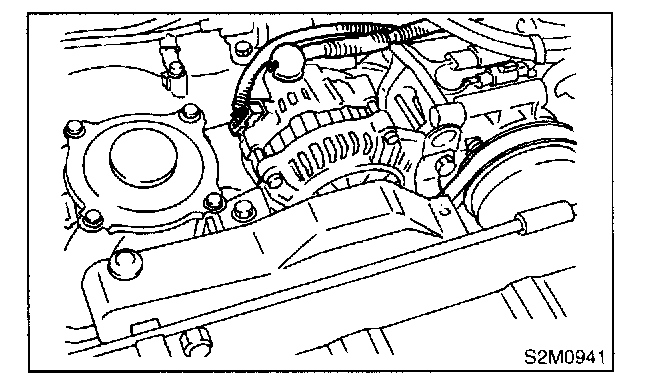

Disconnect connector and terminal from generator.
3.

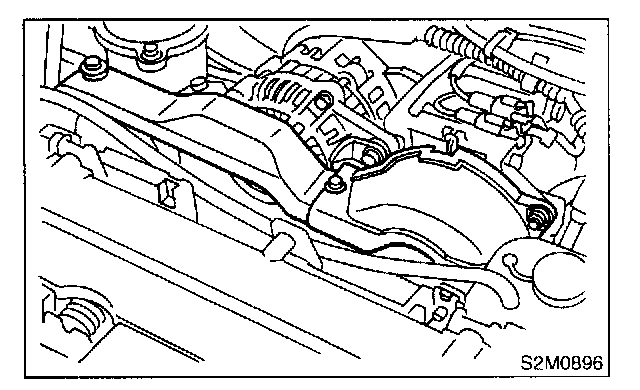

Remove V-belt cover.
4.
Remove front side V-belt.
5.

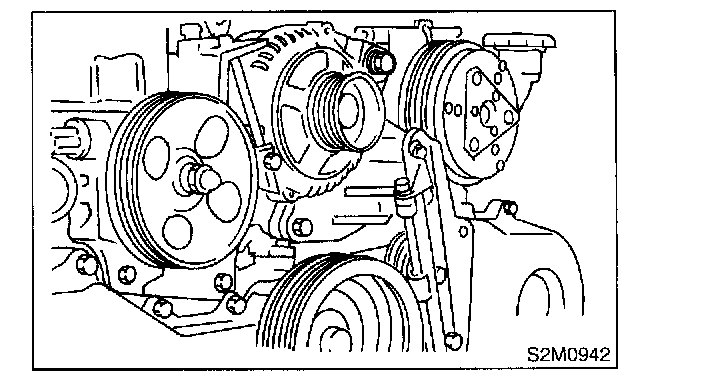

Remove bolts which install generator onto bracket.
6.
Installation is in the reverse order of removal.
CAUTION: Check and adjust V-belt tension.
