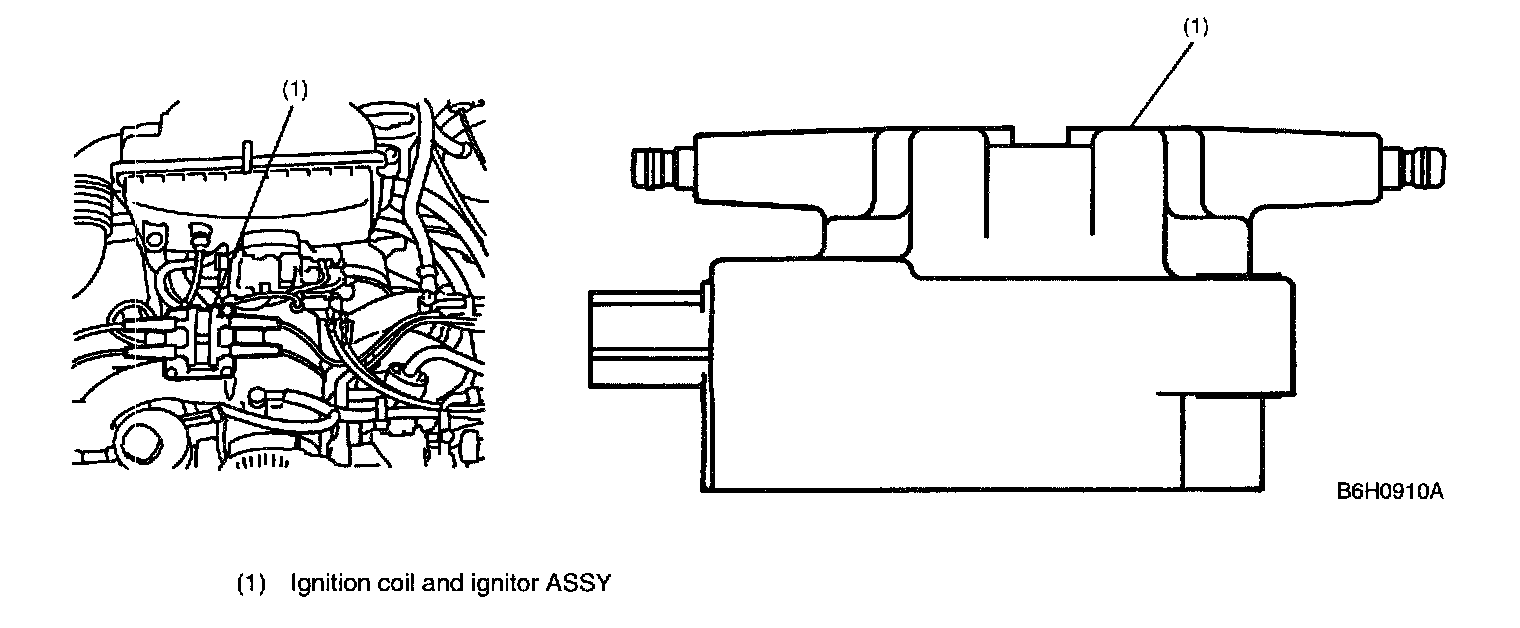

Ignition Coil: Locations
The ignition coil is of the type that is made integral with an ignitor.

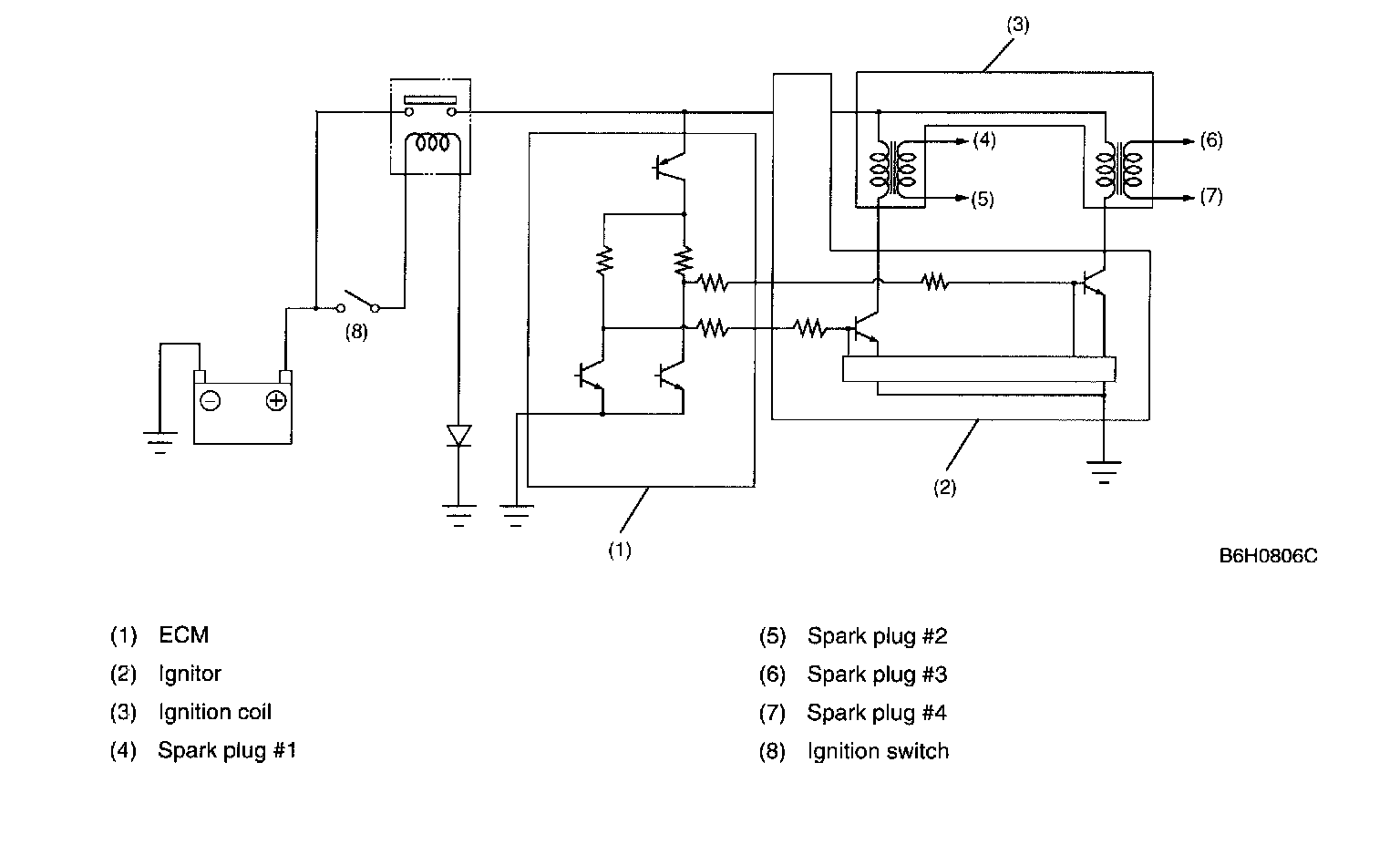

The ignition system is of a
2-cylinder simultaneous ignition design. In response to the signal from the ECM, the ignitor supplies another signal to the ignition coil to ignite a pair of cylinders
#1 and
#2 or
#3 and
#4 simultaneously.
