Ignition Coil: Service and Repair

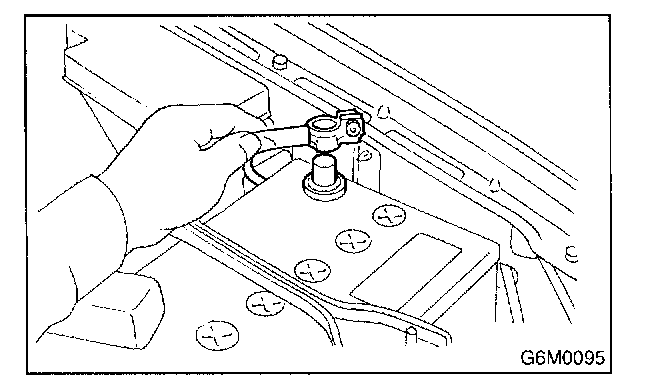

1. Disconnect battery ground cable.
2. Disconnect spark plug cords from ignition coil and ignitor assembly.

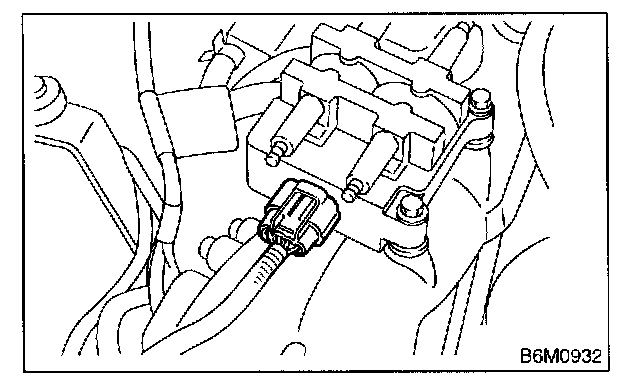

3. Disconnect connector from ignition coil and ignitor assembly.

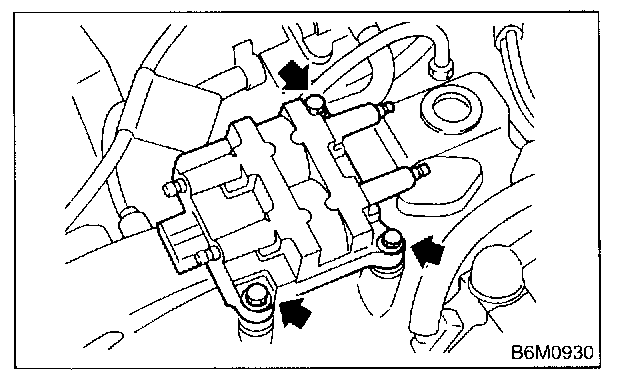

4. Remove ignition coil and ignitor assembly.
5. Installation is in the reverse order of removal.

CAUTION: Be sure to connect wires to their proper positions. Failure to do so will damage unit.
