Grille: Service and Repair

Removal and Installation

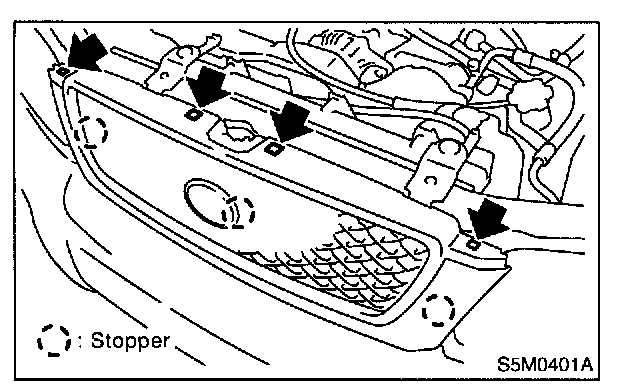

1. Remove the four upper clips from body panel. To facilitate removal, press portion shown in the figure using screwdriver while lightly pulling front grille.
2. Install in the reverse order of removal.

NOTE: Attach all clips to grille. Align them with clip hole in body and push them into place.
