Cowl: Service and Repair

Removal and Installation




1. Remove cowl panel side.
2. Open front hood.
3. Remove wiper arms.

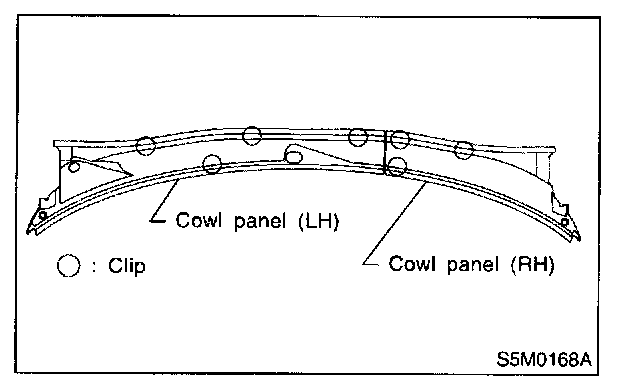

4. Lift cowl panel (RH) and then lift cowl panel (LH).
5. Install in the reverse order of removal.
