Vehicle Lifting: Locations

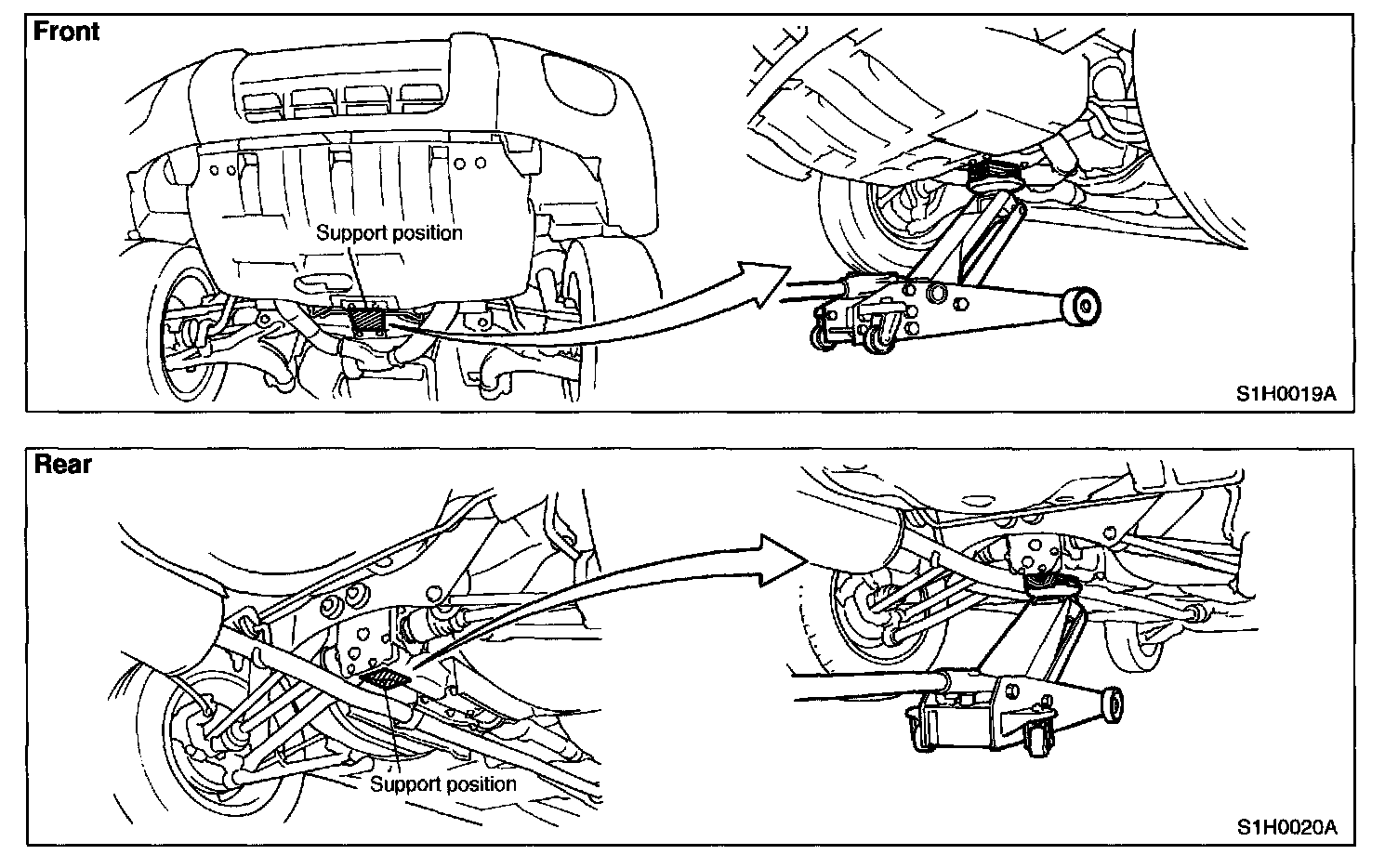

GARAGE JACK





WARNING:
- Never get under the vehicle while it is supported by a jack
- When jacking up the vehicle, place chocks to hold wheels.
- After jacking up the vehicle with garage jack, be sure to support the vehicle with stands for safety.
- Be sure to lift vehicle at the same four positions as those for pantograph jack.

CAUTION: Be sure to lift, tow and tie-down the vehicle at the designated positions.

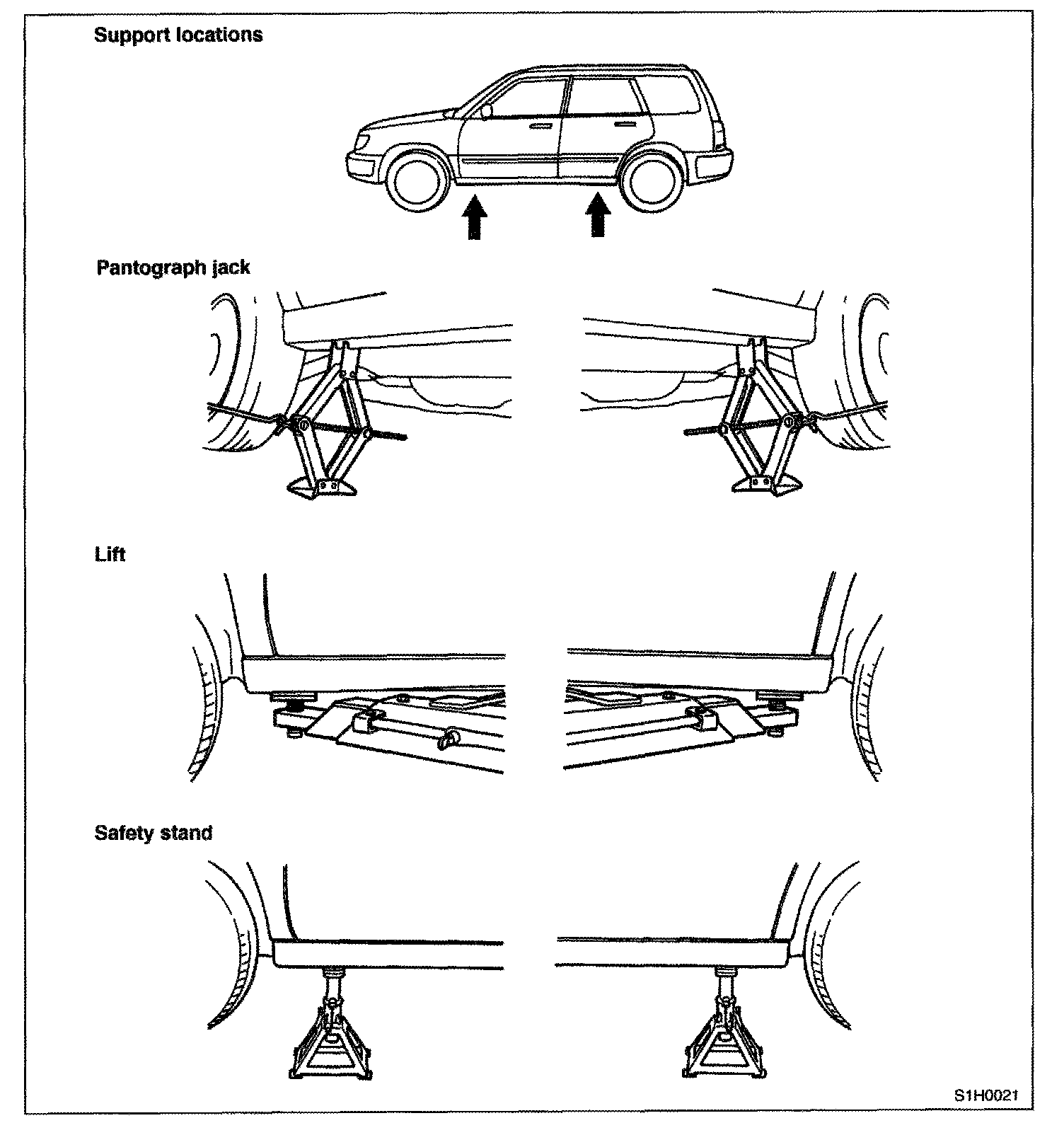

PANTOGRAPH JACK, SAFETY STAND, AND LIFT





WARNING:
- Never get under the vehicle while it is supported only by the jack. Always use safety stands to support body when you have to get under the car.
- Block the wheels diagonally by wheel chocks.

CAUTION: Make sure the jack is set at the correct position on the flange of side sill.
