Fluid Line/Hose: Service and Repair

A: REMOVAL

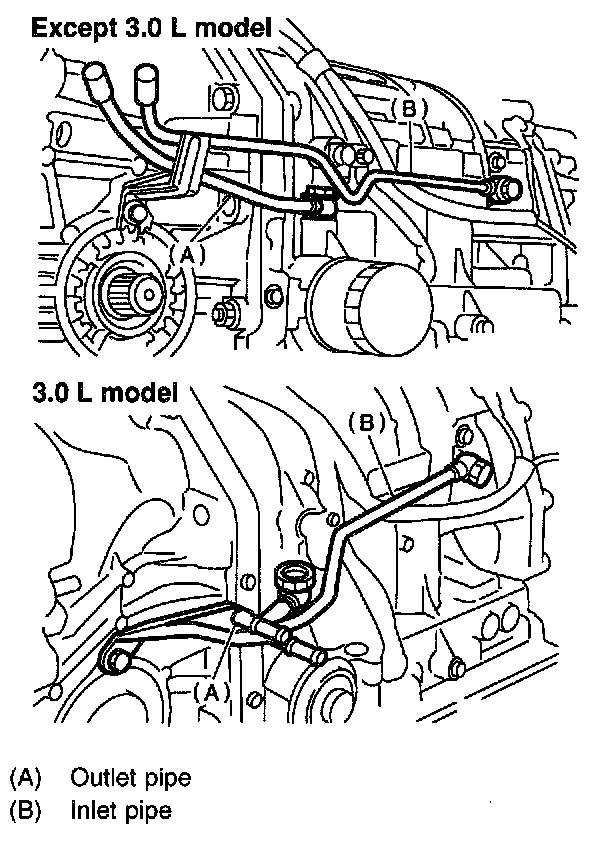

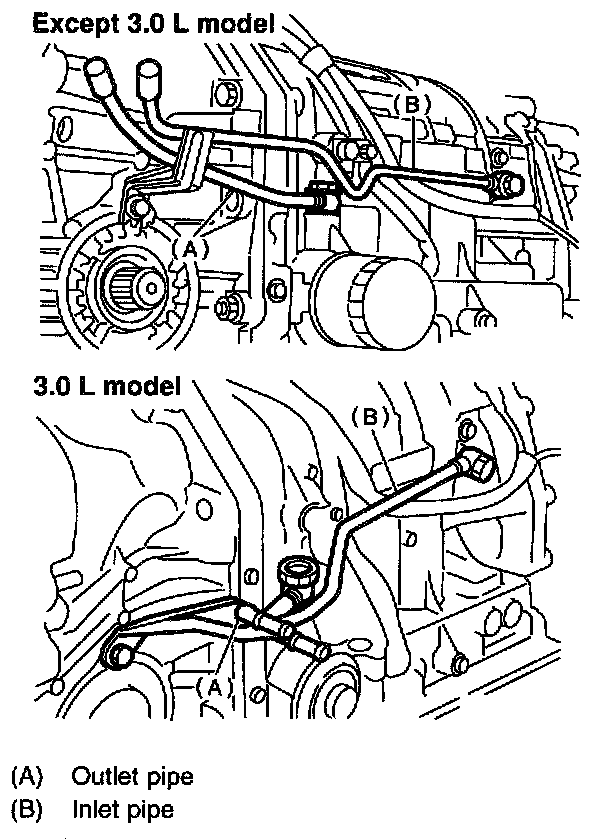

1) Remove oil charger pipe. Refer to Dipstick Tube.
2) Remove the oil cooler inlet and outlet pipes.

CAUTION: When removing outlet pipes, be careful not to lose balls and springs used with retaining screws.

B: INSTALLATION
1) Insert oil cooler outlet ball and spring.
2) Install the oil cooler outlet pipe with gaskets.

CAUTION: Be sure to use a new gasket.

Tightening torque: 44 Nm (4.5 kgf-cm, 32.5 ft. lbs.)

3) install the oil cooler inlet pipe with gaskets.

CAUTION: Be sure to use a new gasket.

Tightening torque: 25 Nm (2.5 kgf-cm, 18.1 ft. lbs.)





4) Install oil charger pipe with O-ring.

C: INSPECTION
Make sure the oil cooler pipe is not deformed or otherwise damaged.
