Transmission and Drivetrain: Locations

ELECTRICAL COMPONENT LOCATIONS

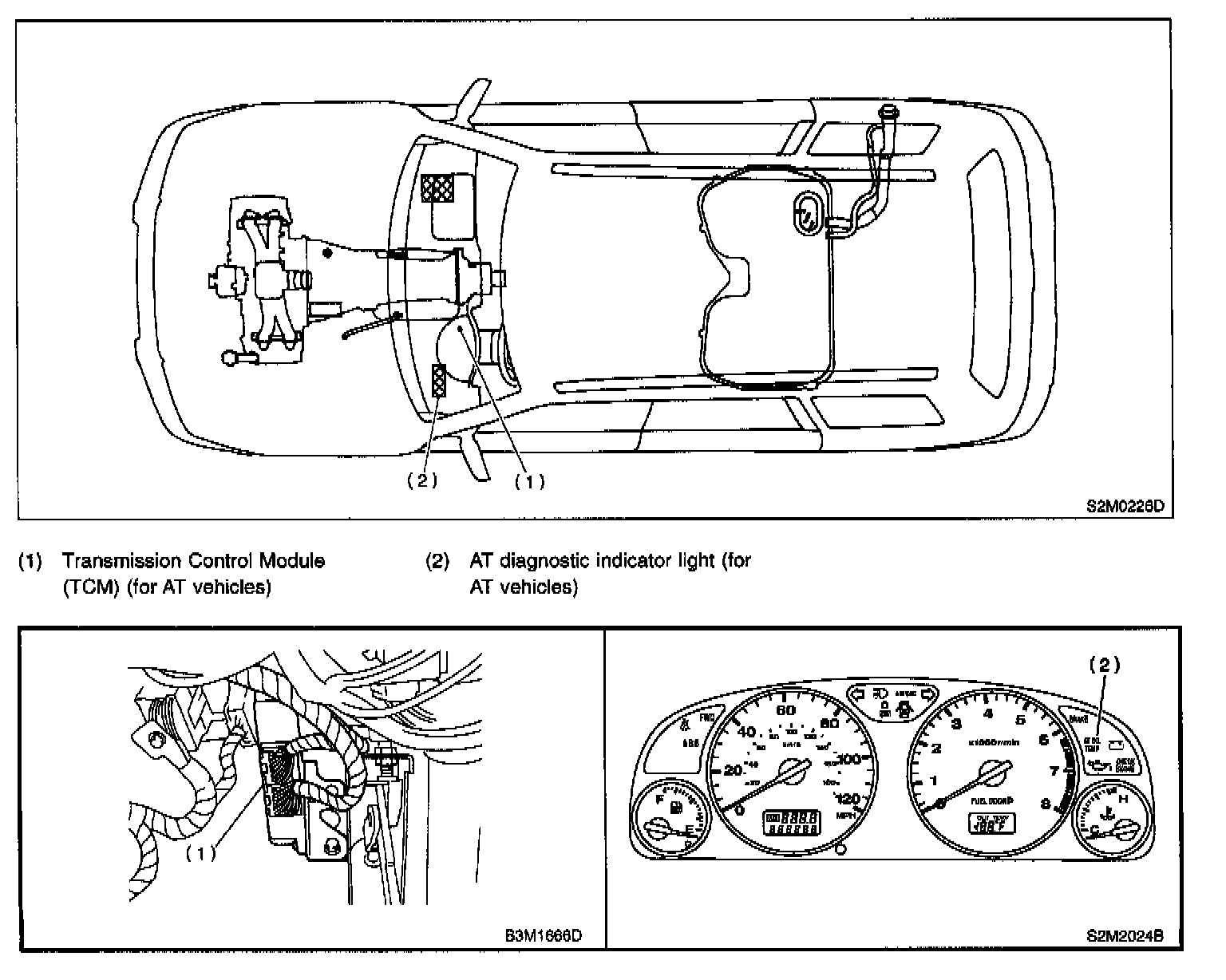

MODULE

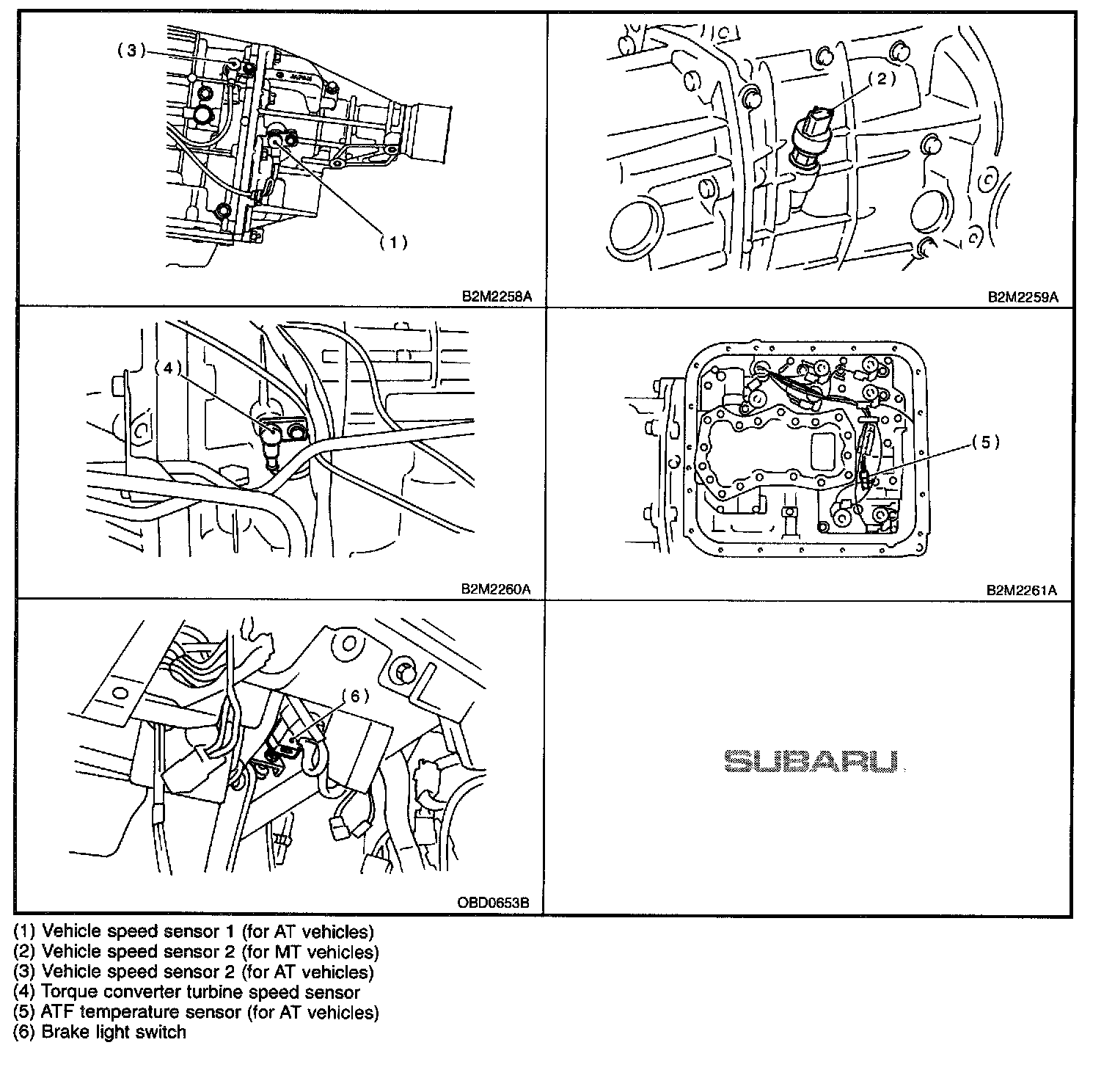

SENSORS

SOLENOID VALVE AND RELAY




- For AT vehicles




- For MT vehicles
