Front Bumper: Service and Repair

Removal and Installation

1. Disconnect the ground cable from the battery.
2. Remove front fog light.
3. Remove the front grille.

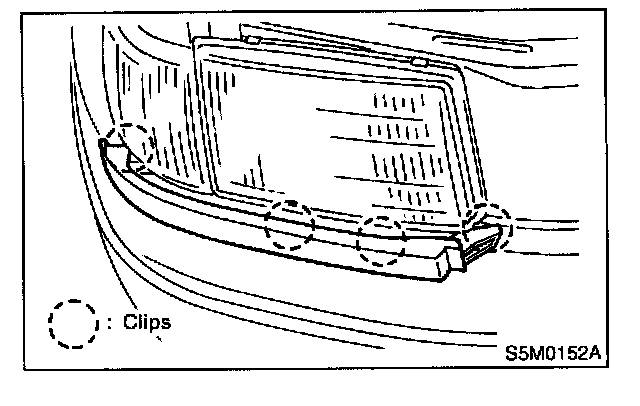

4. Remove the extension of both sides.

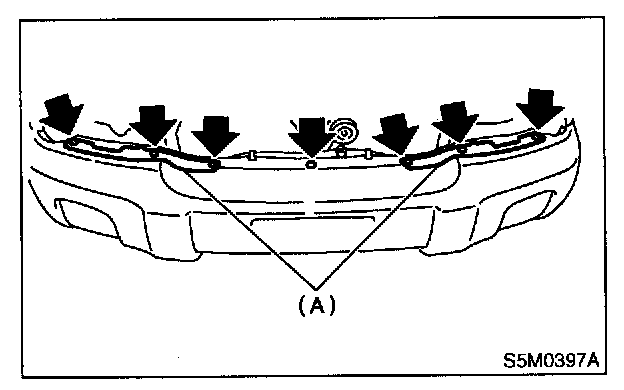

5. Remove the seven clips and then detach plate (A).
6. Remove under cover.

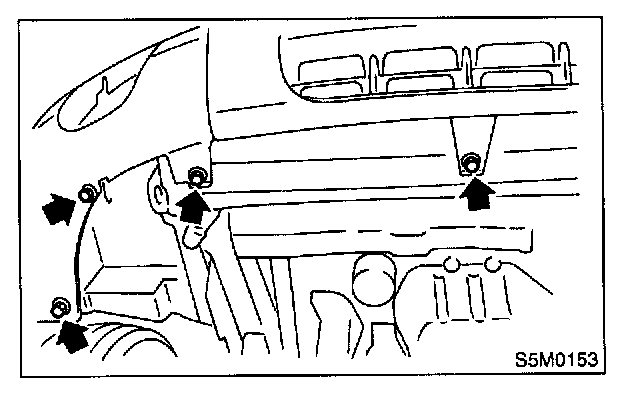

7. Remove the seven clips from under side of bumper.

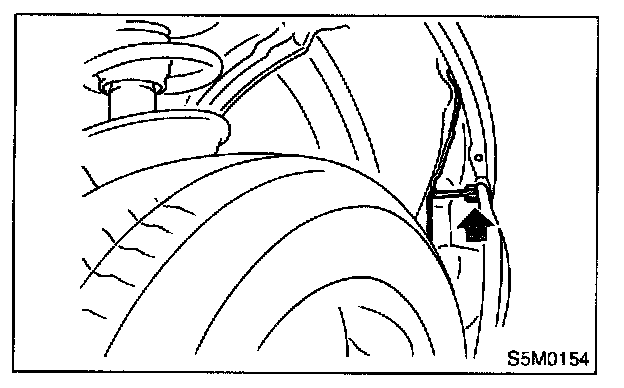

8. Turn over the front mud guard of the front portion and then remove bolt.




9. Remove bumper face and E/A foam.

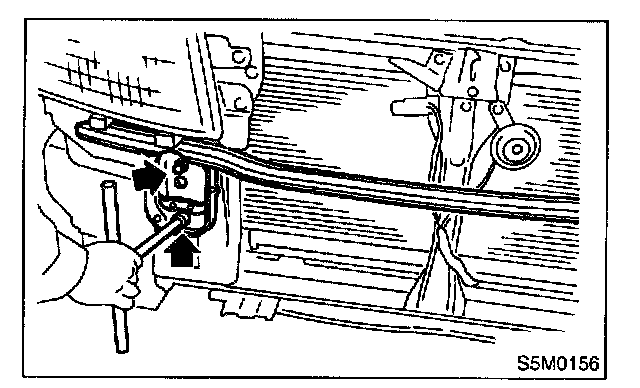

10. Remove the four bolts and then detach the back beam.




11. Remove the four bolts and then detach the beam upper.
12. Install in the reverse order of removal.

CAUTION:
- Be extremely careful to prevent scratches on bumper face as it is made of resin.
- Be careful not to scratch the body when removing or installing the bumper.
