System Diagram

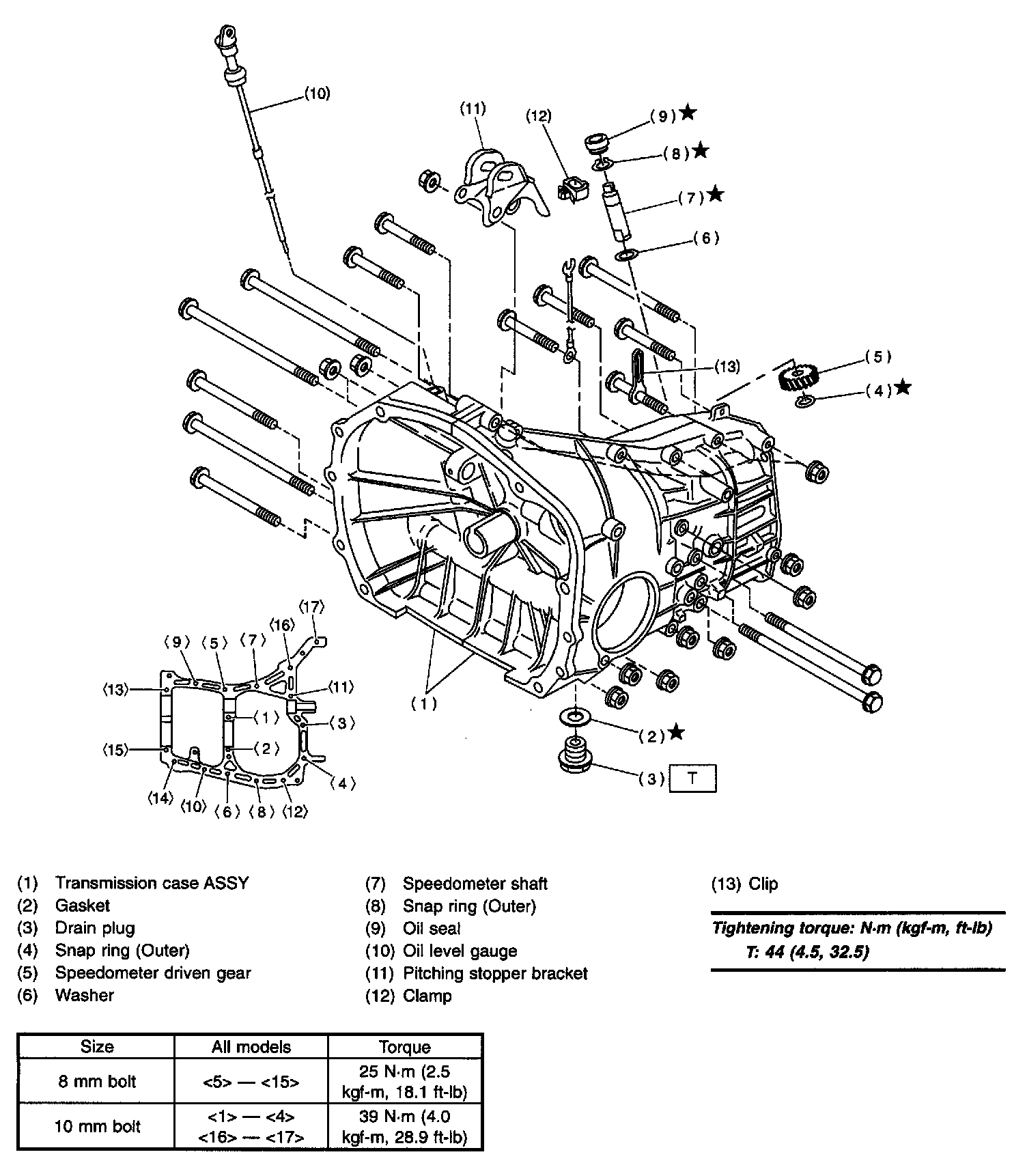

1. TRANSMISSION CASE

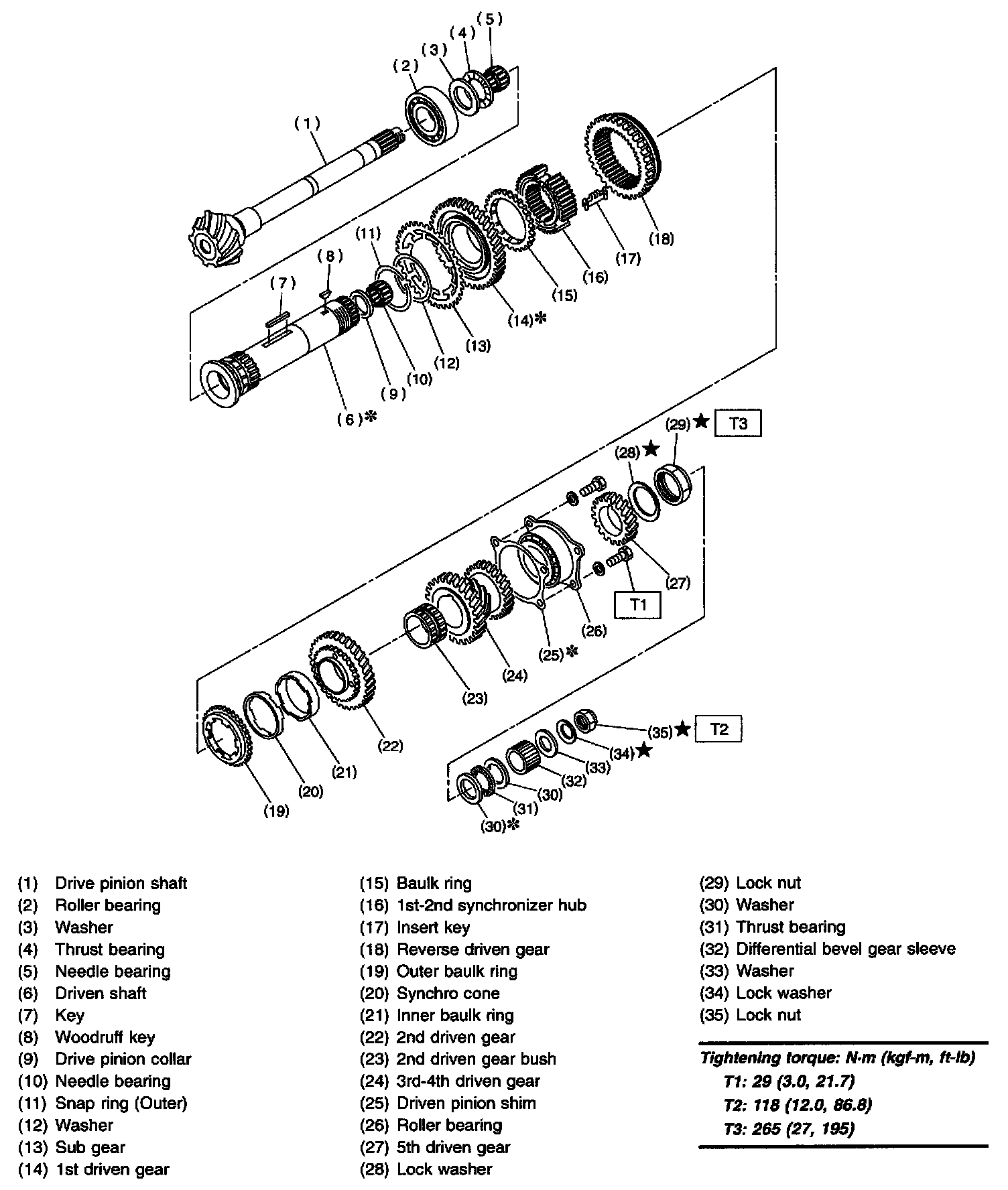

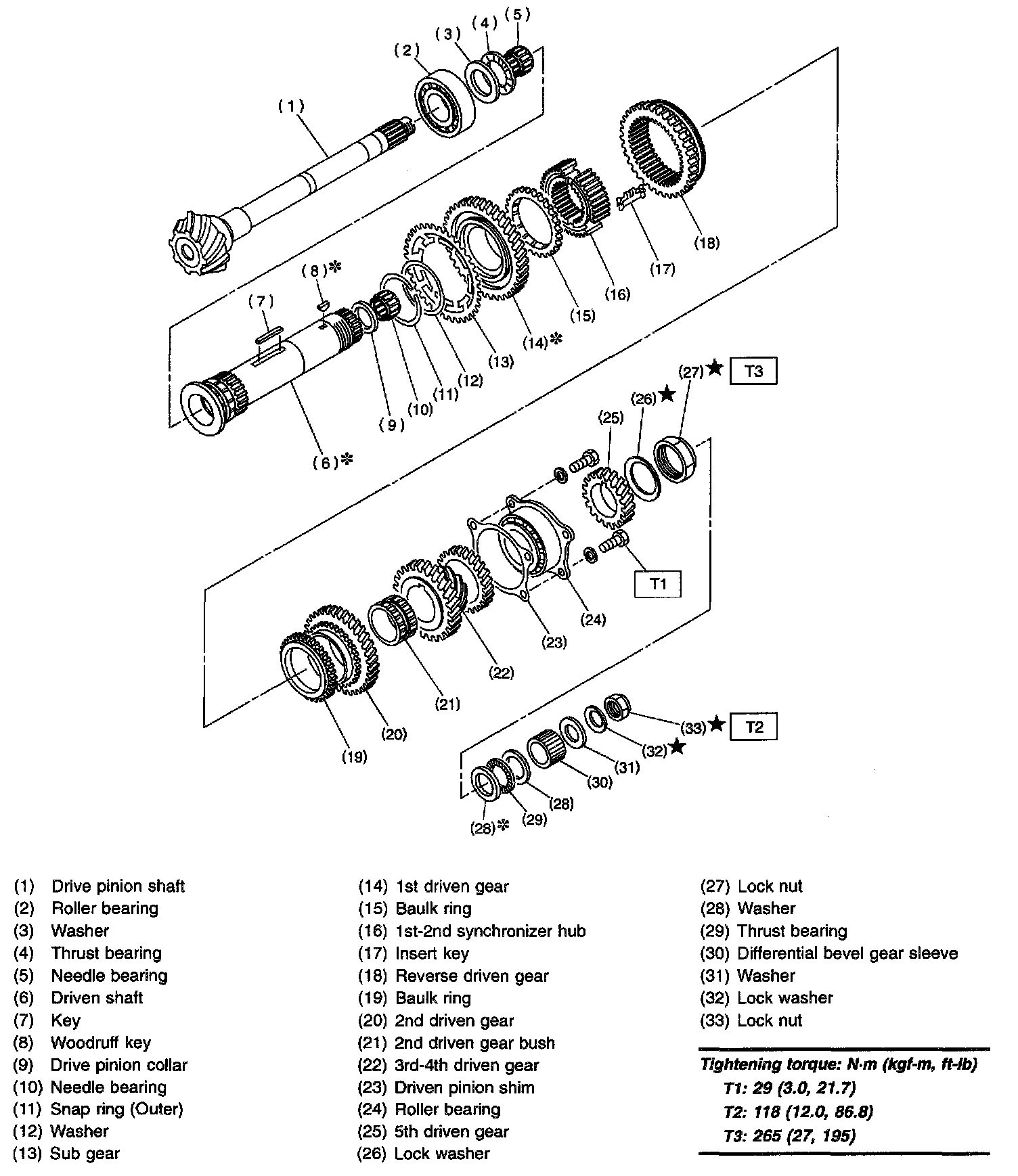

2. DRIVE PINION ASSEMBLY





^ 2200 cc Model





^ 2500 cc Model

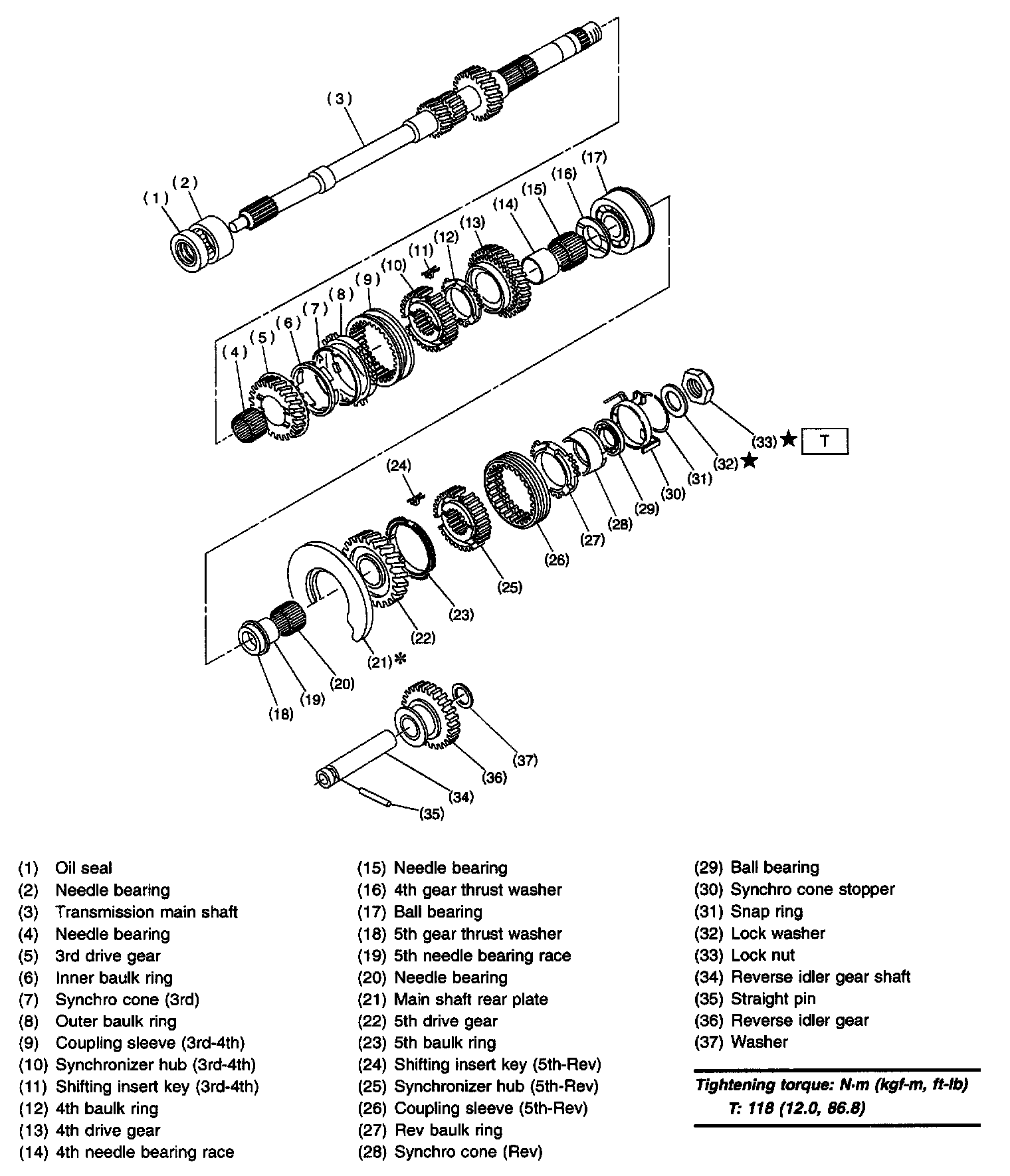

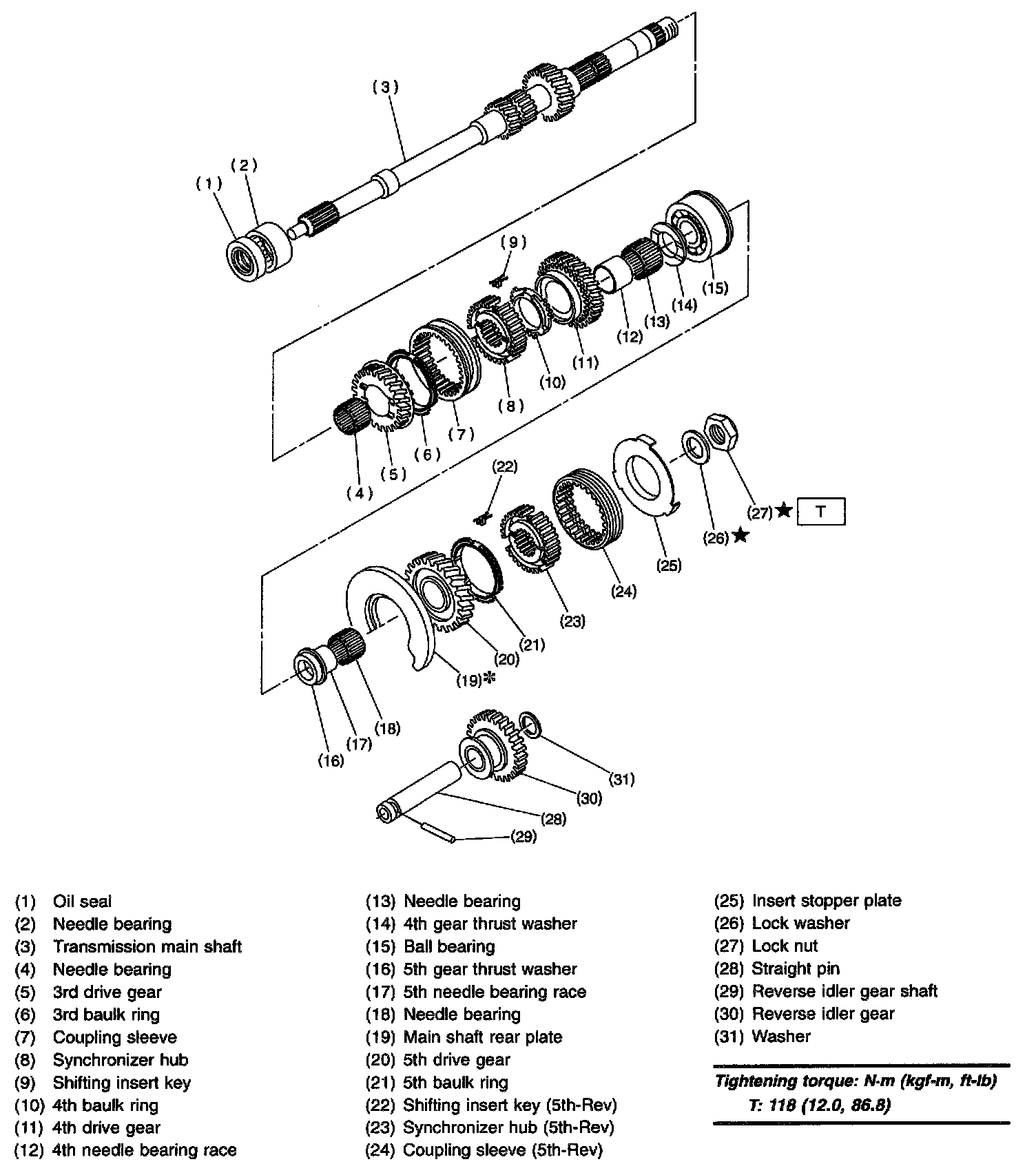

3. MAIN SHAFT ASSEMBLY





^ 2200 cc Model





^ 2500 cc Model





4. SHIFTER FORK AND SHIFTER ROD

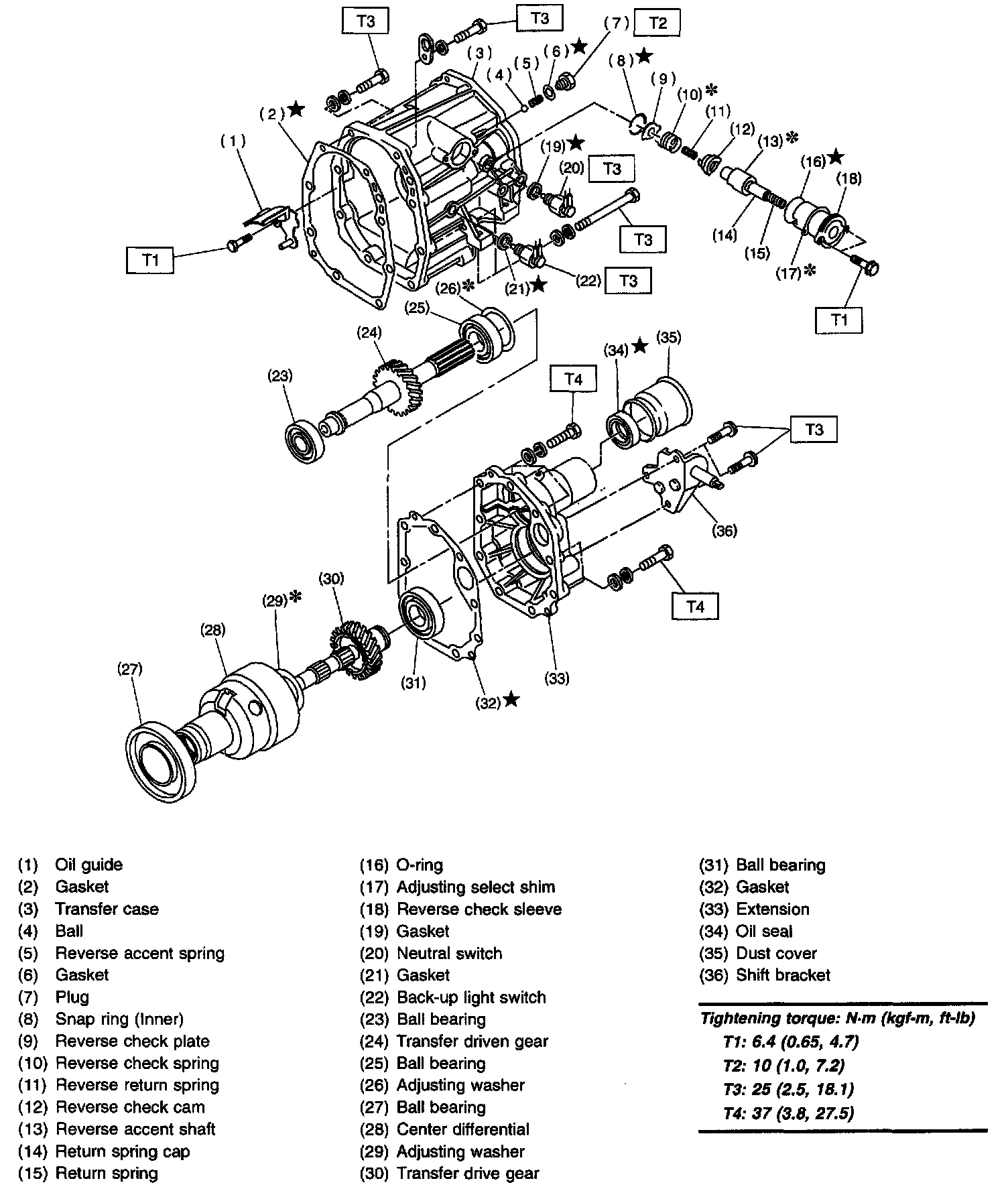

5. TRANSFER CASE AND EXTENSION





6. FRONT DIFFERENTIAL





7. TRANSMISSION MOUNTING
