Rear Door Latch: Service and Repair

Rear Door Latch Assembly

REMOVAL
1. Disconnect the ground terminal from battery.
2. Remove the rear door trim.
3. Remove the sealing cover.
4. Remove the rear inner remote.

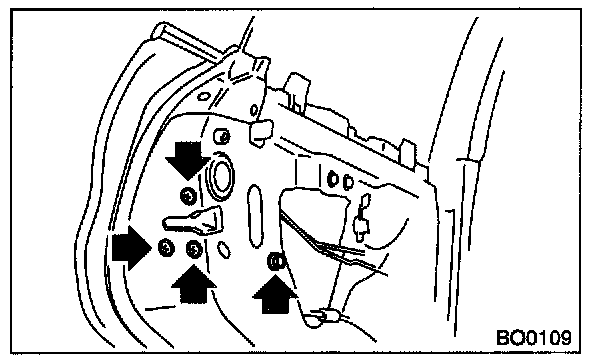

5. Remove the three screws and bolt.
6. Disconnect the connector, and then remove the rear door latch assembly.

INSTALLATION
Install in the reverse order of removal.

CAUTION: Make sure the lock works properly after installation.

INSPECTION
1. Make sure the rod is not deformed.
2. Make sure the lever and rod work smoothly.
