Front Wiper Motor and Link

Front Wiper Motor and Link

REMOVAL
1. Disconnect the ground terminal from battery.

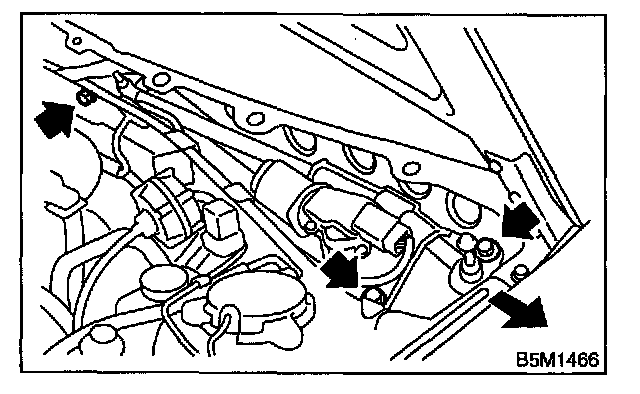

2. Remove the cowl panel.
3. Disconnect the connector of motor.




4. Loosen the bolts and nuts to remove wiper link.

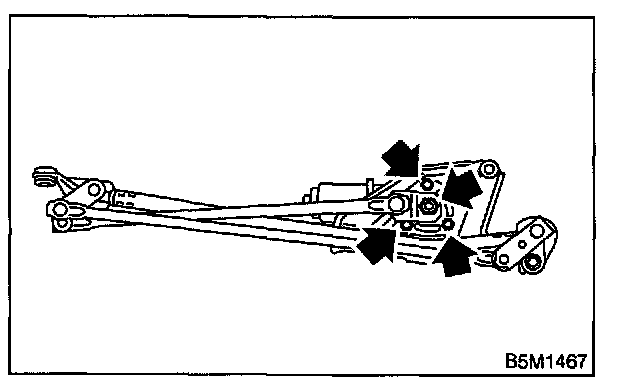

5. Loosen the bolts and nuts to remove motor.

INSTALLATION
1. Connect the battery ground terminal to battery.
2. To confirm that the motor is at auto stop position, connect the harness to motor and turn the wipe switch ON/OFF once.
3. Disconnect the ground terminal from battery.

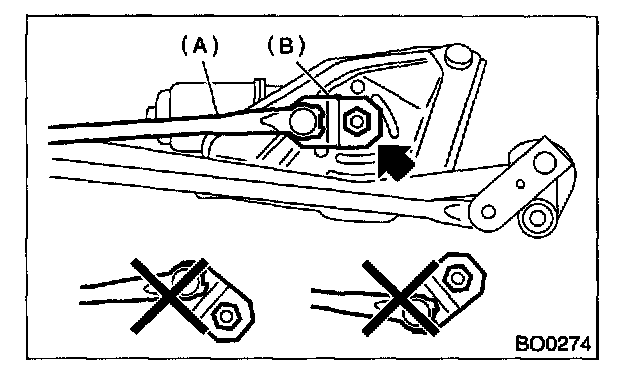

4. Tighten the nut where rod (A) and link plate (B) is aligned in a straight line.
5. Install in the reverse order of removal.
