Outer Mirror Assembly
Outer Mirror AssemblyREMOVAL
1. Disconnect the ground terminal from battery.
2. Remove the door trim.

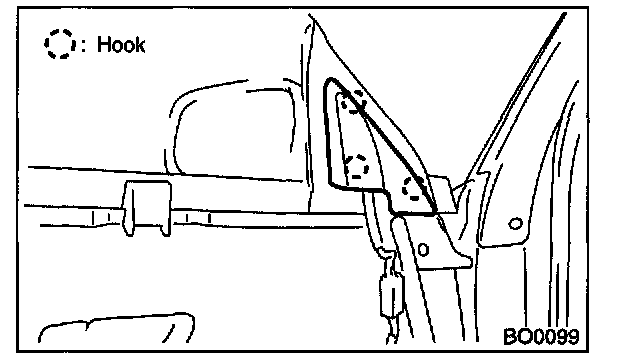

3. Remove the mirror gusset cover.
4. Disconnect the mirror connector.

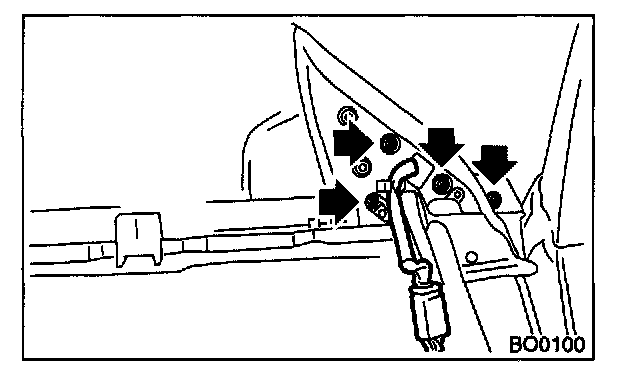

5. Loosen the screws to remove mirror assembly.
INSTALLATION
Install in the reverse order of removal.
