With Subaru Select Monitor

READ DIAGNOSTIC TROUBLE CODE (DTC)

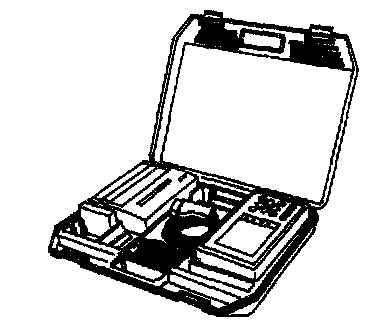

1) Prepare the Subaru Select Monitor kit.
2) Connect the diagnosis cable to Subaru Select Monitor.

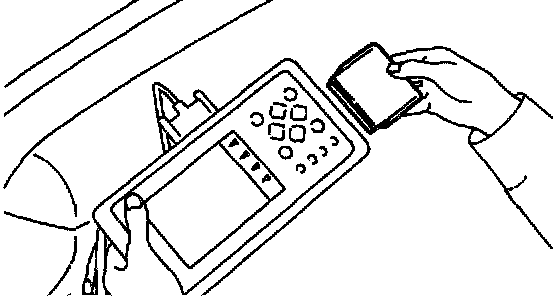

3) Insert the cartridge into Subaru Select Monitor.
4) Connect the Subaru Select Monitor to data link connector.

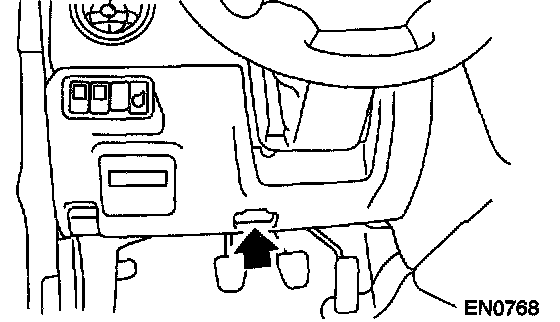

1. Data link connector is located in the lower portion of the instrument panel (on the driver's side).
2. Connect the diagnosis cable to data link connector.

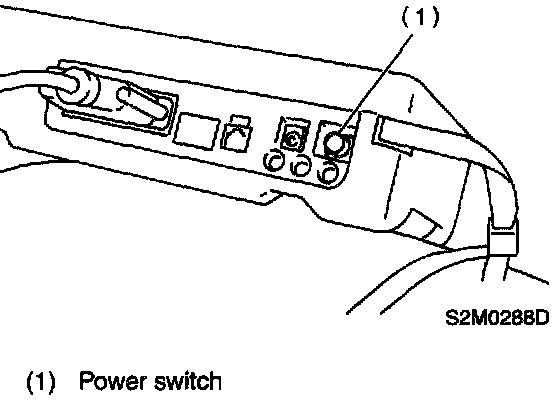

5) Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
6) On the <
> display screen, select the {Each System Check} and press the [YES] key.
7) On the <> display screen, select the {Brake Control System} and press the [YES] key.
8) Press the [YES] key after displayed the information of engine type.
9) On the <> display screen, select the {Diagnostic Code(s) Display} and press the [YES] key.
10) On the <> display screen, select the {Current Diagnostic Code(s)} or {History Diagnostic Code(s)} and press the [YES] key.

NOTE:
^ For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
^ For detailed concerning Diagnostic Trouble Codes (DTC), refer to Trouble Code Descriptions.

READ CURRENT DATA
1) On the <
> display screen, select the {Each System Check} and press the <> key.
2) On the <> display screen, select the {Brake Control System} and press the <> key.
3) Press the <> key after displayed the information of ABS type.
4) On the <> display screen, select the {Current Data Display & Save} and press the <> key.
5) On the <> display screen, select the {Data Display} and press the <> key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.





^ A list of the support data is shown in the table.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
