Throttle Position Sensor: Service and Repair

REMOVAL

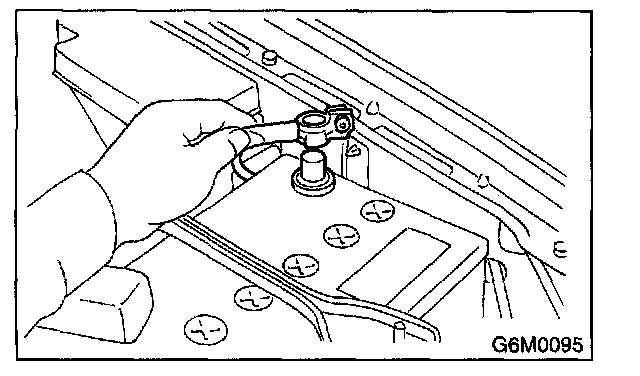

1. Disconnect the battery ground cable.

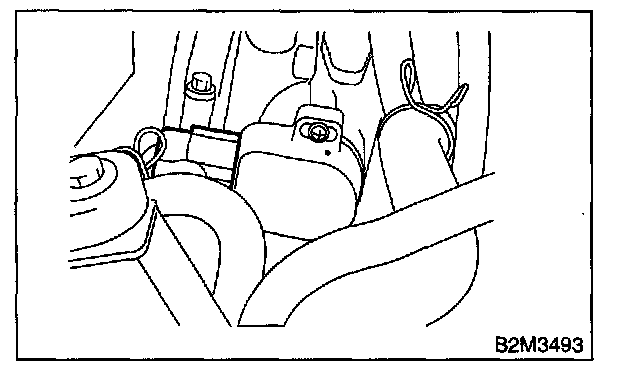

2. Disconnect the connector from the throttle position sensor.

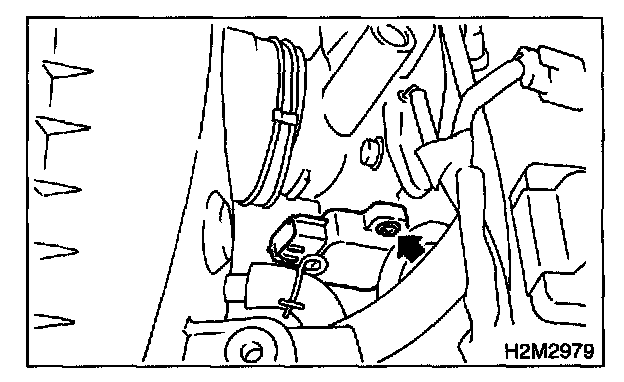

3. Remove the throttle position sensor holding screws, and remove it.

INSTALLATION
Install in the reverse order of removal.

Tightening Torque: 1.6 Nm (0.16 kgf-m, 1.2 ft. lbs)

CAUTION: When installing throttle position sensor, adjust to the specified data.
