Reverse Idler Gear
A: REMOVAL1. Remove the manual transmission assembly from vehicle.
2. Remove the back-up light switch and neutral position switch.
3. Remove the transfer case with extension case assembly.
4. Remove the transmission case.
5. Remove the drive pinion shaft assembly.
6. Remove the main shaft assembly.
7. Remove the differential assembly.
8. Remove the shifter forks and rods.

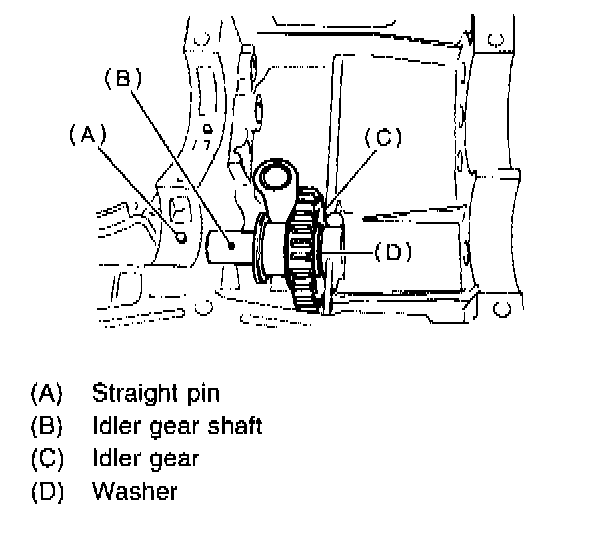

9. Pull out the straight pin, and remove the idler gear shaft, reverse idler gear and washer.
10. Remove the reverse shifter lever.
B: INSTALLATION

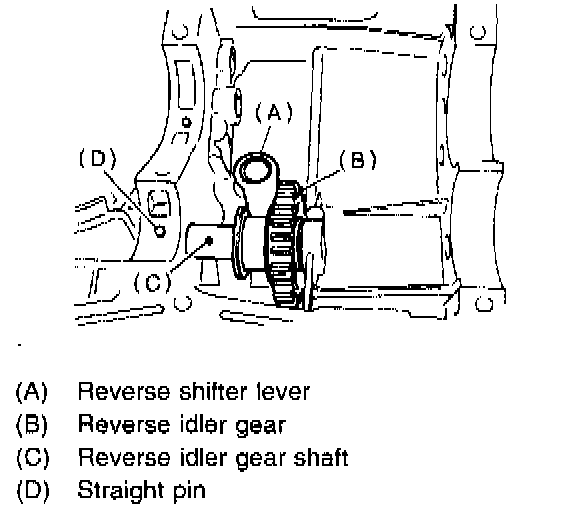

1. Install the reverse shifter lever, reverse idler gear and reverse idler gear shaft, and secure with straight pin.
NOTE: Be sure to install the reverse idler shaft from the rear side.
2. Inspect and adjust the clearance between reverse idler gear and transmission case wall.
3. Install the shifter forks and rods.
4. Install the differential assembly.
5. Install the main shaft assembly.
6. Install the drive pinion shaft assembly.
7. Install the transmission case.
8. Install the transfer case with extension case assembly.
9. Install the back-up light switch and neutral position switch.
10. Install the manual transmission assembly to vehicle.
C: INSPECTION

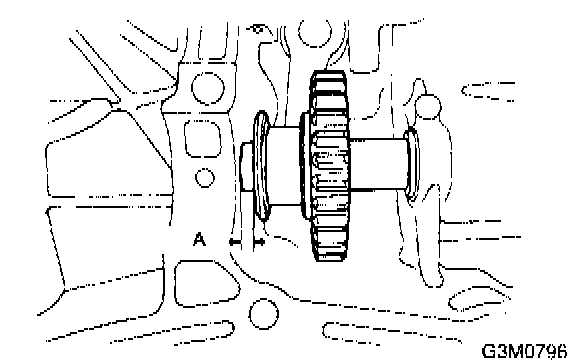

1. Move the reverse shifter rod toward the reverse side. Inspect the clearance between reverse idler gear and transmission case wall. If out of specification, select the appropriate reverse shifter lever and adjust.
Clearance A: 6.0 - 7.5 mm (0.236 - 0.295 inch)

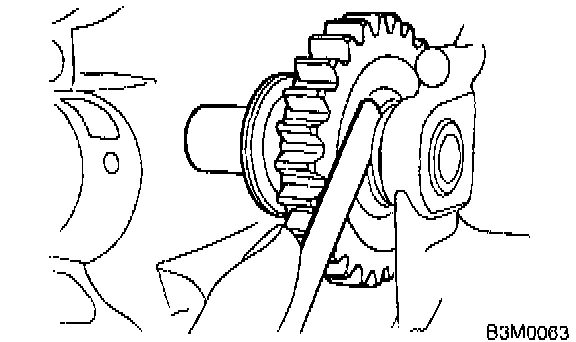

2. After installing a suitable reverse shifter lever, shift into neutral. Inspect the clearance between reverse idler gear and transmission case wall. If out of specification, select the appropriate washer and adjust.
Clearance: 0 - 0.5 mm (0 - 0.020 inch)
3. Check the reverse idler gear and shaft for damage. Replace if damaged.
D: ADJUSTMENT

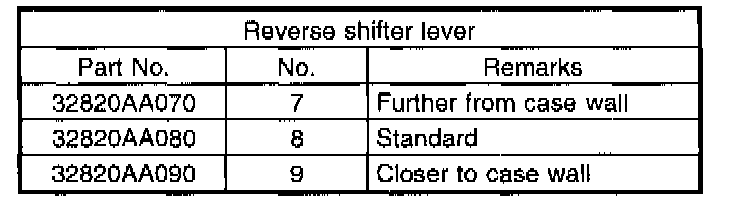

1. Select the appropriate reverse shifter lever from the table below, and adjust until the gap between the reverse idler gear and transmission case wall is within specification.
Clearance A: 6.0 - 7.5 mm (0.236 - 0.295 inch)

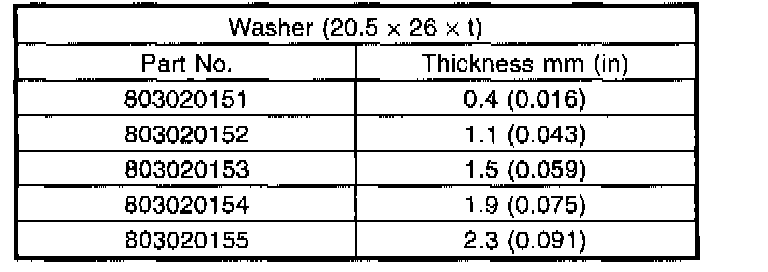

2. Select the appropriate washer from the table below, and adjust until the gap between the reverse idler gear and transmission case wall is within specification.
Clearance: 0 - 0.5 mm (0 - 0.020 inch)
