Speedometer Gear

A: REMOVAL
1. Remove the manual transmission assembly from vehicle.
2. Remove the back-up light switch and neutral position switch.
3. Remove the transfer case with extension case assembly.
4. Remove the transmission case.
5. Remove the vehicle speed sensor.

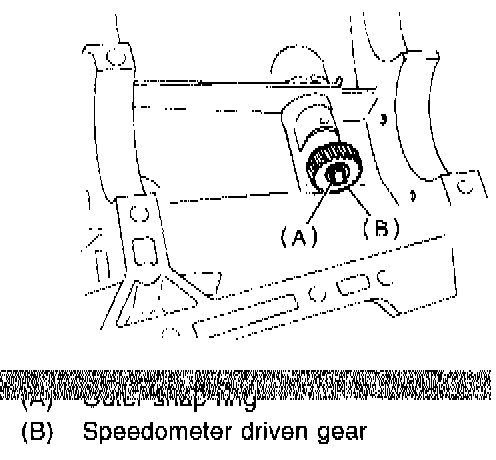

6. Remove the outer snap ring and pull out the speedometer driven gear. Next, remove the oil seal, speedometer shaft and washer.

B: INSTALLATION
1. Install the washer and speedometer shaft, and press fit oil seal with ST.

CAUTION: Use new oil seal, if it has been removed.

ST 899824100 or 499827000 PRESS
2. Install the vehicle speed sensor.





3. Install the speedometer driven gear and snap ring.

CAUTION: Use new snap ring, if it has been removed.

4. Install the transmission case.
5. Install the transfer case with extension case assembly.
6. Install the back-up light switch and neutral position switch.
7. Install the manual transmission assembly to vehicle.

C: INSPECTION
Check the speedometer gear, oil seal and speedometer shaft for damage. Replace if damaged.
