Rear Door: Adjustments

REAR DOOR PANEL

ADJUSTMENT

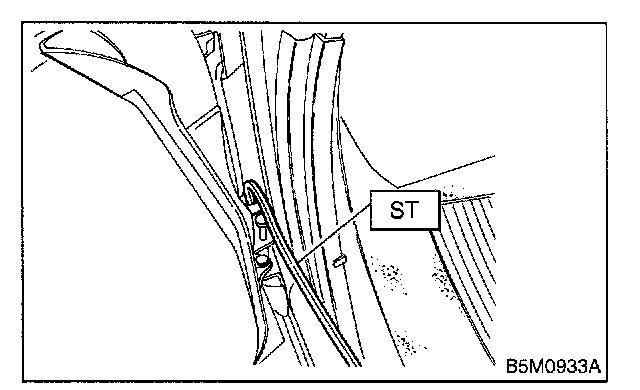

1. Using special tool, loosen body-side bolts of upper and lower hinges to align the position of rear door panel longitudinally and vertically.

ST 925610000 WRENCH






2. Loosen door-side bolts of upper and lower hinges to align the position of rear door panel vertically and laterally at front-end.

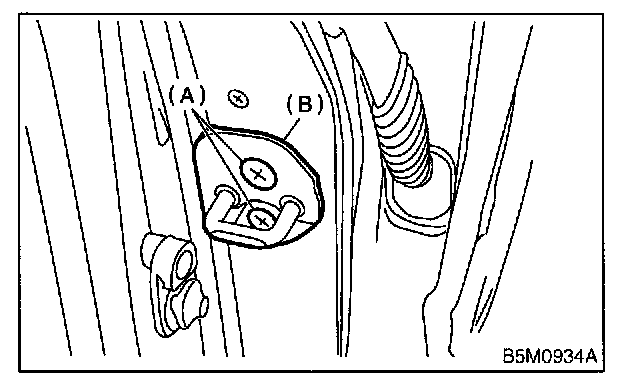

3. Loosen screw (A) and tap striker (B) using plastic hammer to adjust striker.






CAUTION: Do not use an impact wrench. The welding area on the striker nut plate is easily broken.
