Cruise Control Servo: Testing and Inspection

The content of this article/image reflects the changes Identified in
TSB # 18-101-06, 18-105-06
as of 02/13/2006, 04/17/06
and applies to 2001 - 2002 Legacy, Forester & Impreza Models

Actuator




INSPECTION

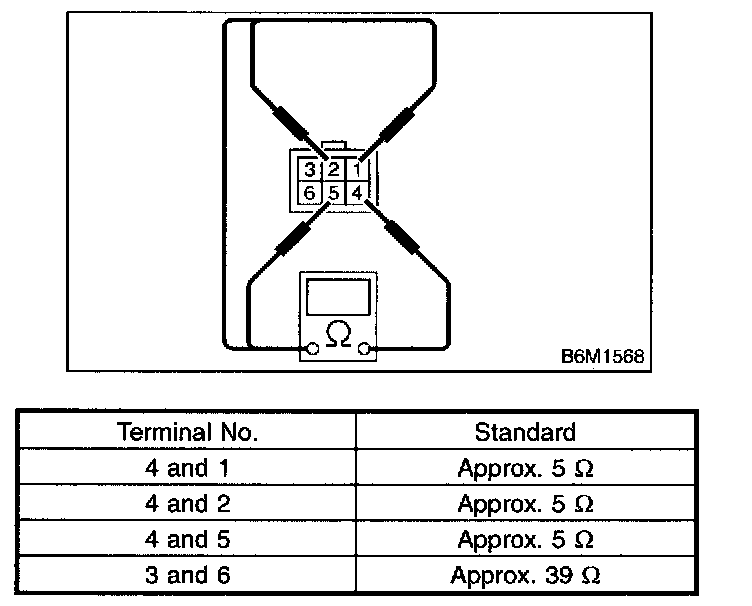

Measure cruise control actuator resistance.
If NG, replace cruise control actuator.
