Operation CHARM: Car repair manuals for everyone.

Diagnosis By Symptom

INSPECTION





1 of 6





2 of 6





3 of 6





4 of 6





5 of 6





6 of 6

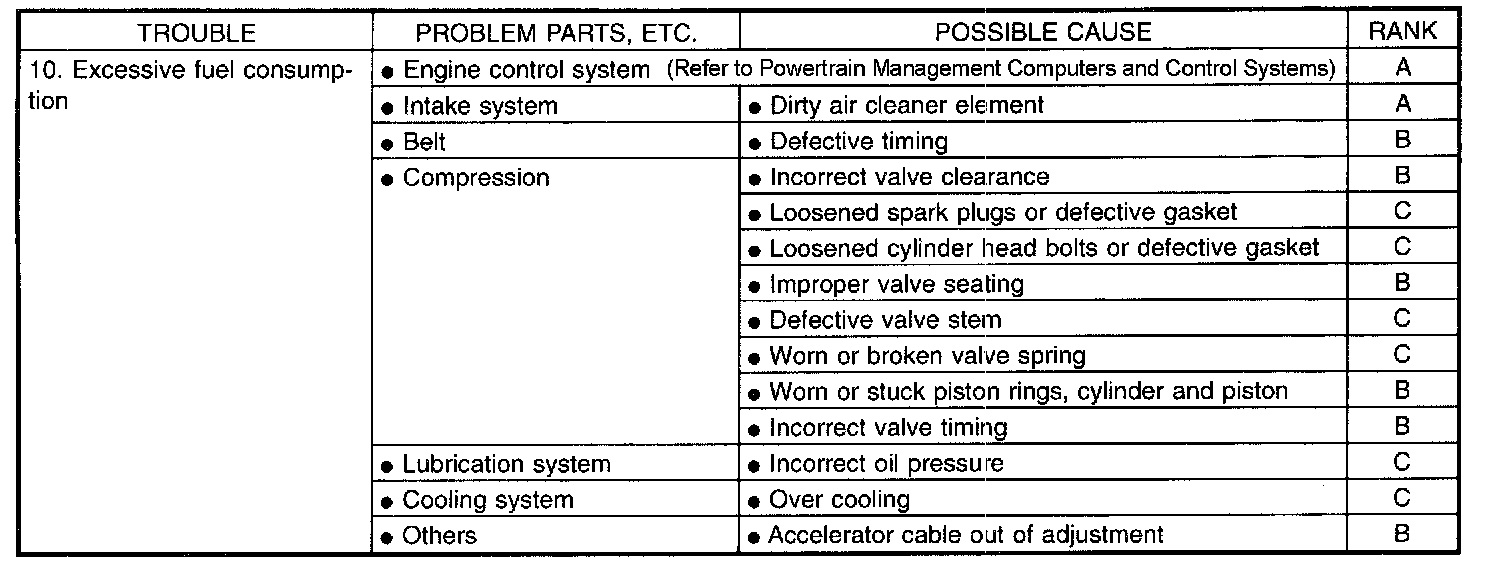

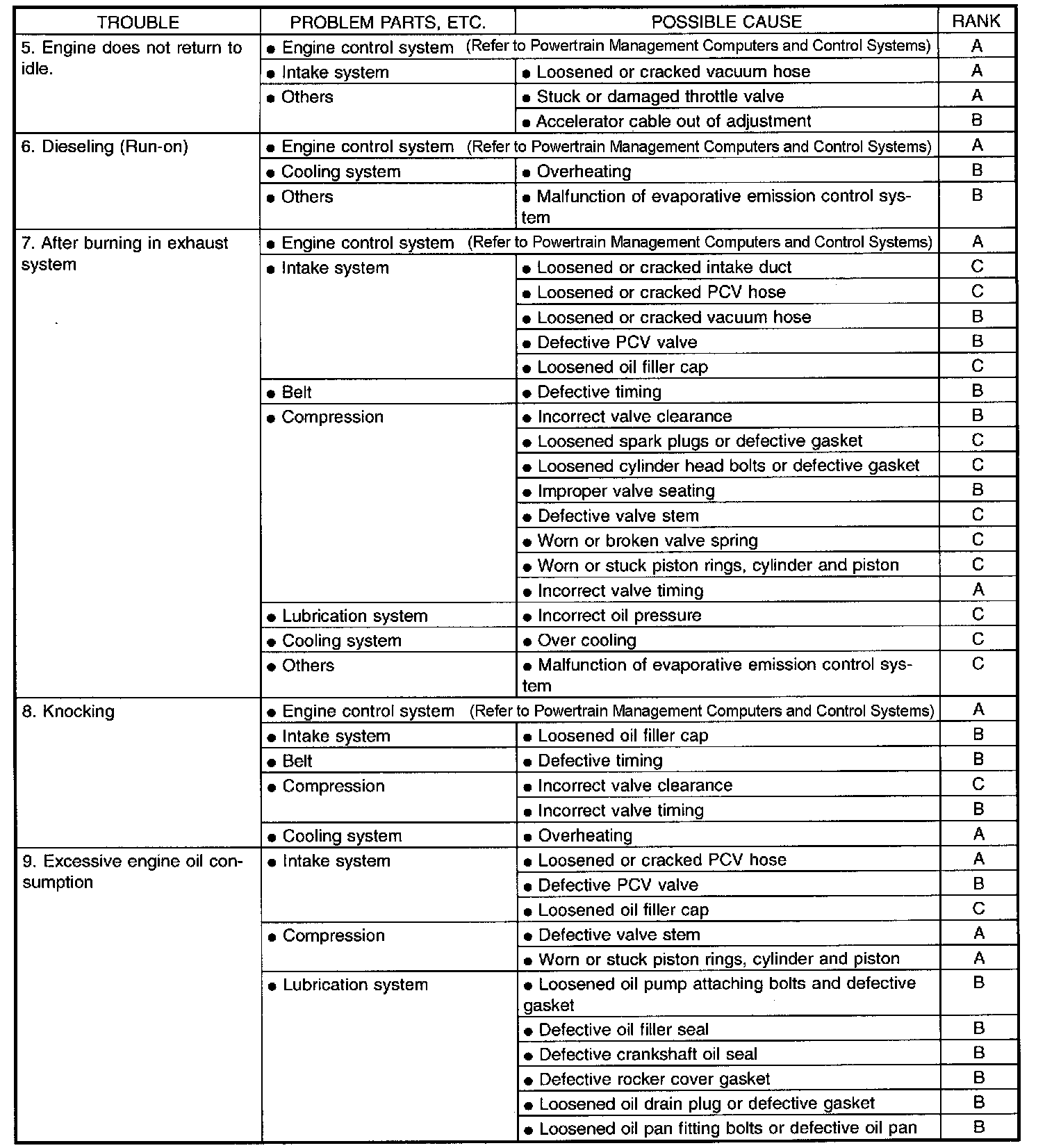

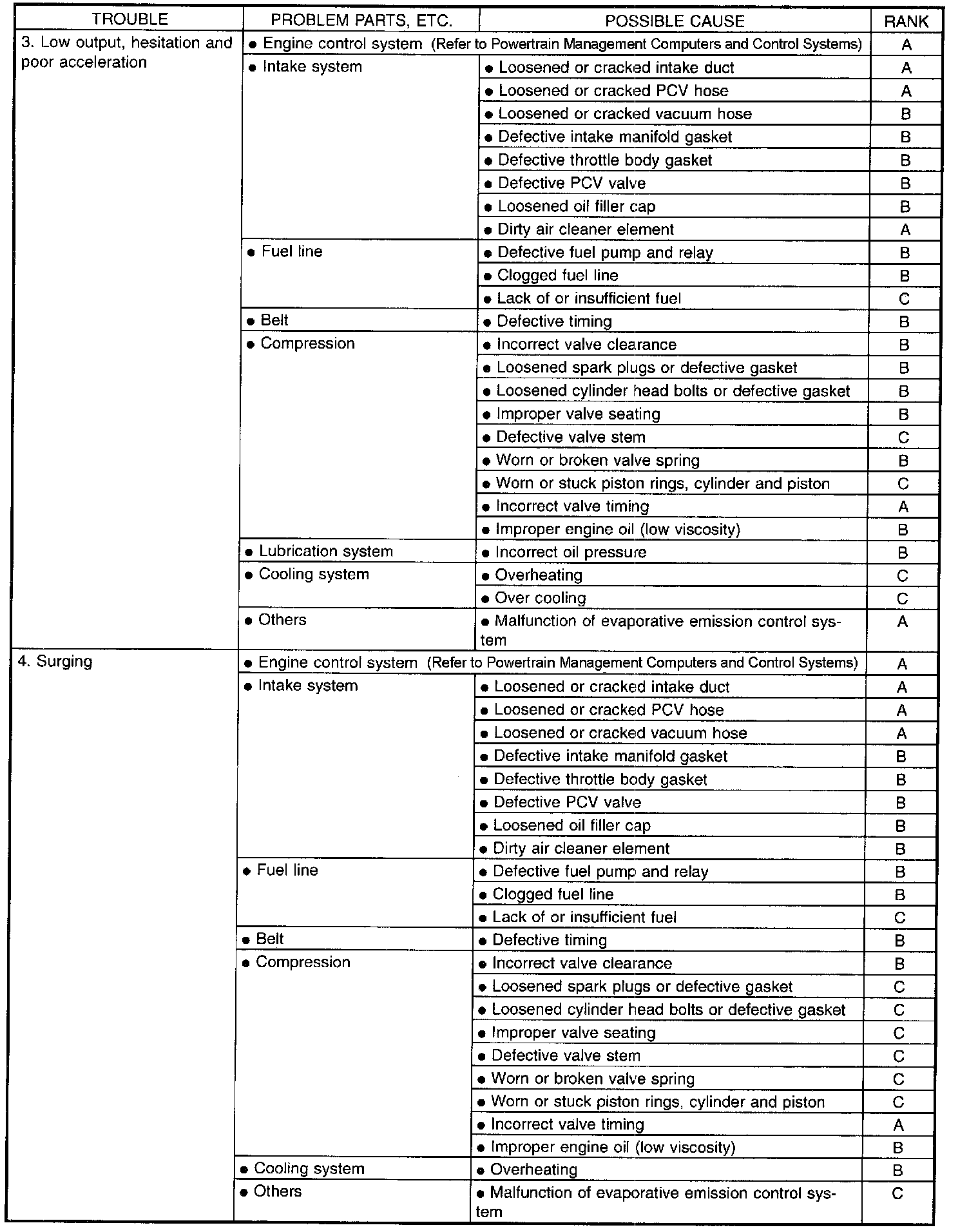

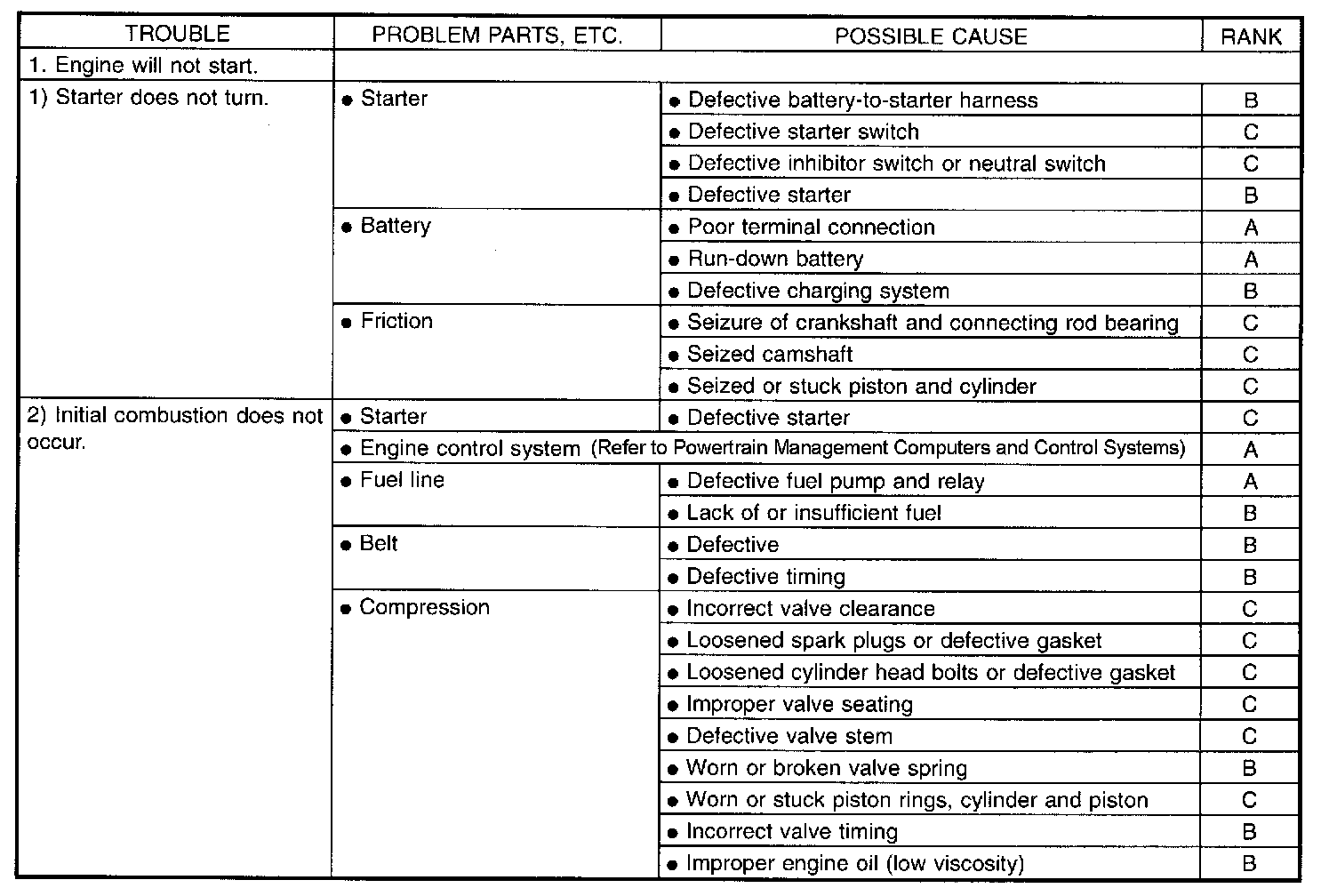

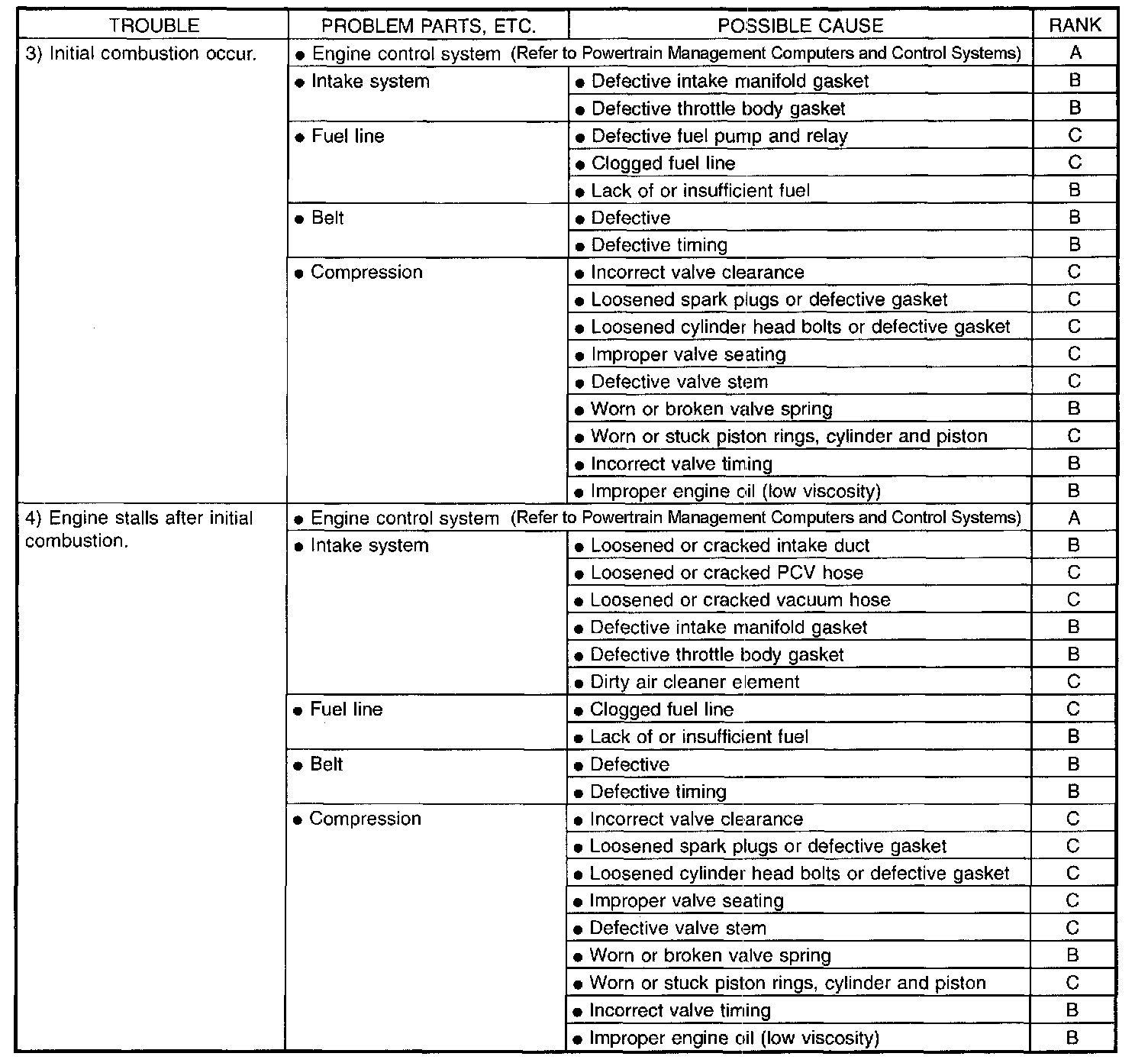

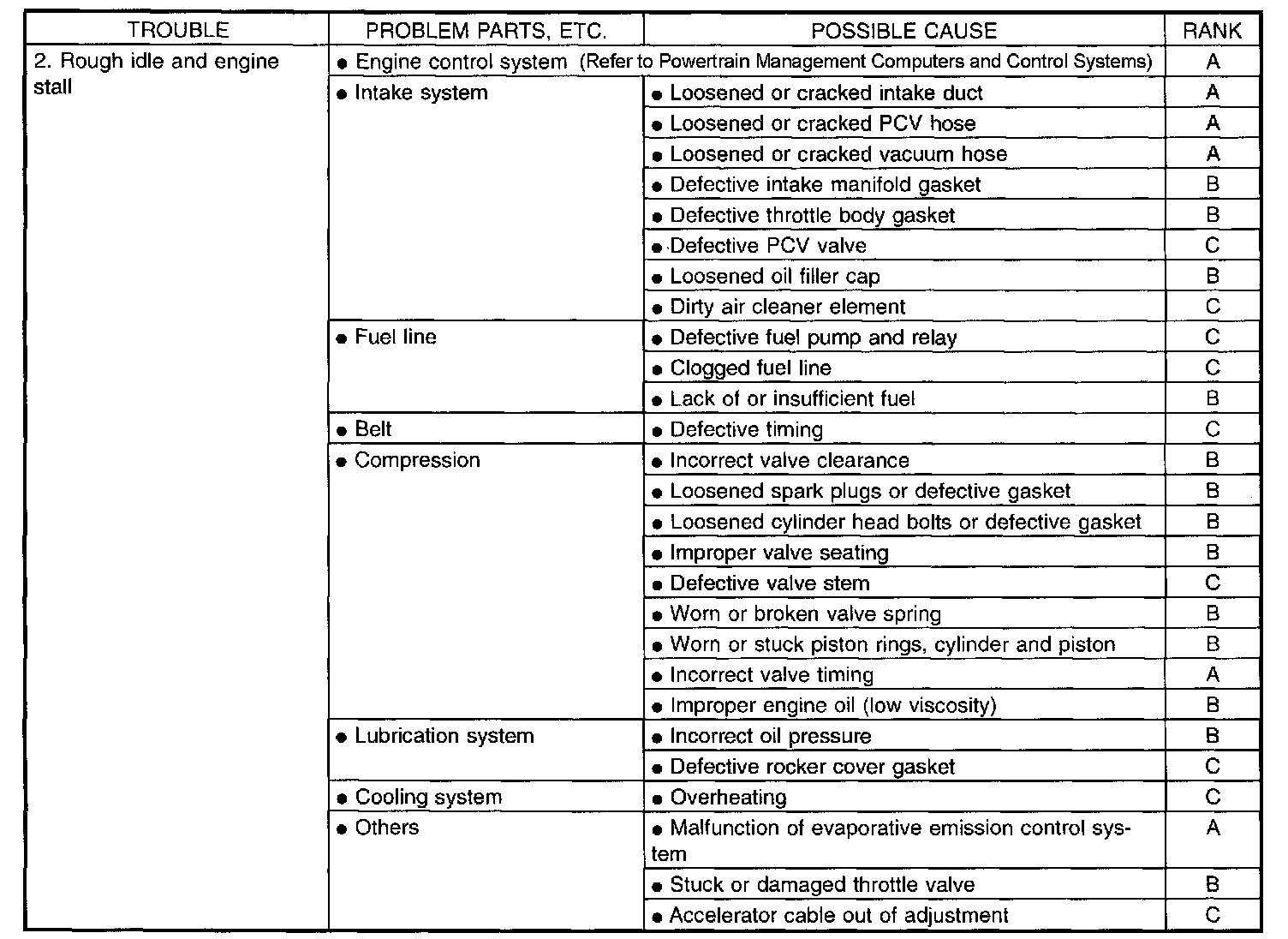

NOTE: "RANK" shown in the chart refer to the possibility of reason for the trouble in order ("Very often" to "Rarely")
A - Very often
B - Sometimes
C - Rarely
