Service Manual - Multiple Systems Updates/Corrections
NUMBER: 18-69-01DATE: 07/1/2001
APPLICABILITY:
2000-2002 Impreza Service Manuals
2000-2002 Legacy & Outback Service Manuals
2000-2002 Forester Service Manuals
SUBJECT:
Service Manual Corrections

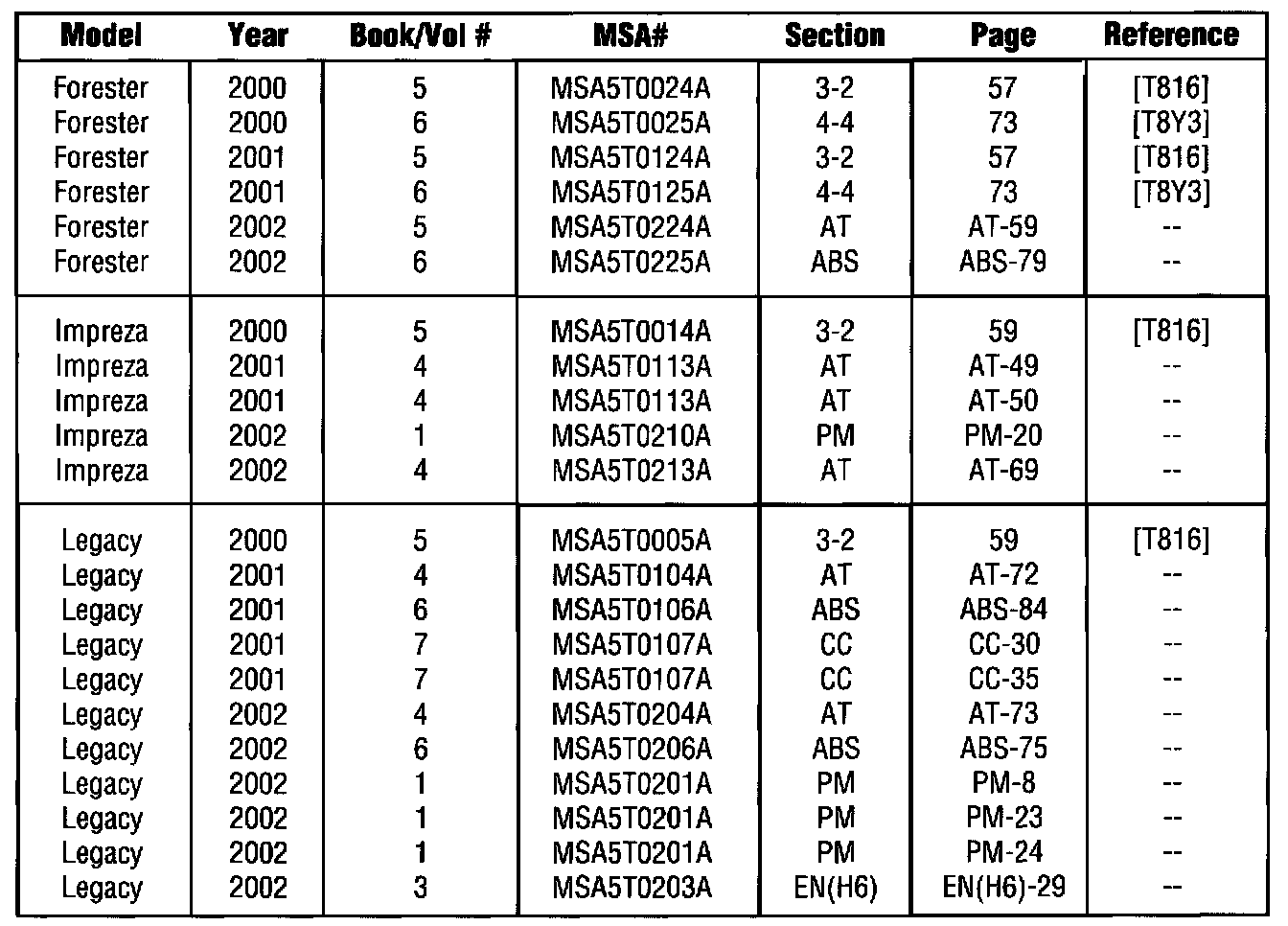

Place a REVISED label on the appropriate page of the shown effected Service Manual and Update the Service Manual Correction Binder with the following pages:

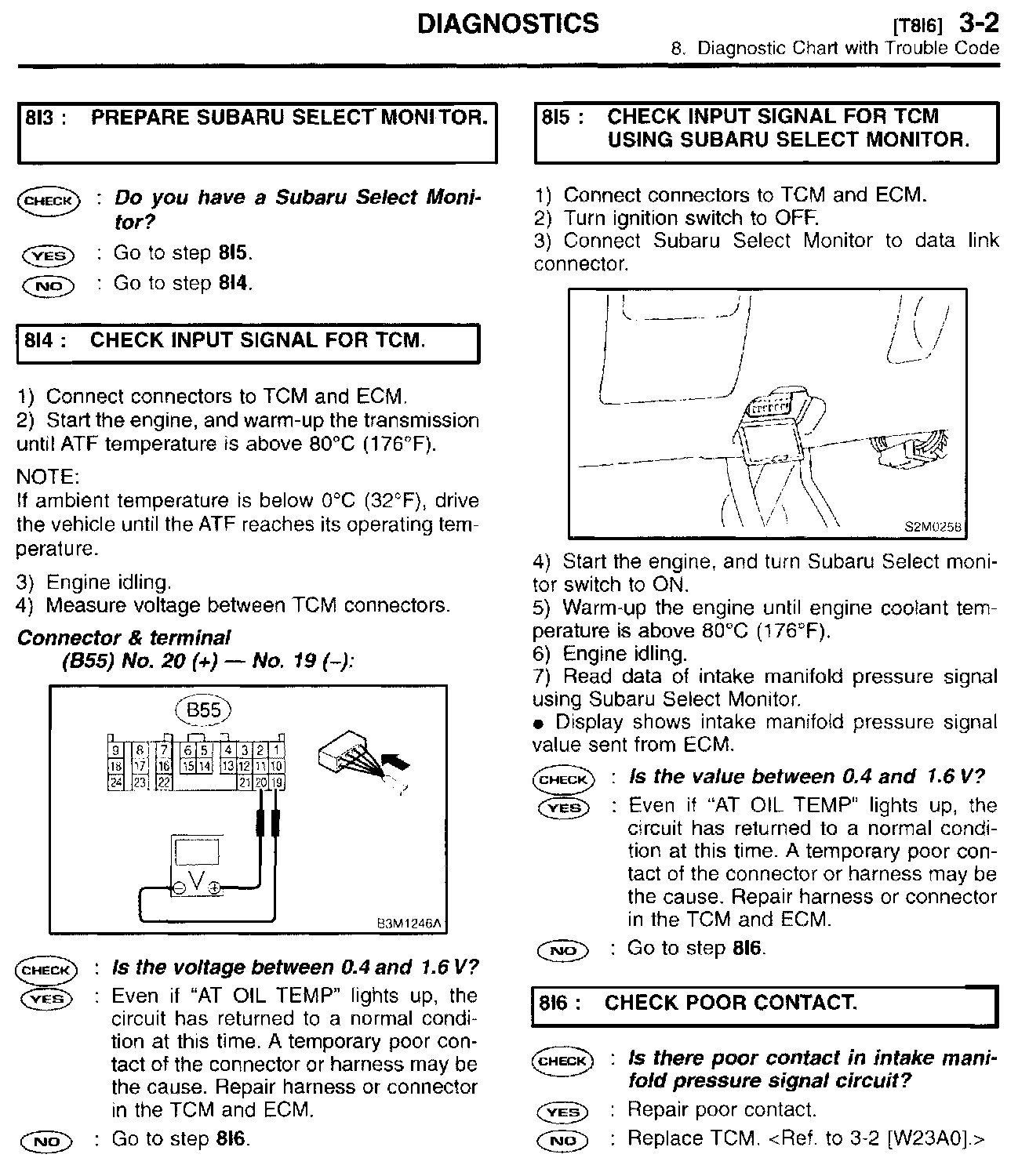

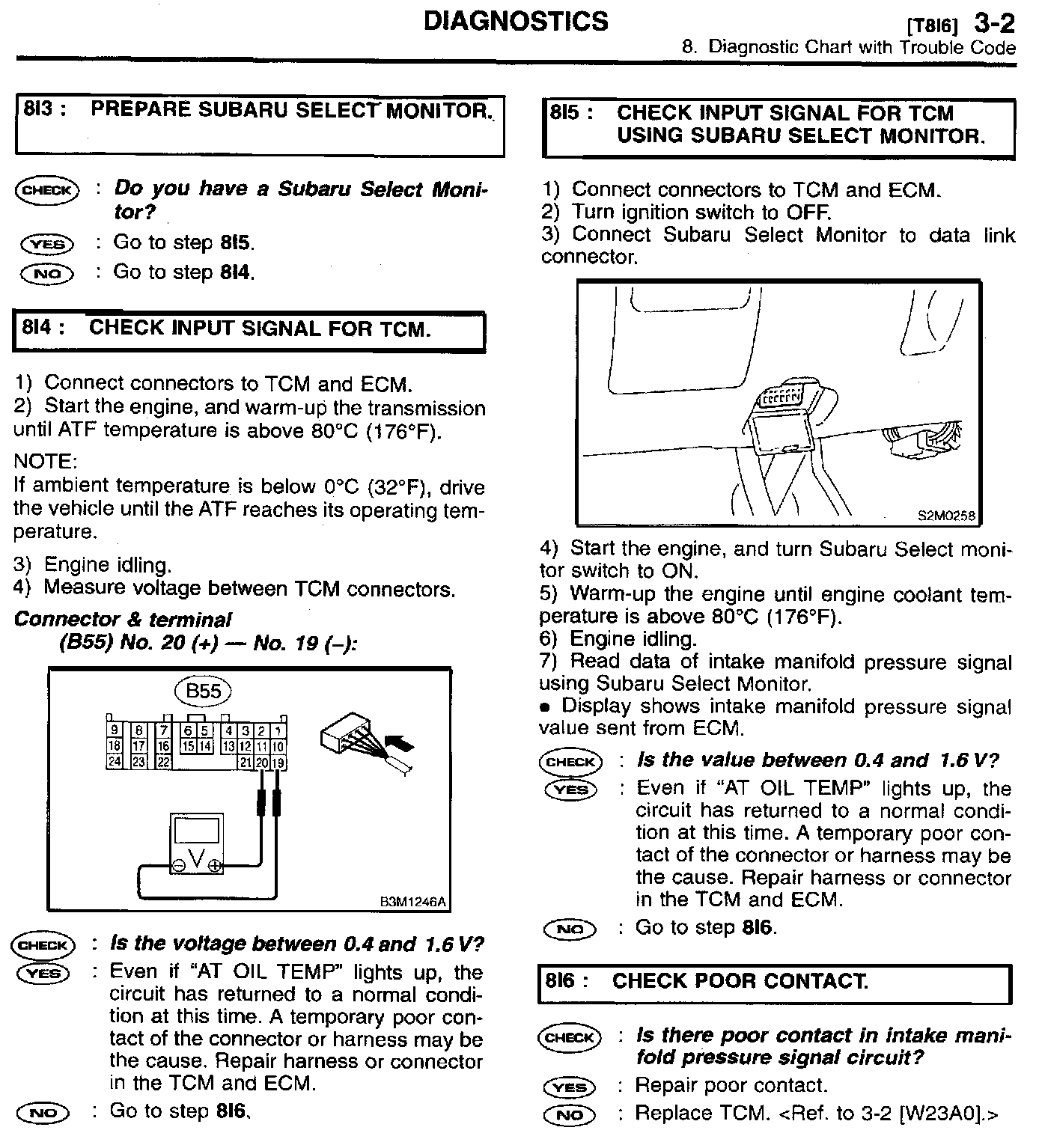

Diagnostic Chart with Trouble Code - Page 3-2

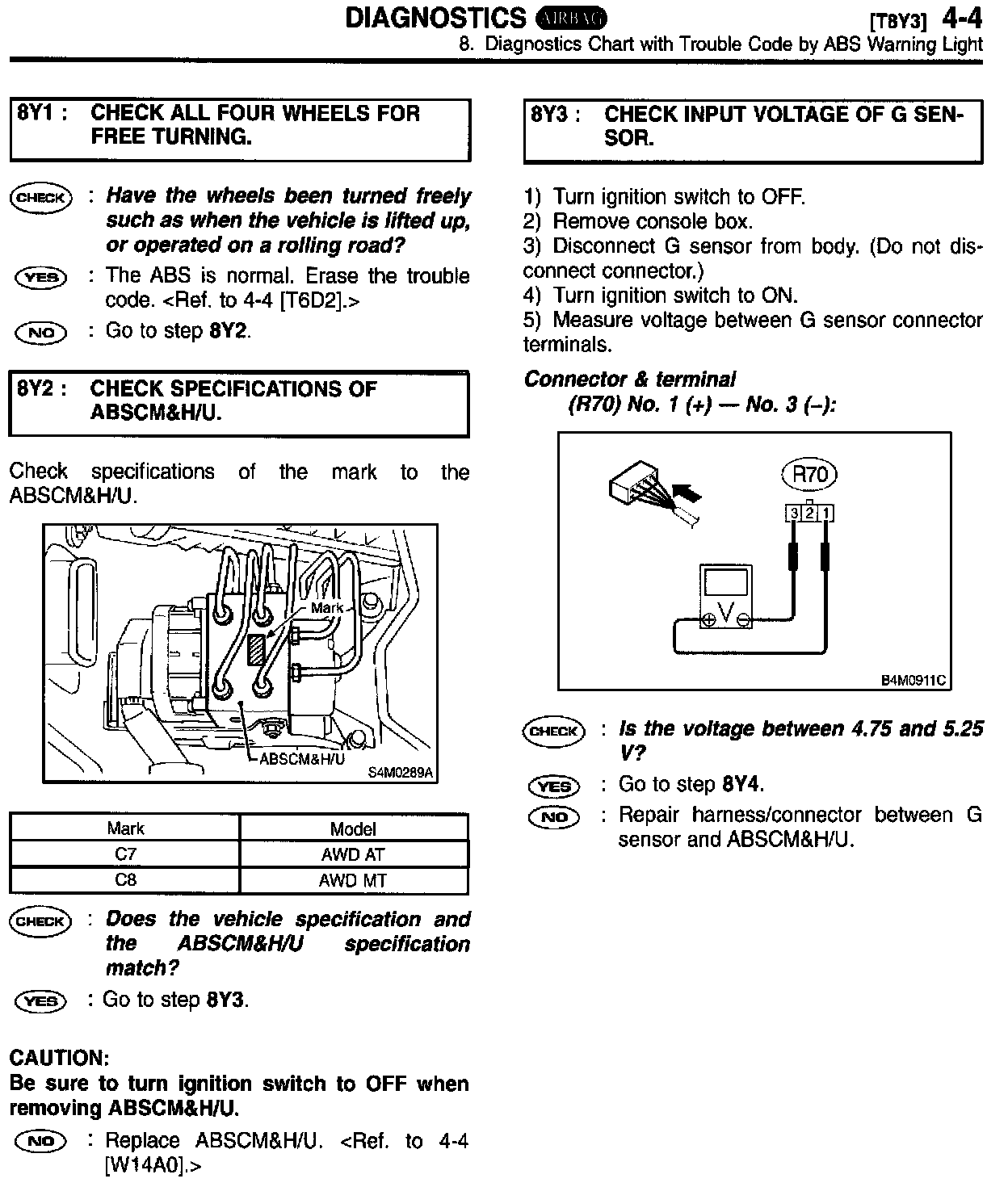

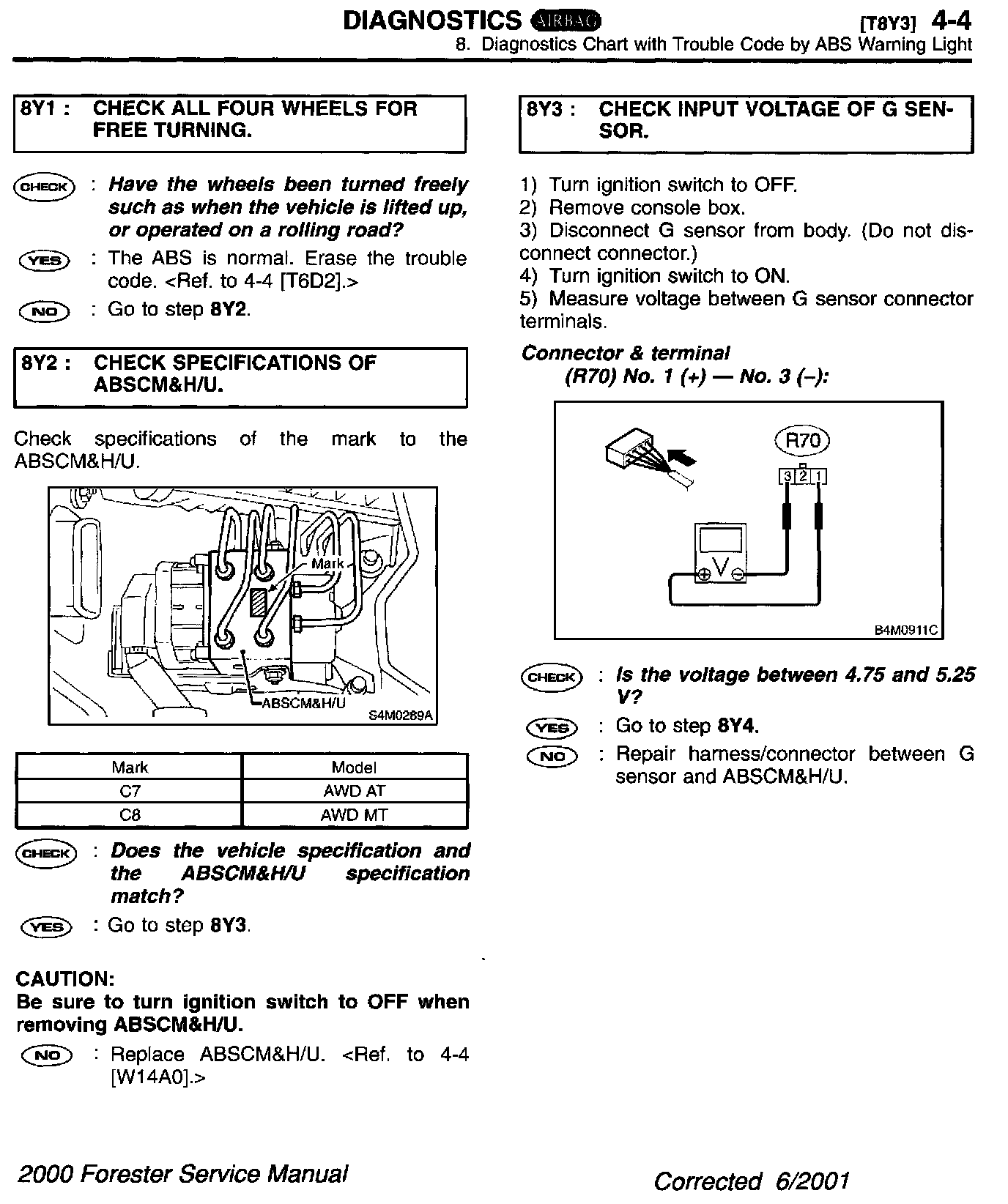

Diagnostic Chart with Trouble Code by ABS Warning Light - Page 4-4

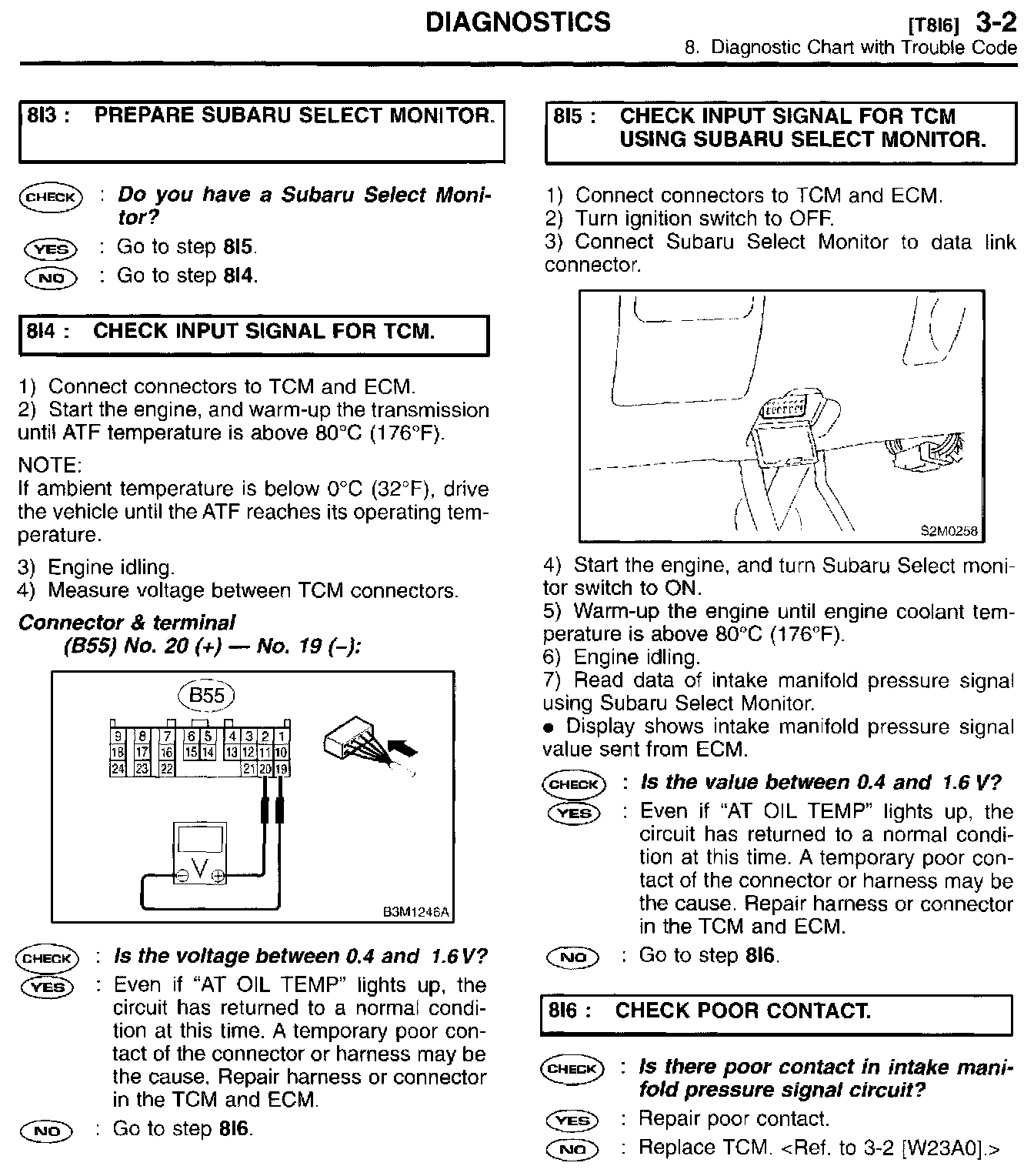

Diagnostic Chart with Trouble Code - Page 3-2
Diagnostic Chart with Trouble Code by ABS Warning Light - Page 4-4

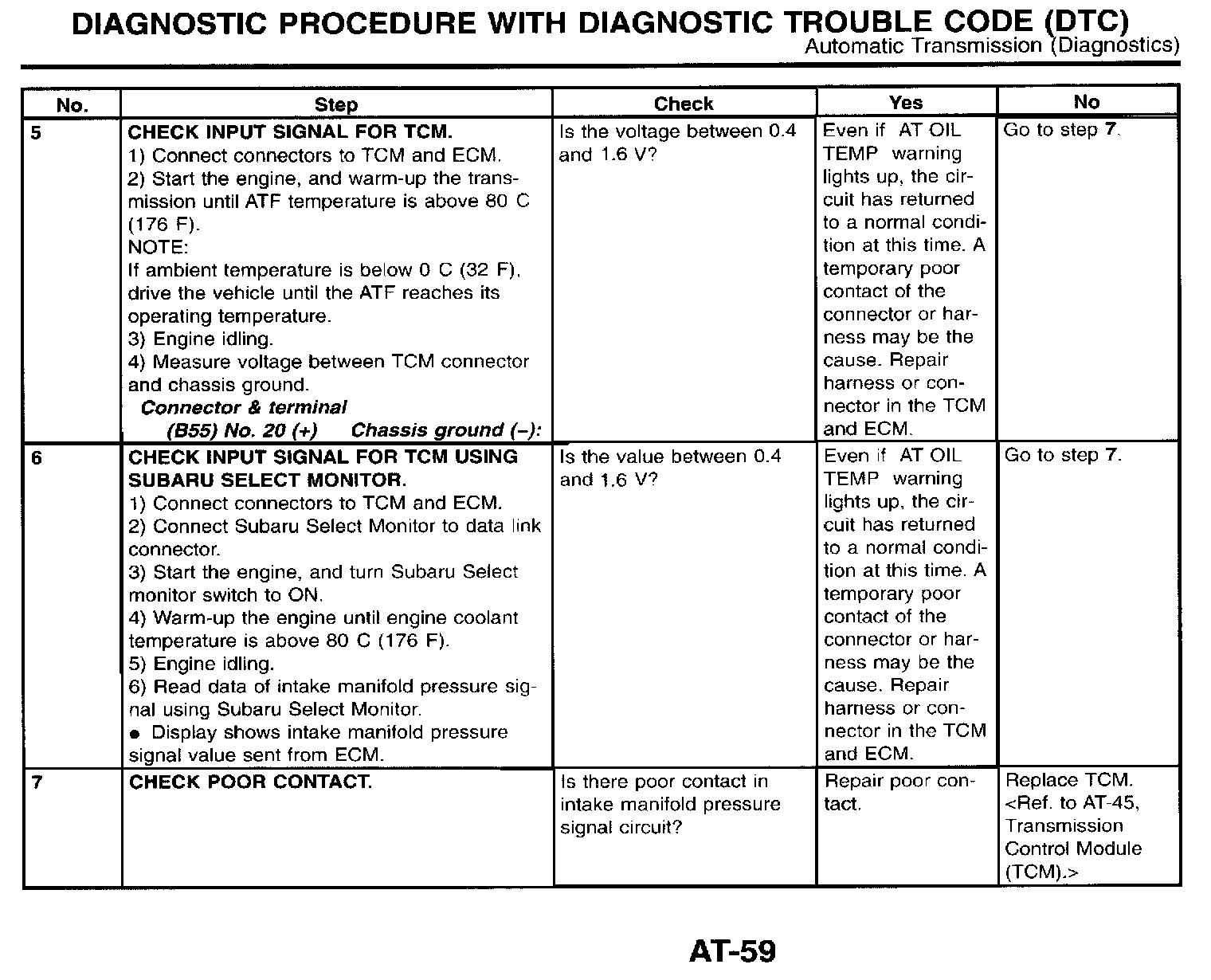

Diagnostic Procedure with (DTC) - Page AT-59
Diagnostic Procedure with Diagnosis Connector - Page ABS-79

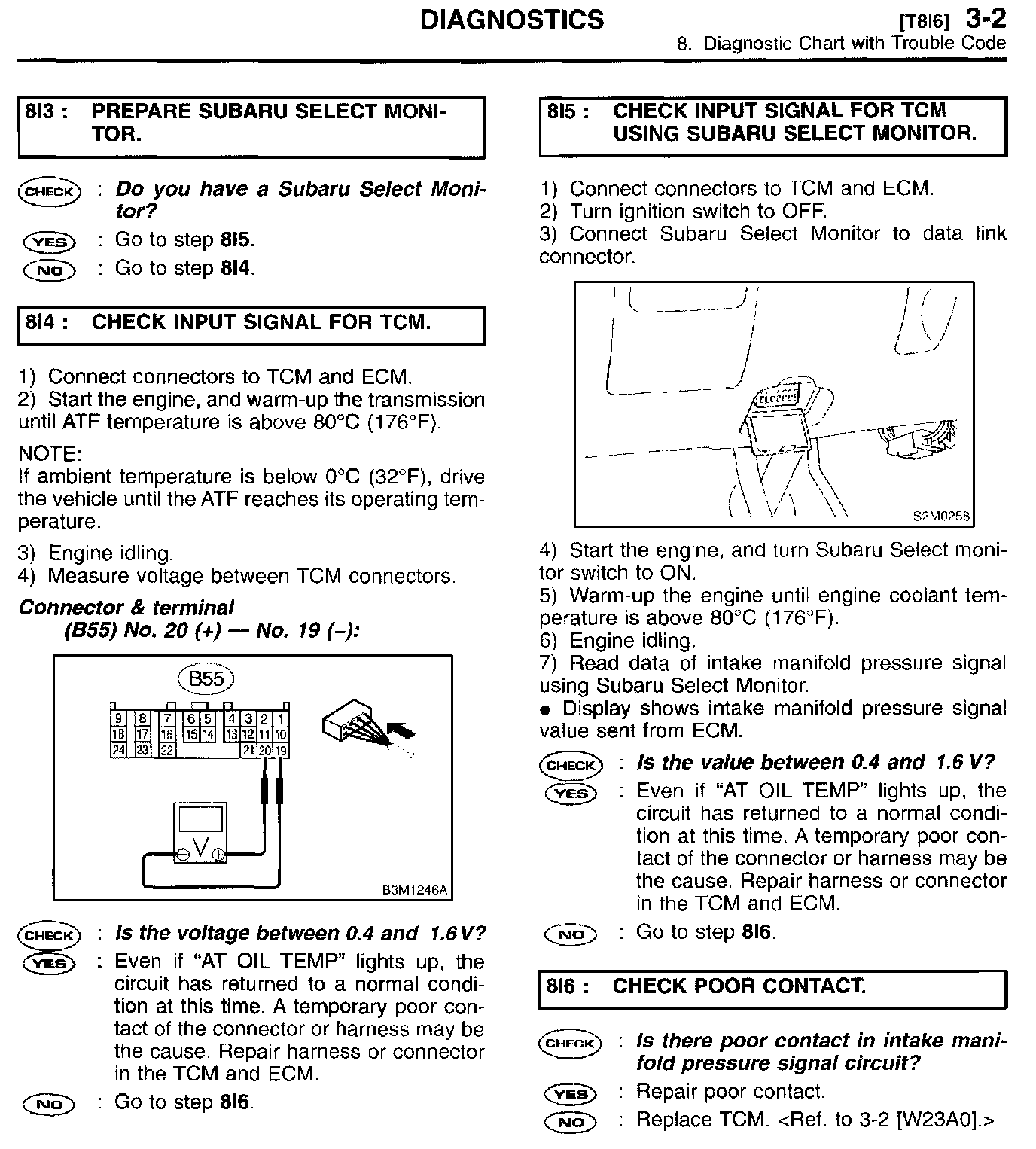

Diagnostics - Page 3-2

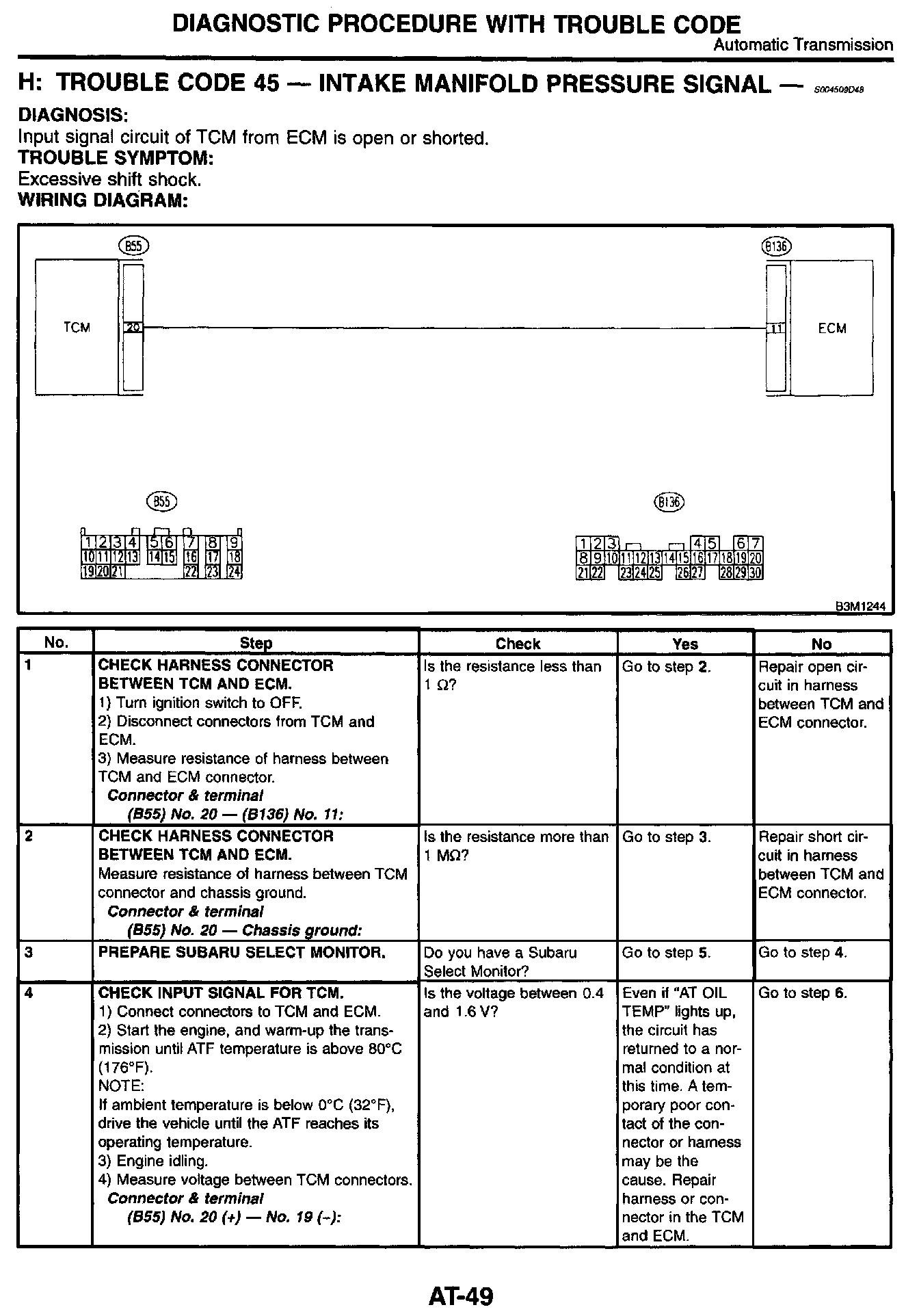

Diagnostic Procedure with Trouble Code - Page AT-49

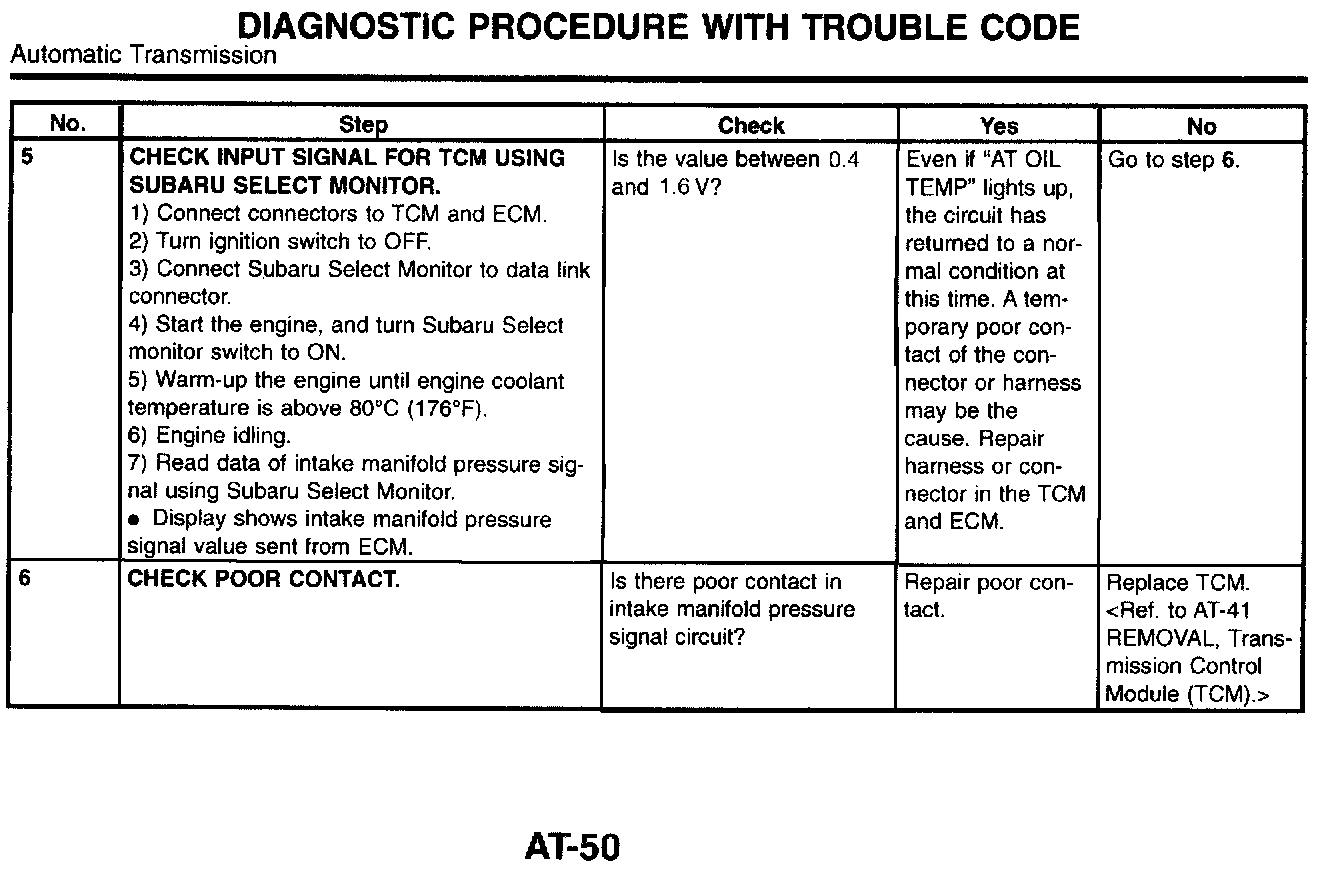

Diagnostic Procedure with Trouble Code - Page AT-50

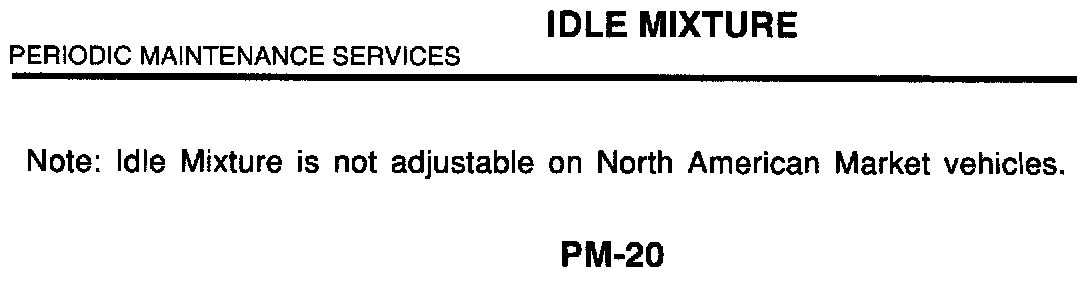

Idle Mixture - Page PM-20

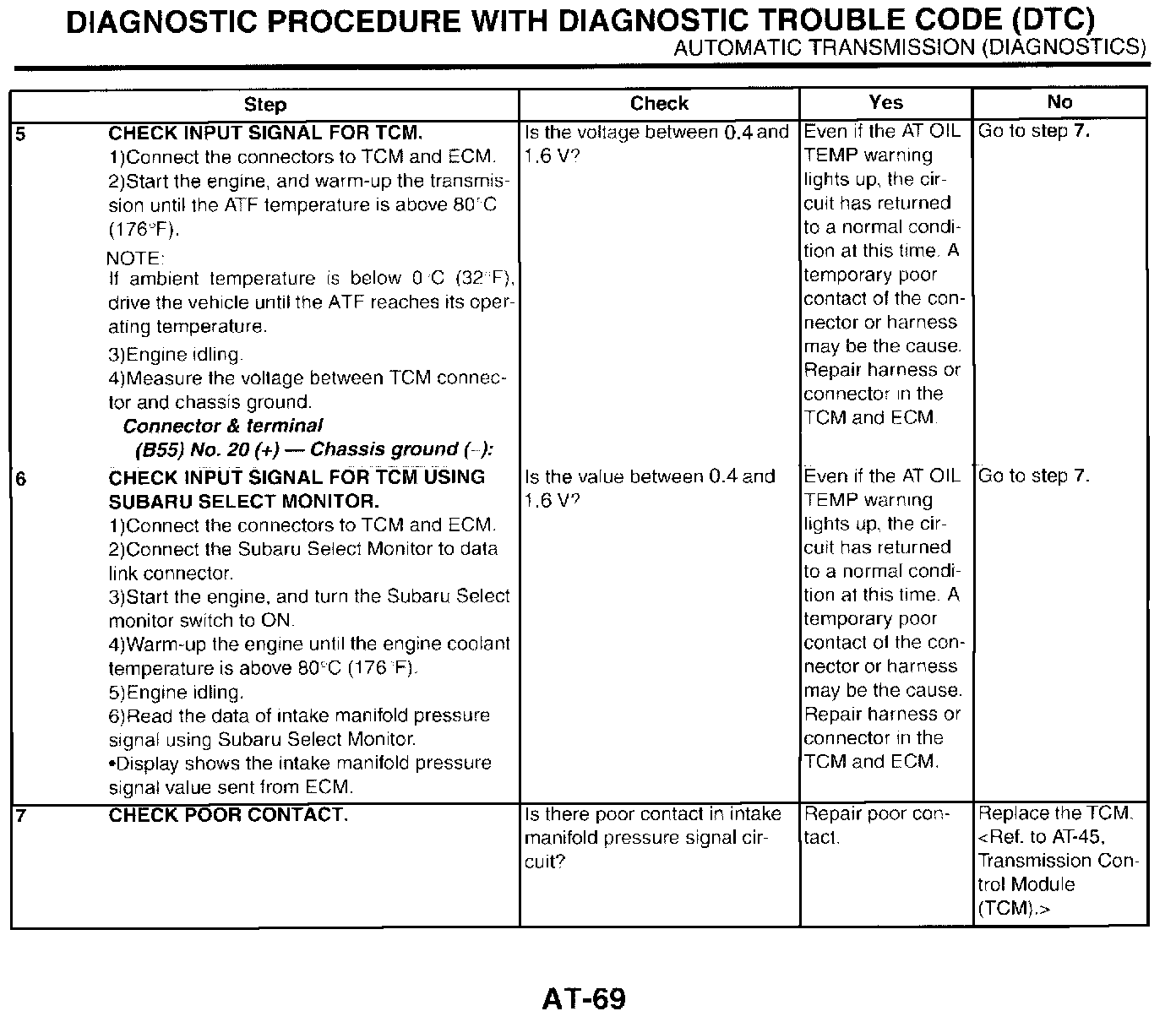

Diagnostic Procedure with (DTC) - Page AT-69
Diagnostics - Page 3-2

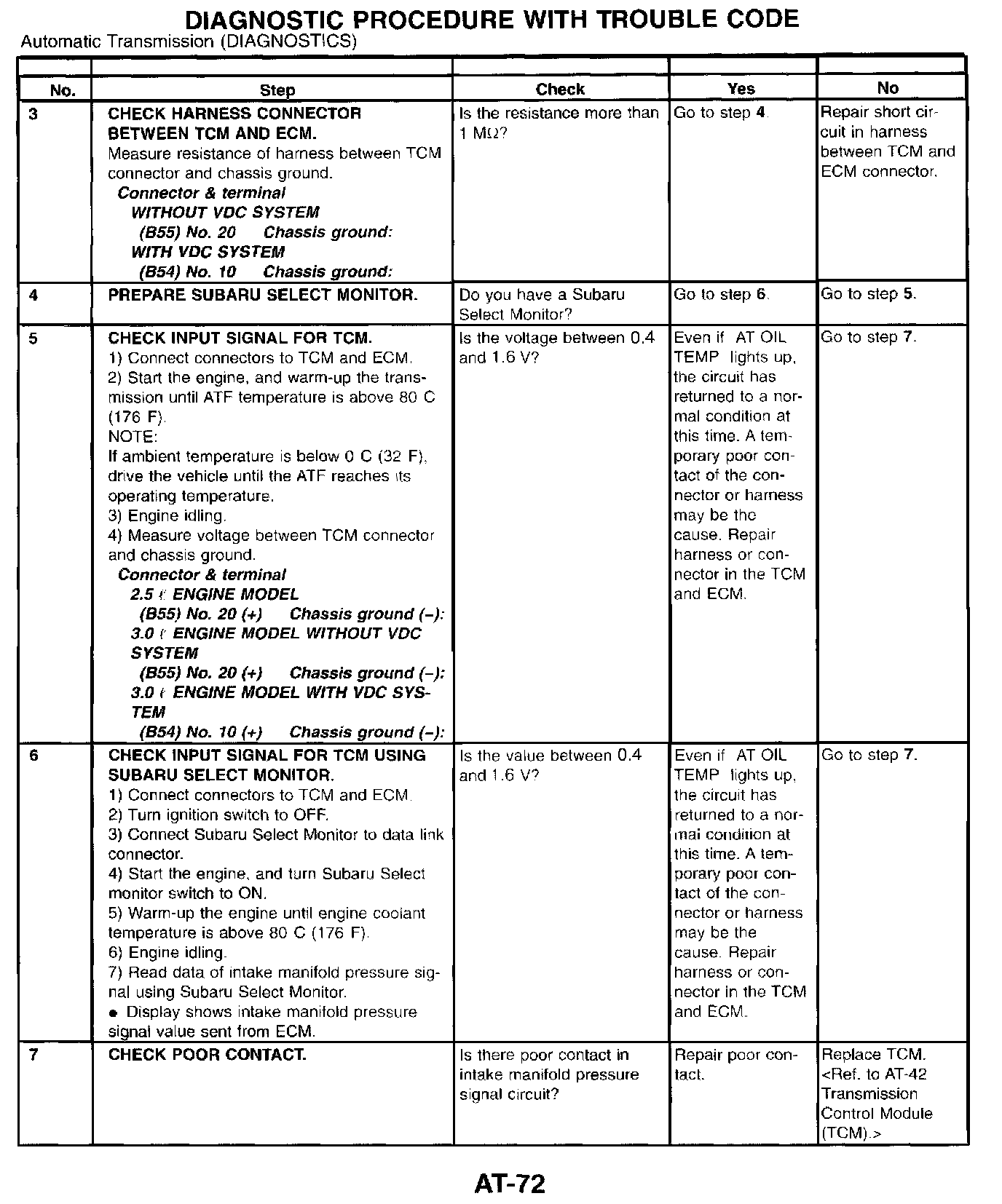

Diagnostic procedure with Trouble Code - Page AT-72

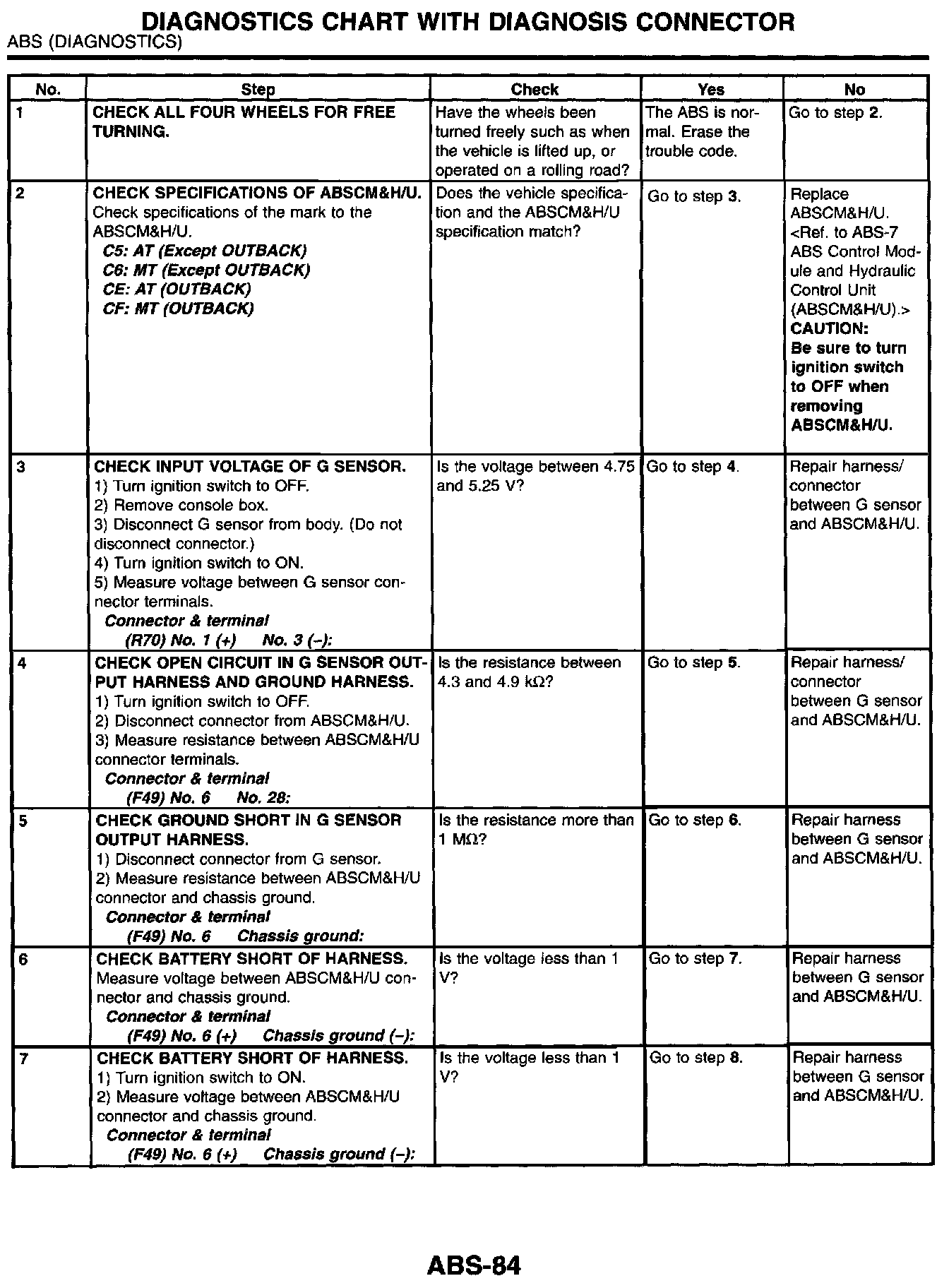

Diagnostics Chart with Diagnosis Connector - Page ABS-84

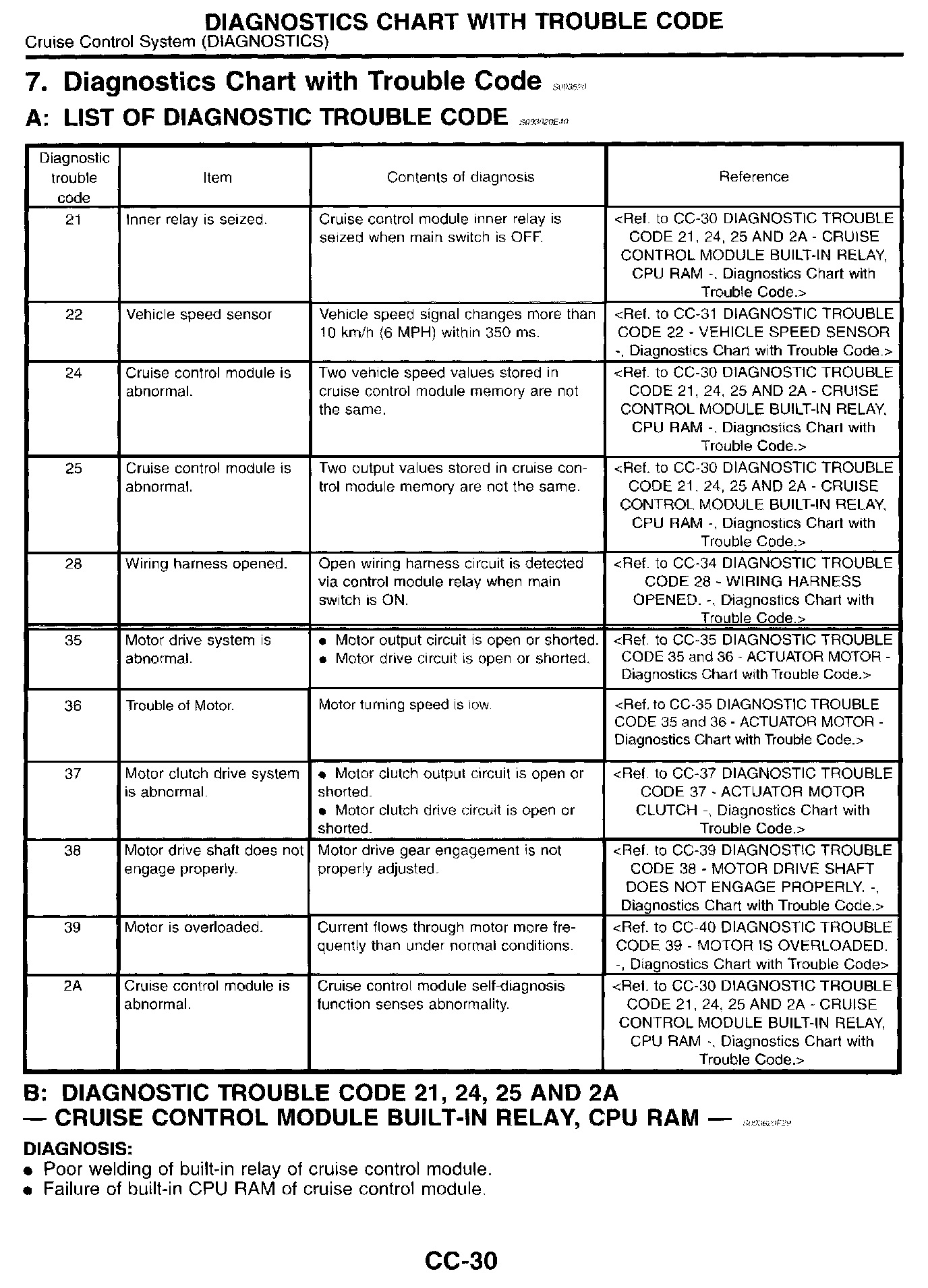

Diagnostics Chart with Trouble Code - Page CC-30
Cruise Control System
Diagnostics Chart with Trouble Code - Page CC-35
Cruise Control System

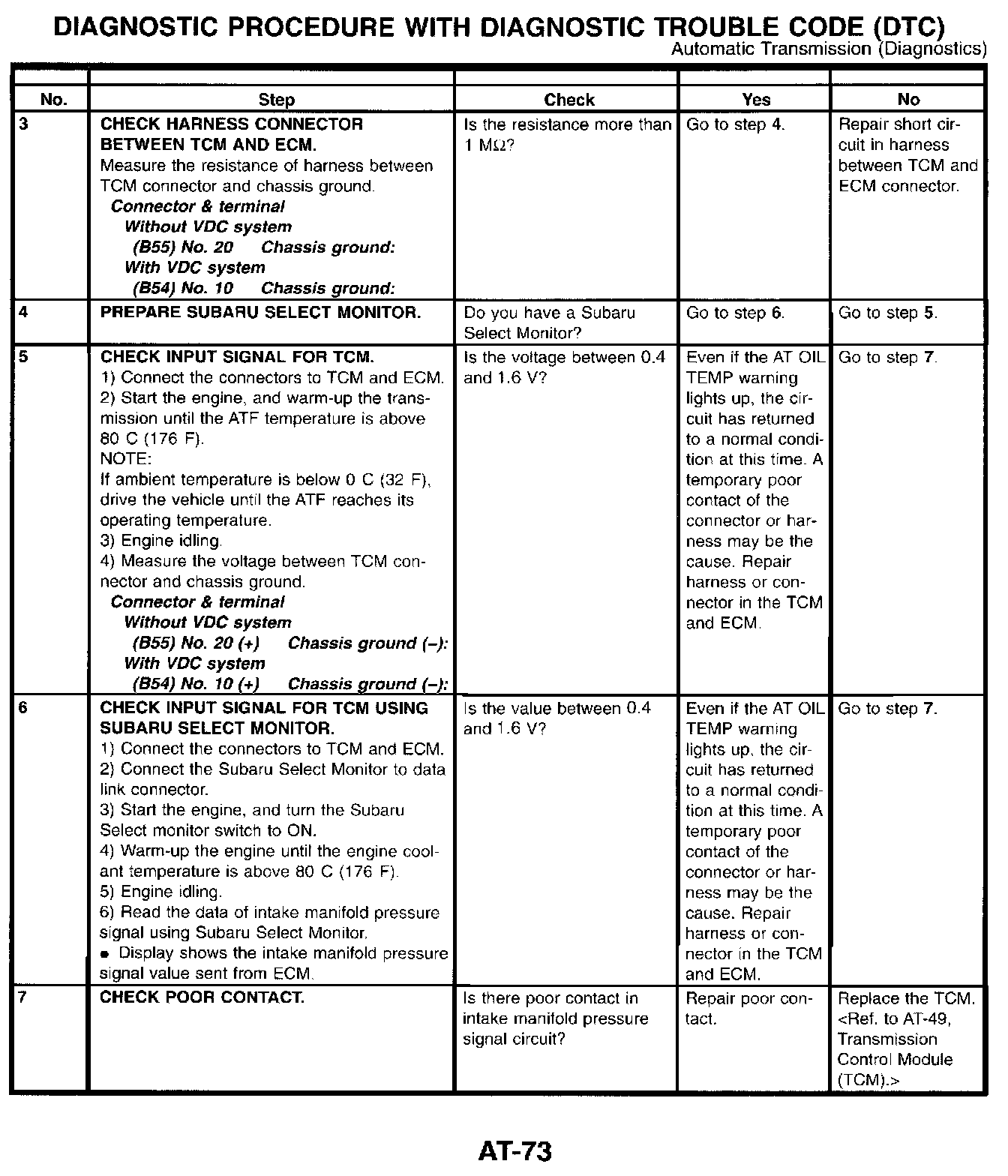

Diagnostic Procedure with (DTC) - Page AT-73

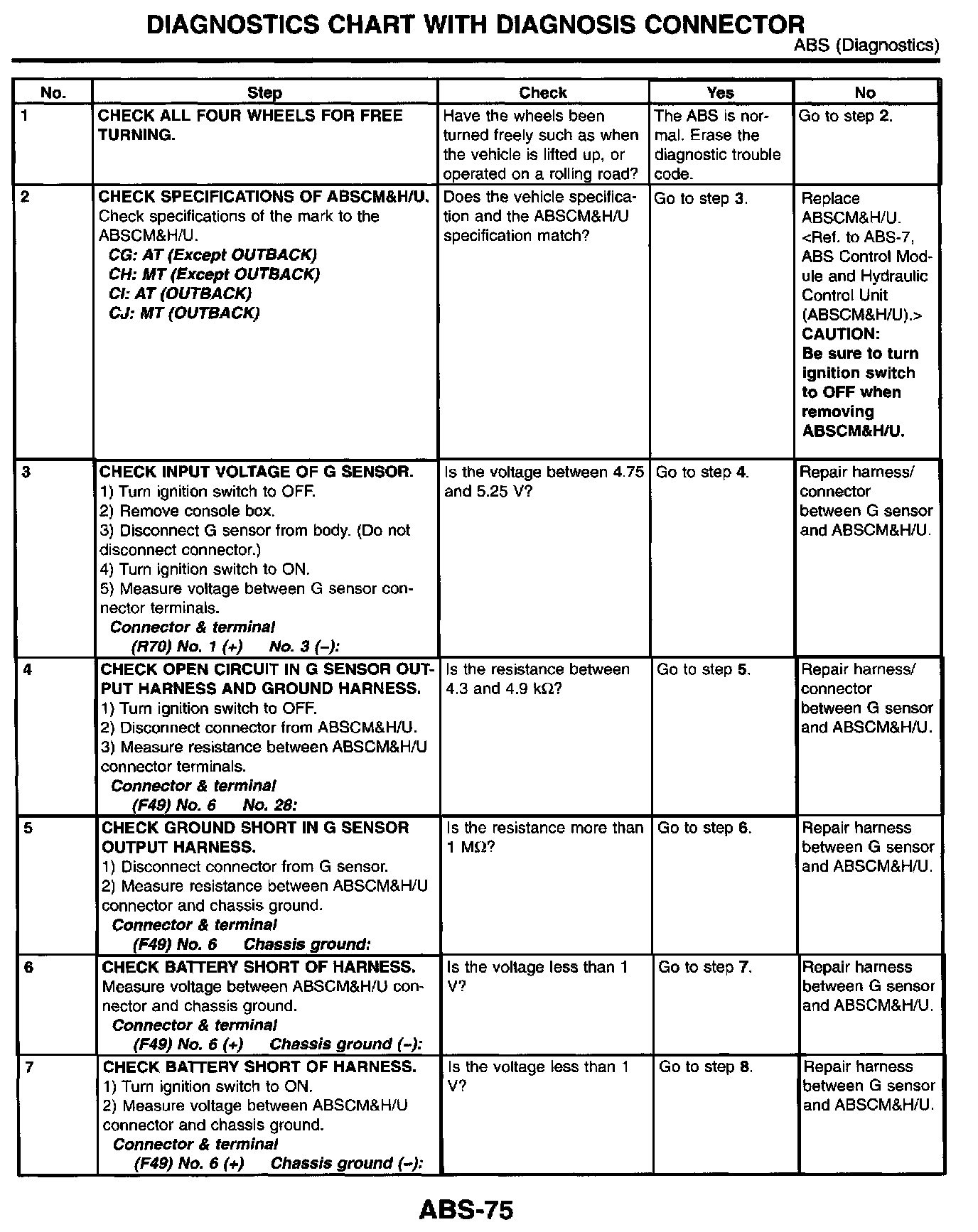

Diagnostics Chart with Diagnosis Connector - Page ABS-75

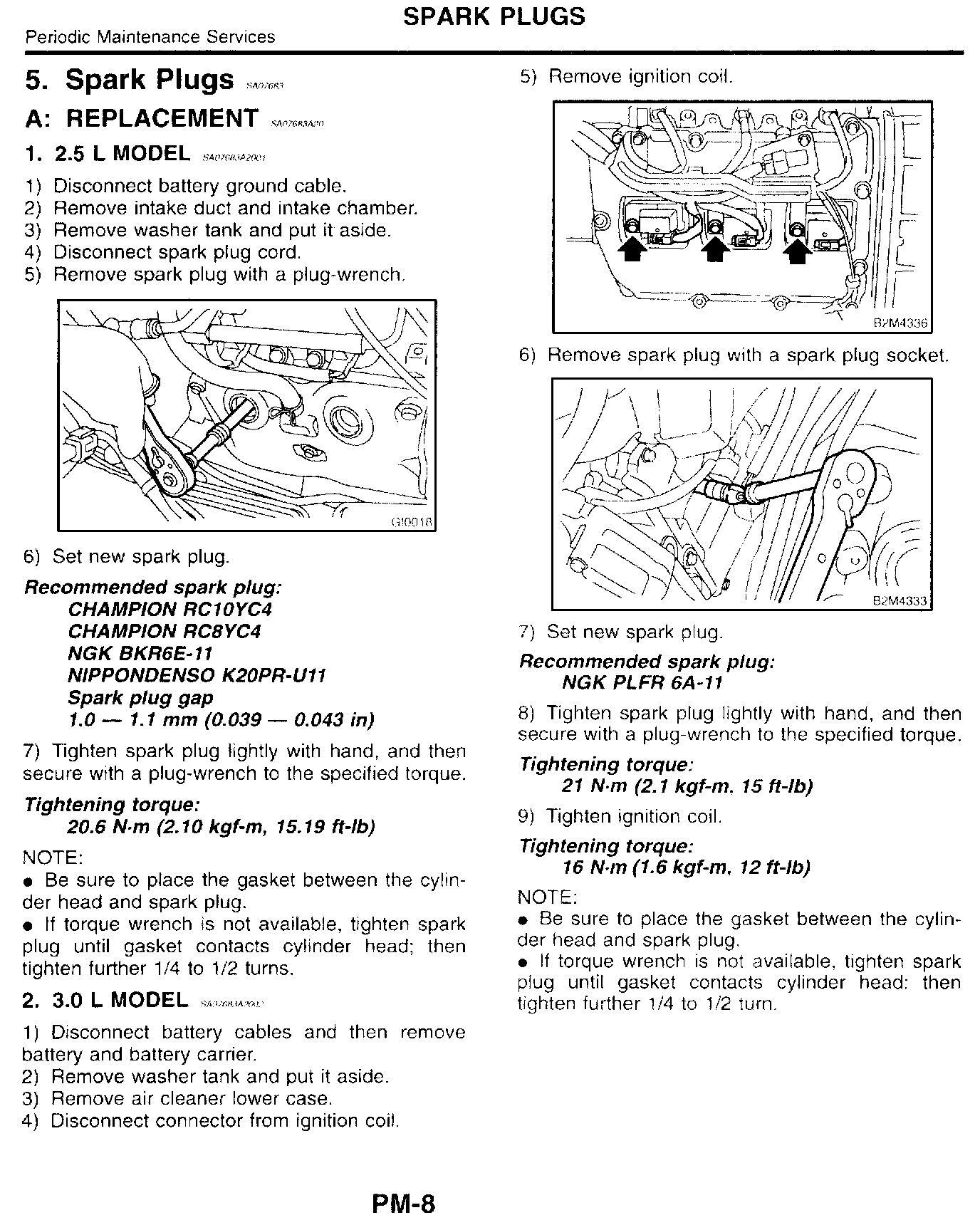

Spark Plugs - Page PM-8

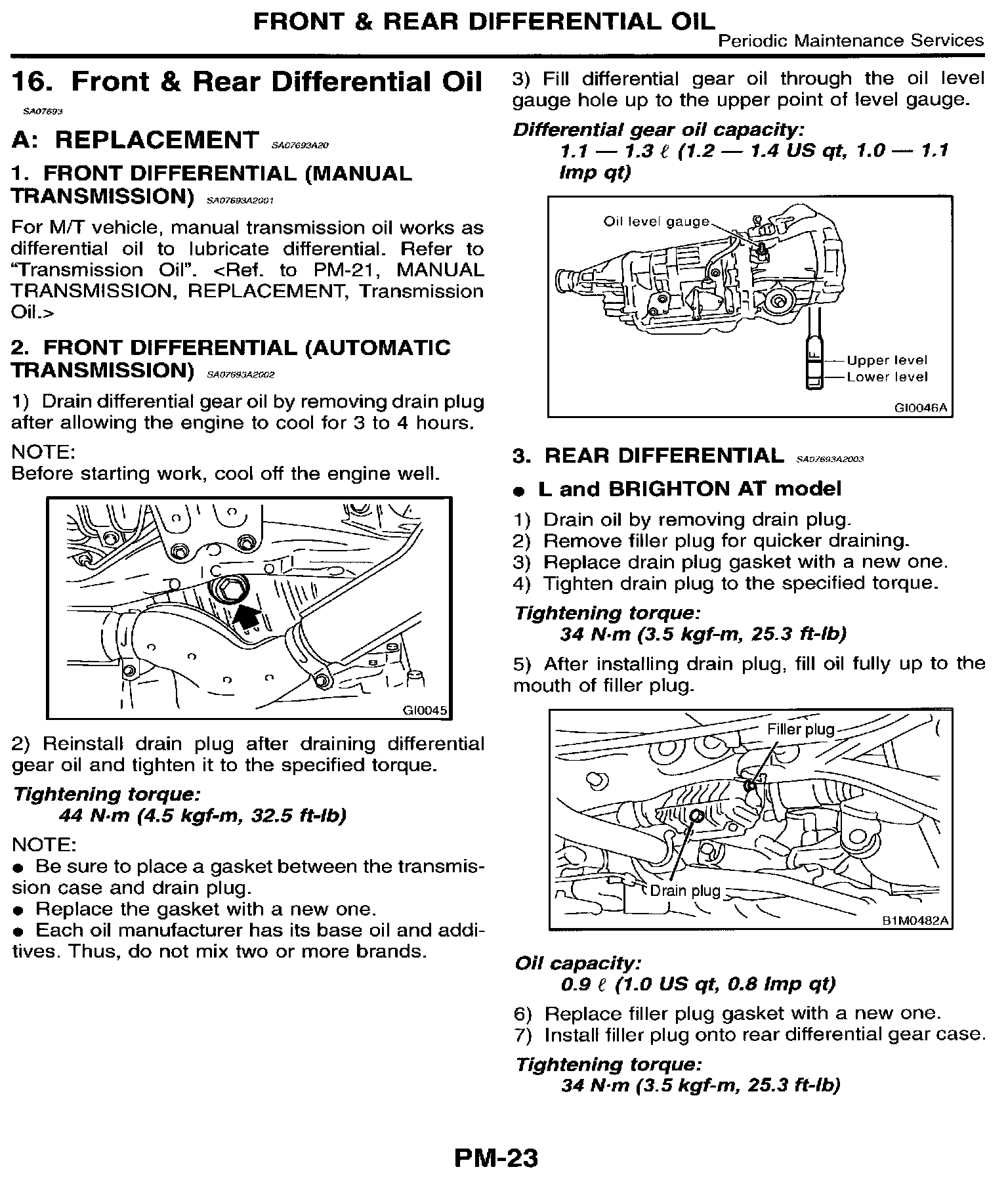

Front & Rear Differential Oil - Page PM-23
Front & Rear Differential Oil - Page PM-24
Engine Control Module (ECM) I/O Signal - Page EN(H6)-29
