Front

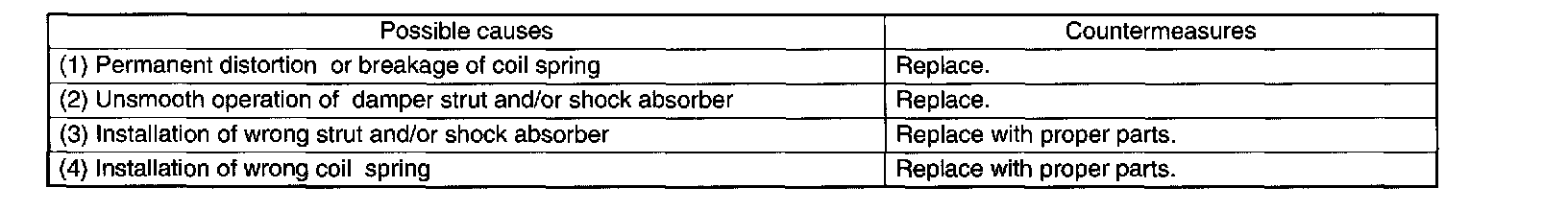

General Diagnostic Table INSPECTION IMPROPER VEHICLE POSTURE OR IMPROPER WHEEL ARCH HEIGHT:
IMPROPER VEHICLE POSTURE OR IMPROPER WHEEL ARCH HEIGHT POOR RIDE COMFORT 1.
Large rebound shock
2.
Rocking of vehicle continues too long after running over bump and/or hump.
3.
Large shock in bumping.

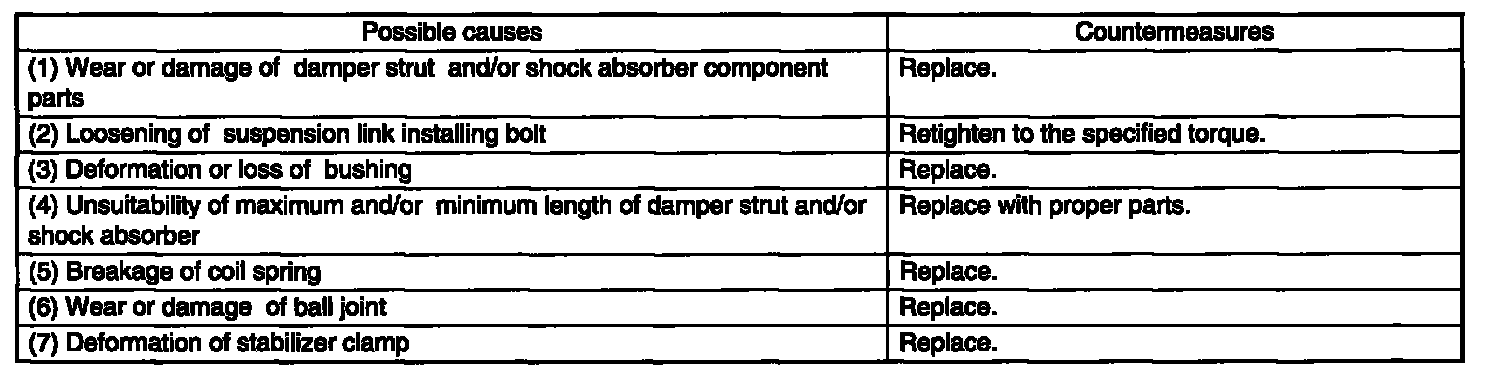

NOISE:
NOISE
