Trunk Lid Opener

Remote Openers

REMOVAL

TRUNK LID OPENER

1. Remove the rear seat.
2. Remove the center pillar lower trim and side sill cover on the passenger side. Remove the rear pillar lower trim. Pull back the floor mat. Remove the clip holding the cable.

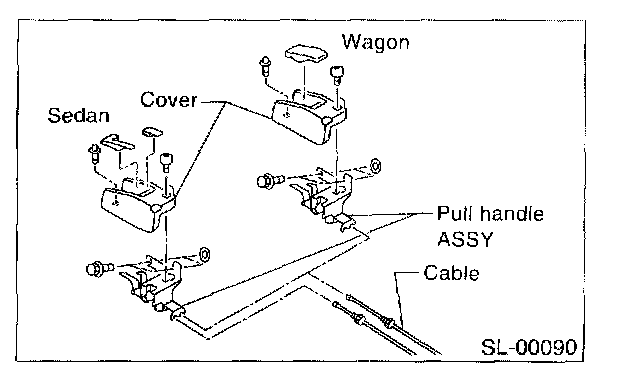

3. Remove the bolt. Remove the opener pull handle.
4. Remove the cable from the opener pull handle.

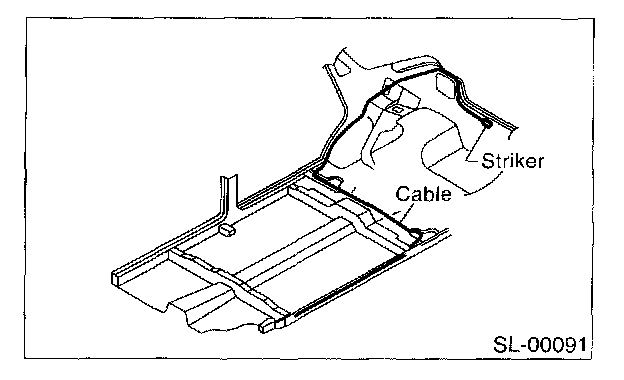

5. Remove the striker from the trunk lid.




6. Remove the cable from the striker.

INSTALLATION

TRUNK LID OPENER

Install in the reverse order of removal.
