Upper Inner Trim

UPPER INNER TRIM

REMOVAL

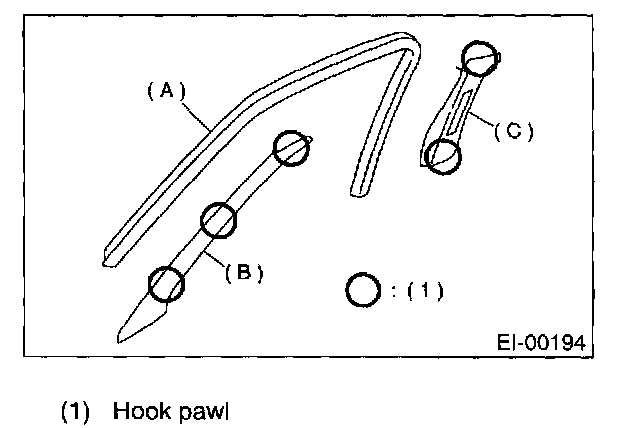

1. Remove front mole (A).
2. Remove front pillar upper trim (B).
3. Detach front seat belt shoulder anchor, then remove center pillar upper trim (C).

INSTALLATION

Install in the reverse order of removal.

CAUTION: Be sure to securely hook pawls of inner trim panel to body flange.

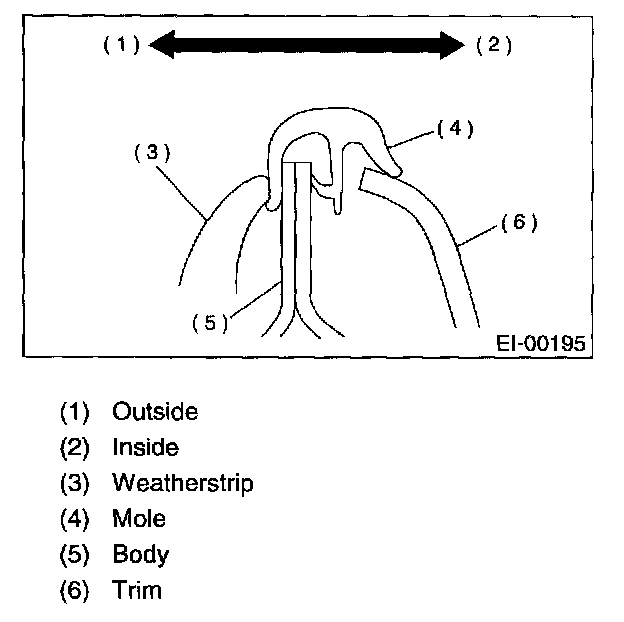

NOTE: When installing center pillar upper trim and front pillar upper trim, be sure to set front mole as shown in figure.
