Overhaul

Sunroof Assembly

DISASSEMBLY

1. SEDAN AND WAGON (FRONT)
1. Remove sunroof frame.

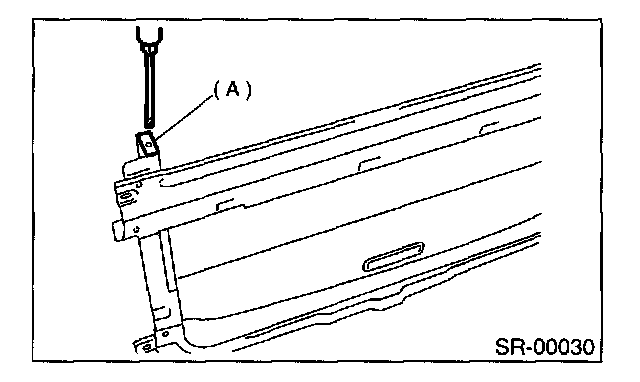

2. Remove rail stoppers (A).

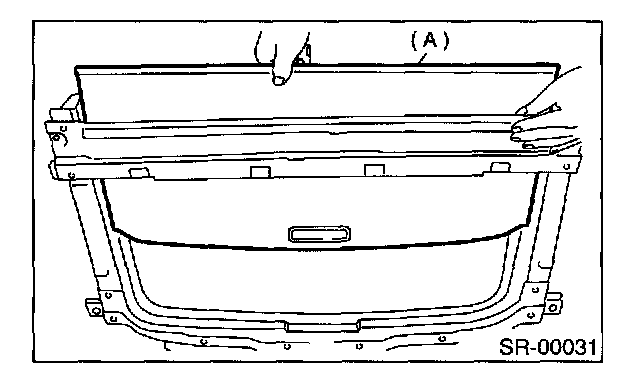

3. Pull out the sunshade (A) from sunroof frame.

2. WAGON (REAR)
1. Remove rear sunroof frame.

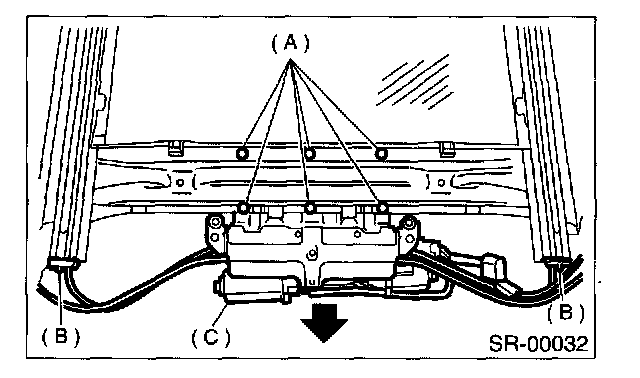

2. Remove sunroof motor bracket mounting screws (A).

3. Remove rail stoppers (B) then pull the motor assembly (C) in the direction shown in the figure.

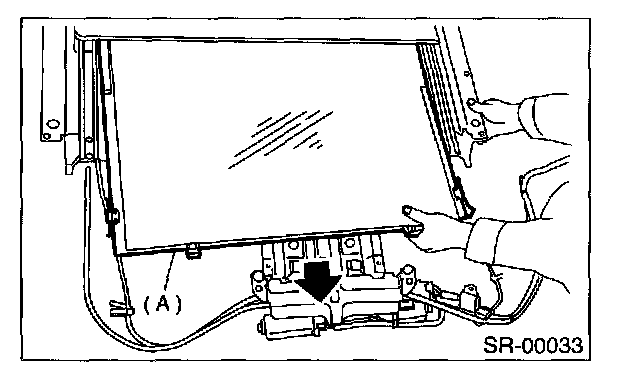

4. Pull out the sunshade (A) from sunroof frame.

ASSEMBLY

Assemble in the reverse order of disassembly.
