Complete Unit

Sunroof Assembly

REMOVAL

1. SEDAN
1. Disconnect ground cable from battery.
2. Remove roof trim.
3. Remove sunroof lid.
4. Disconnect drain tubes from sunroof frame.

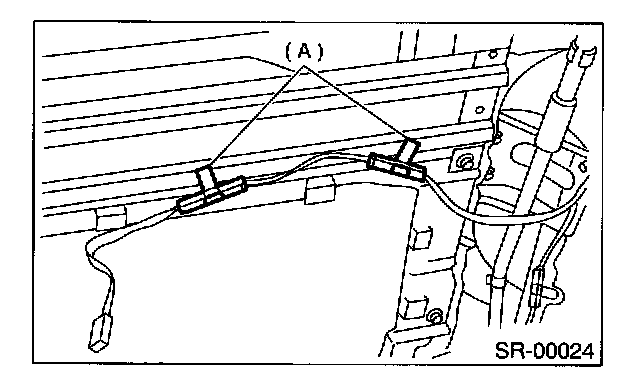

5. Remove room lamp harness clip (A).
6. Disconnect sunroof harness connector.

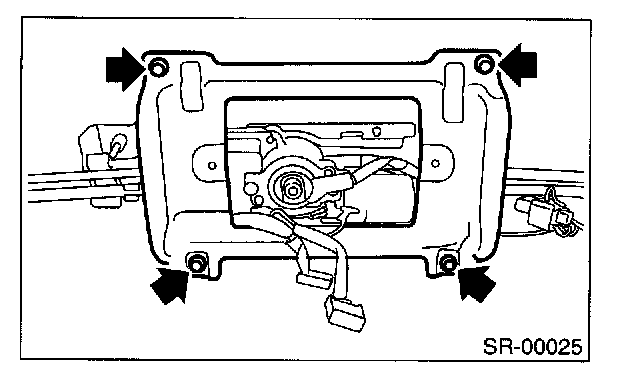

7. Remove motor cover.

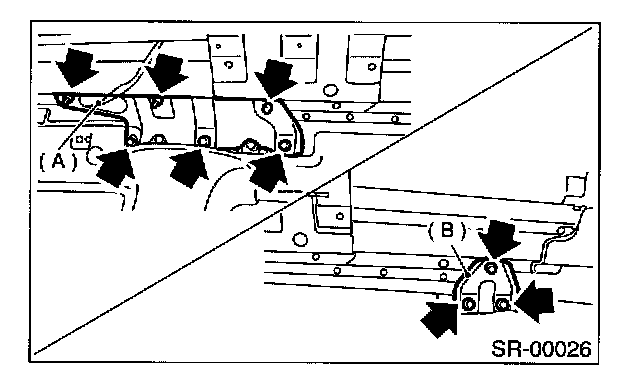

8. Remove sunroof brackets front (A) and rear (B).

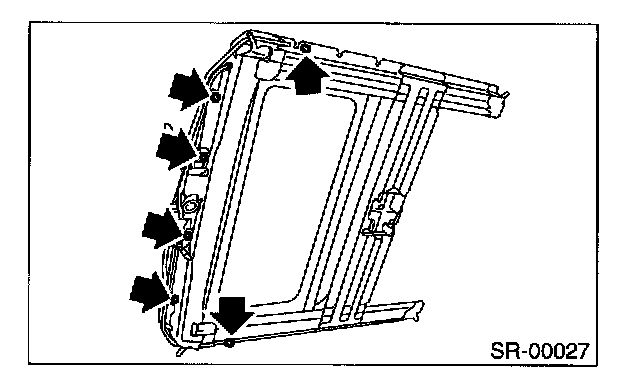

9. Remove nuts then detach the sunroof frame.

2. WAGON (FRONT)
1. Disconnect ground cable from battery.
2. Remove roof trim.
3. Remove front sunroof lid.
4. Remove room lamp harness clip.

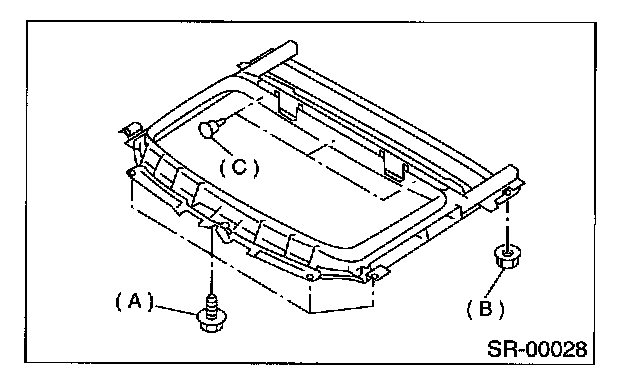

5. Remove bolts (A), nuts (B) and clips (C) then detach the sunroof frame.

3. WAGON (REAR)
1. Disconnect ground cable from battery.
2. Remove roof trim.
3. Remove rear sunroof lid.

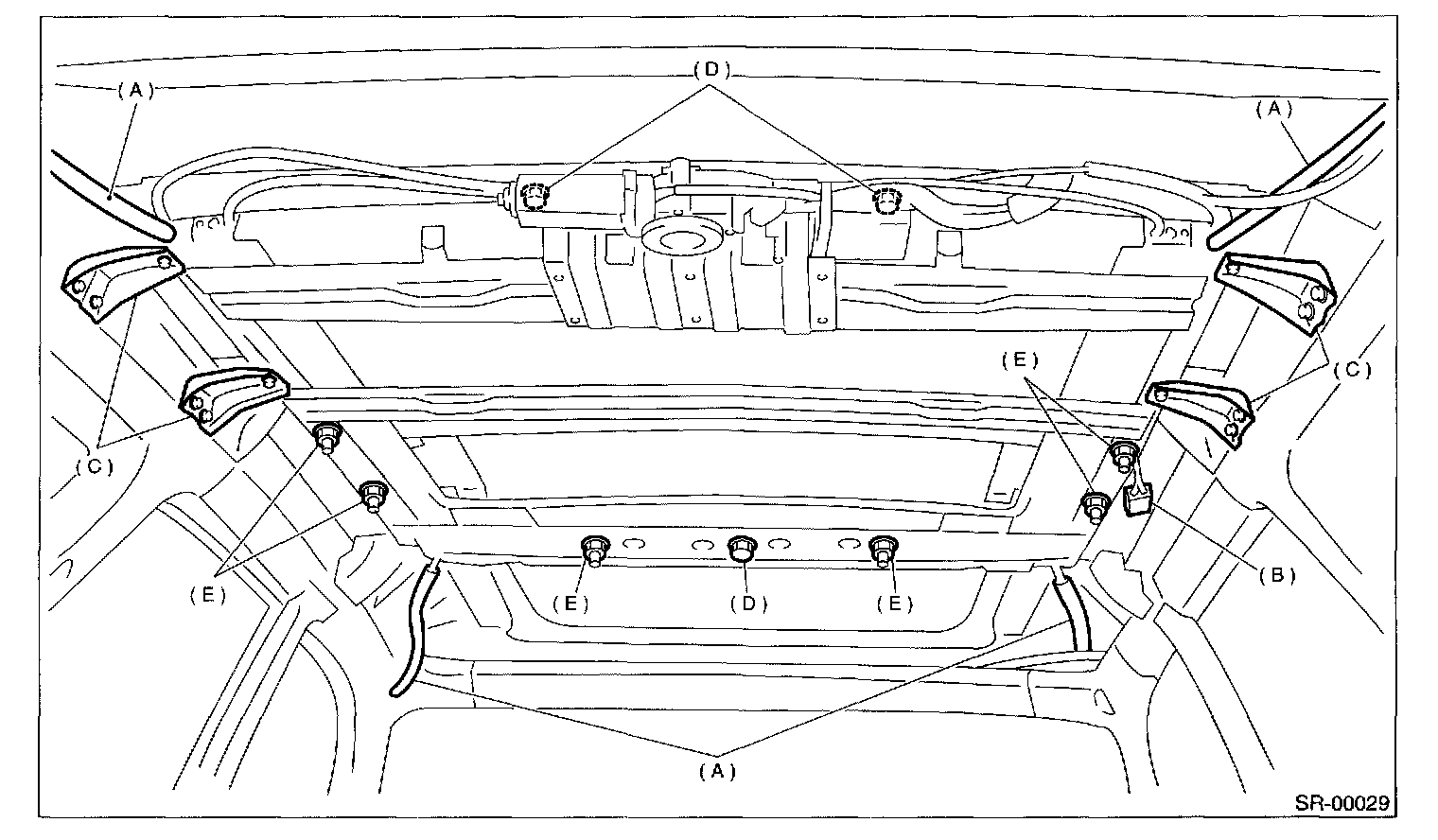

4. Disconnect drain tubes (A) from rear sunroof frame.
5. Disconnect sunroof harness connector (B).
6. Remove sunroof brackets (C).




7. Remove bolts (D) and nuts (E) then detach the sunroof frame.

INSTALLATION




Install in the reverse order of removal.

CAUTION: Be careful not to snag the harness.

NOTE:
- Make sure to connect harness connector.

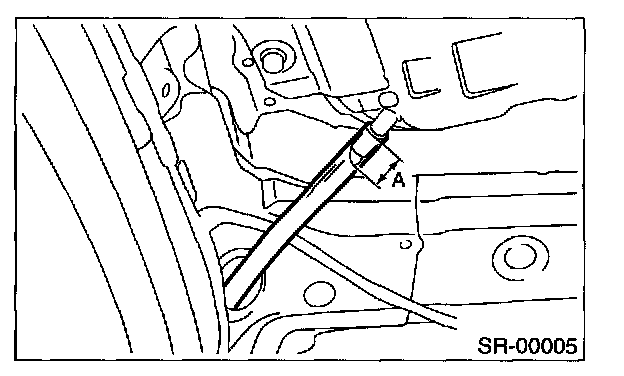

- When installing drain tube, insert it securely onto drain pipe.

Length A: 15 mm (0.59 in) or more
