No Trouble Code

NO TROUBLE CODE

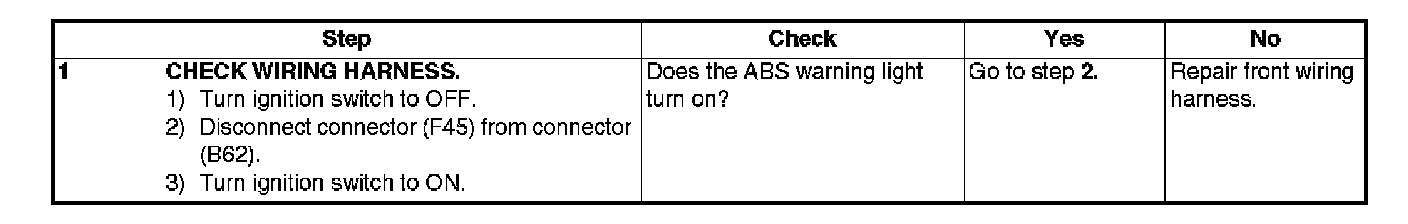

Step 1:

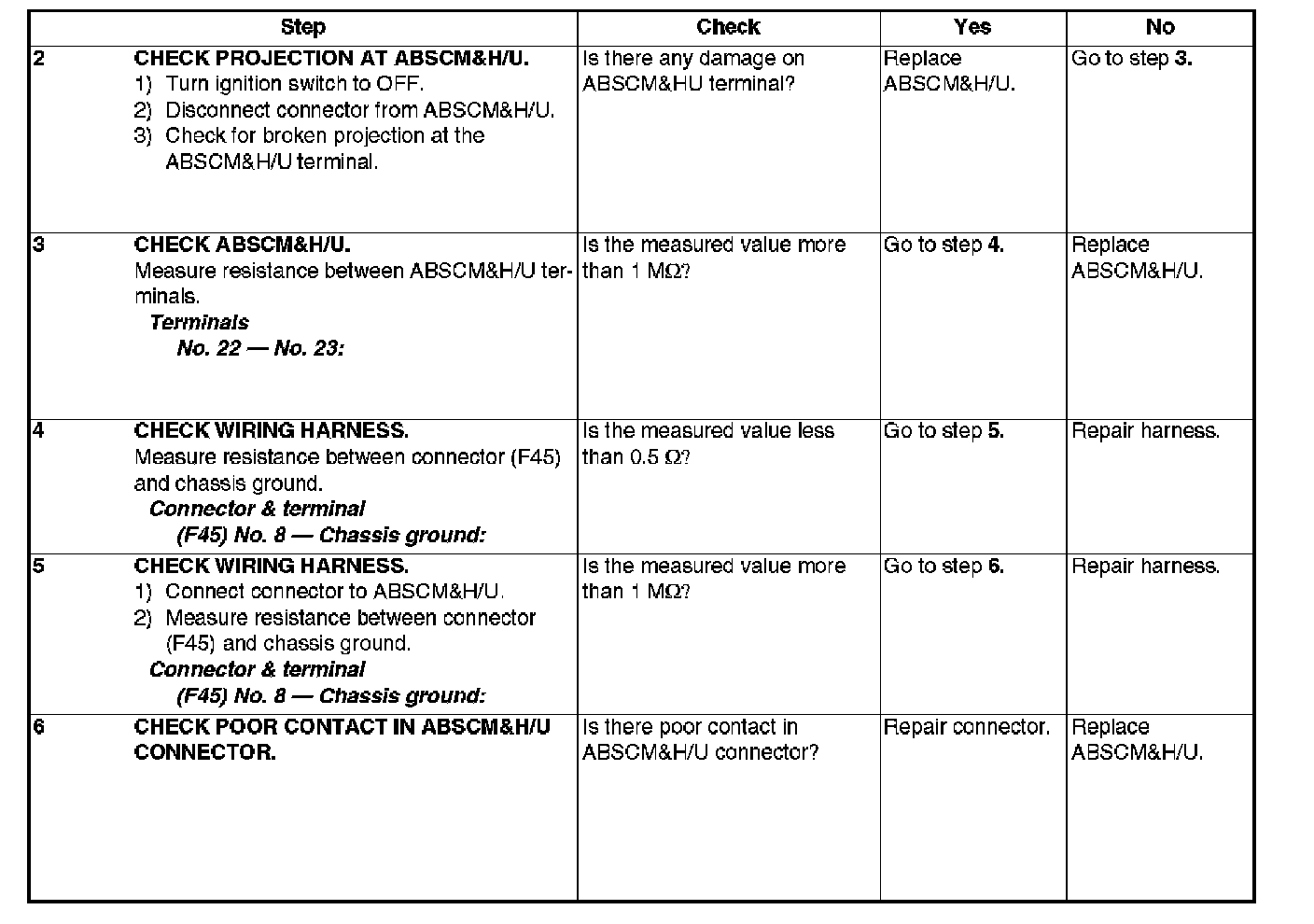

Steps 2-6:






DIAGNOSIS:
^ ABS warning light circuit is shorted.

TROUBLE SYMPTOM
^ ABS warning light remains on.
^ NO TROUBLE CODE displayed on the select monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.





WIRING DIAGRAM
