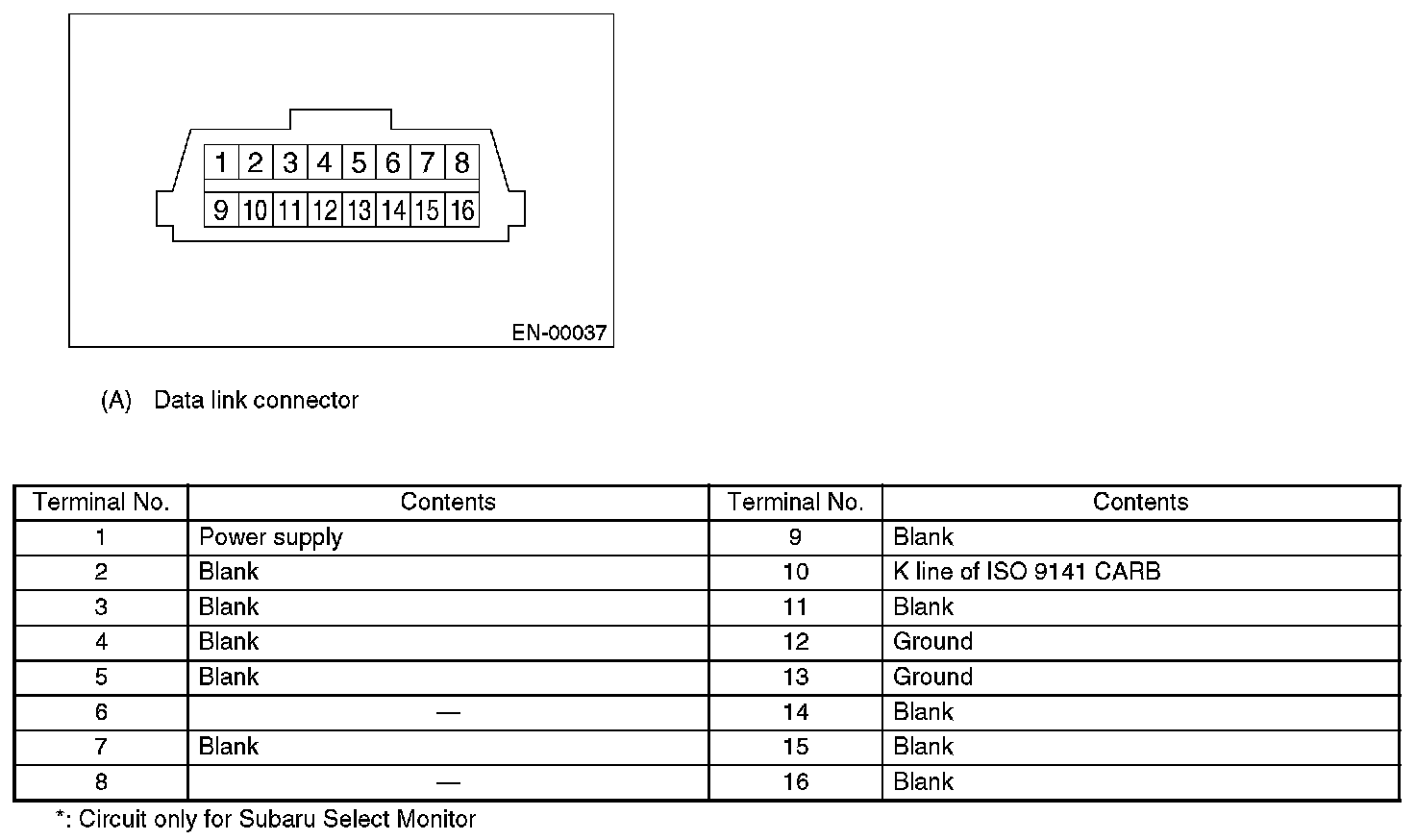

Data Link Connector

Data Link Connector

NOTE:
1. This connector is used both for OBD-II general scan tools and the Subaru Select Monitor.
2. Terminal No.4 to No.6 of the data link connector is used for the Subaru Select Monitor signal.

CAUTION: Do not connect any scan tools other than the OBD-II general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.
