Radiator Main Fan System

INSPECTION
TROUBLE SYMPTOM:

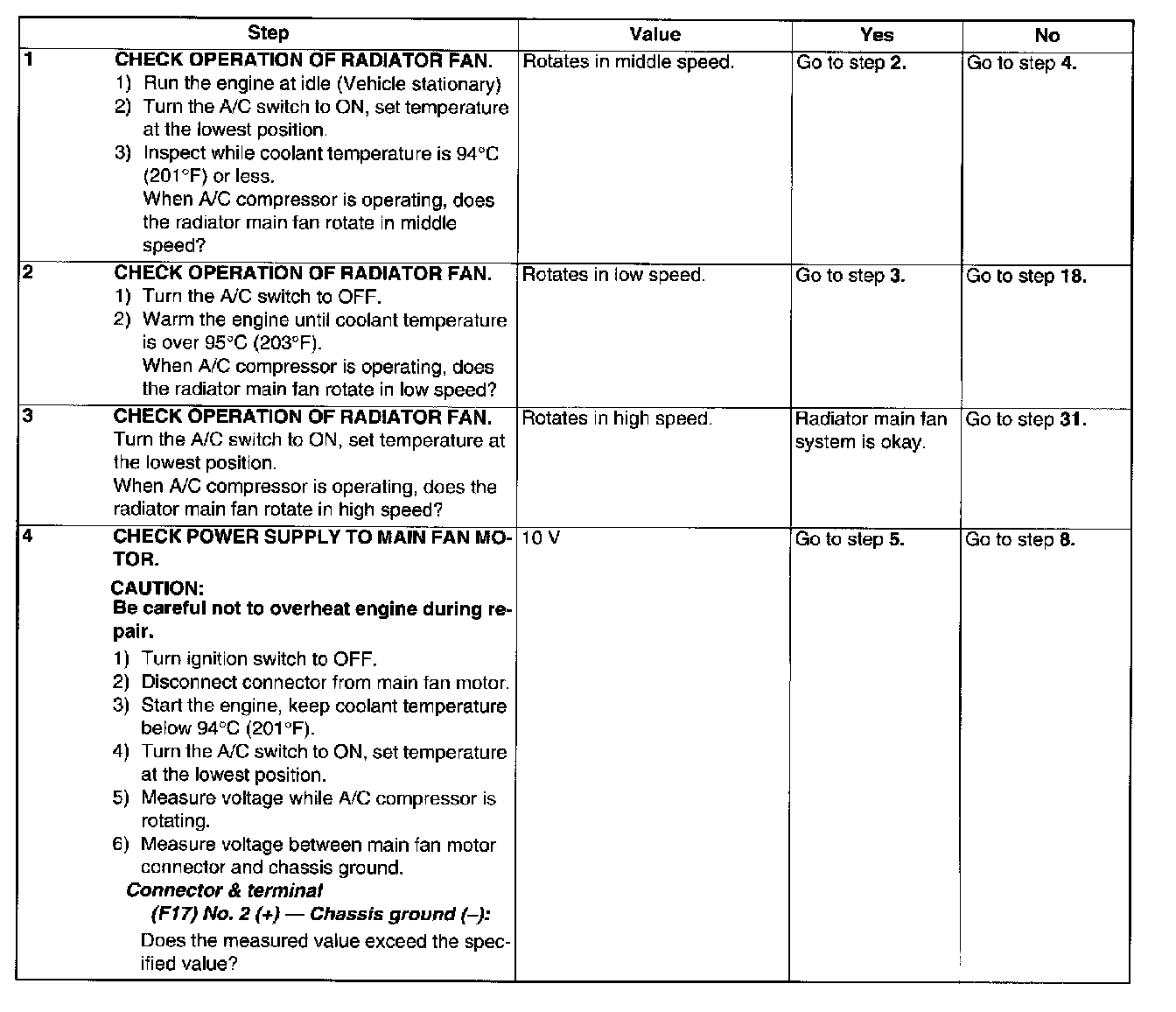

Test 1 Of 7:

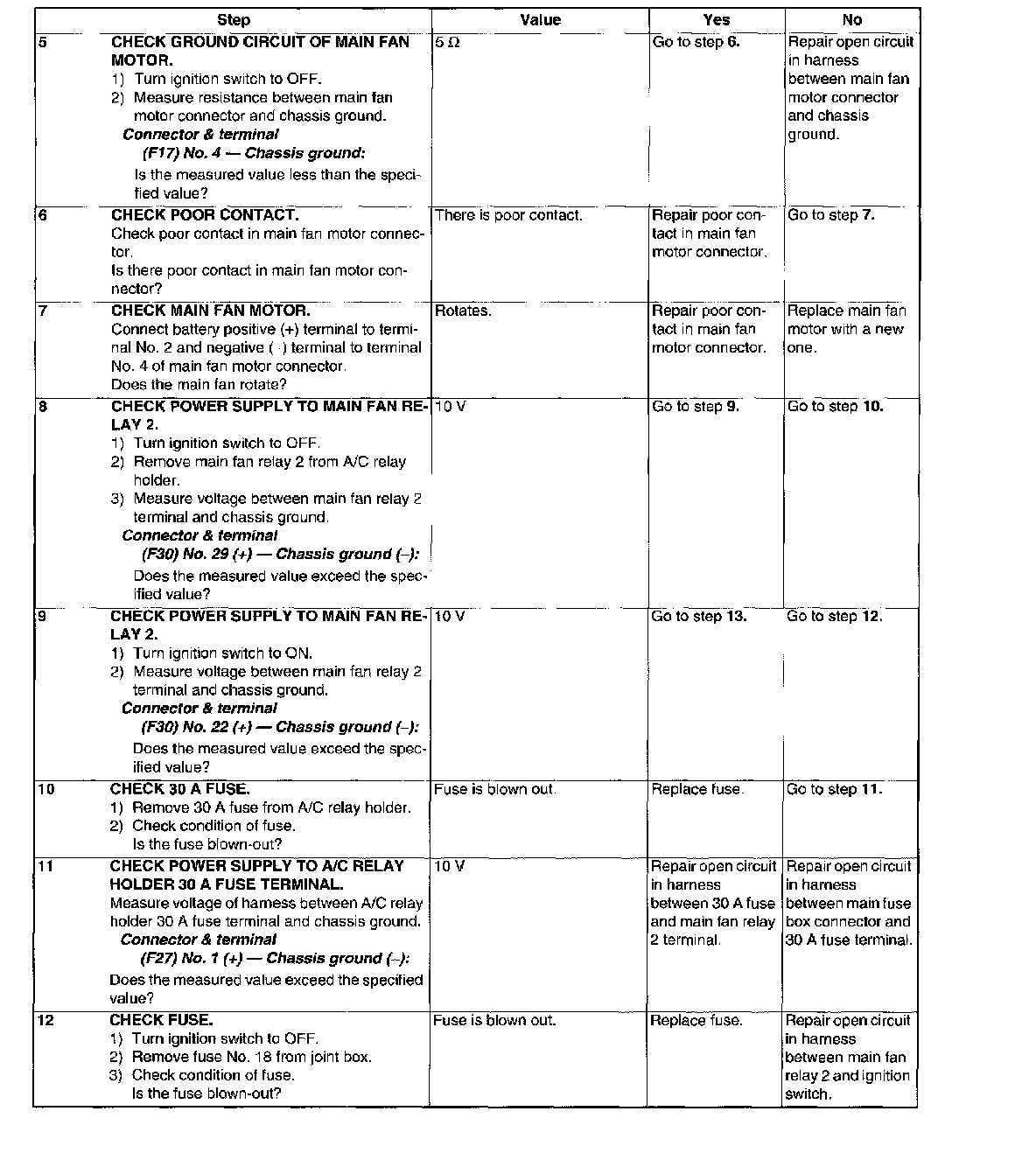

Test 2 Of 7:

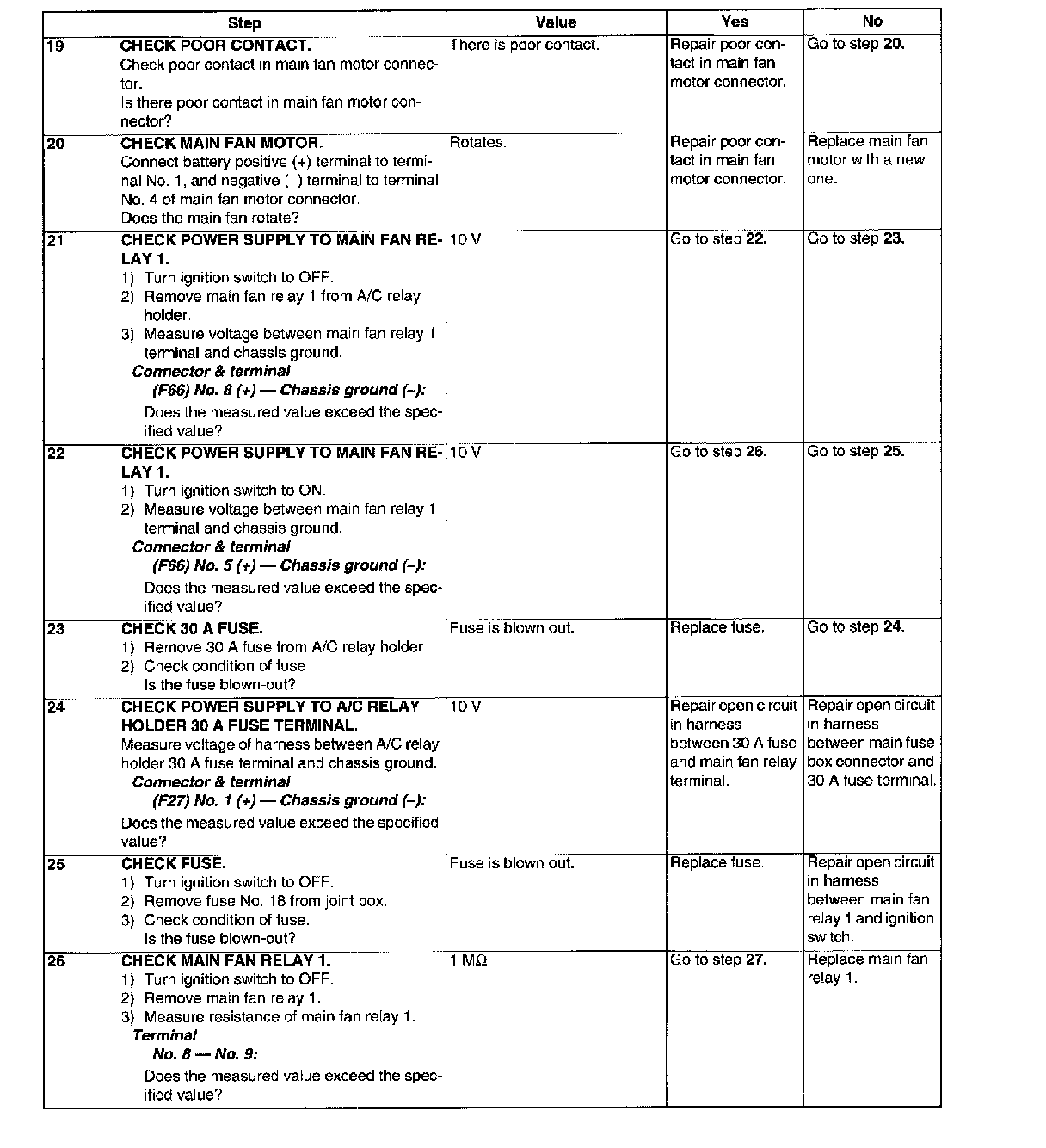

Test 3 Of 7:

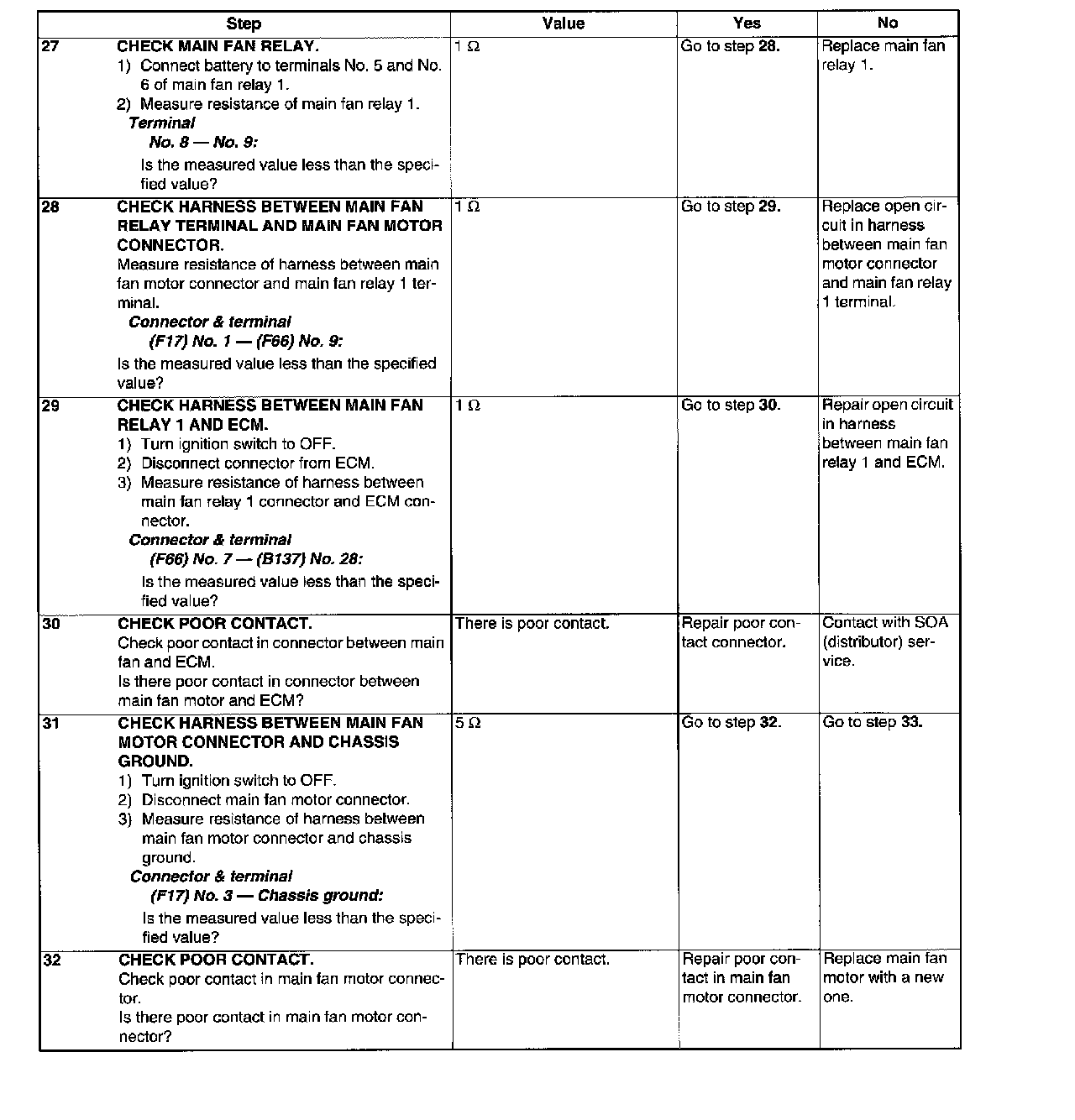

Test 4 Of 7:

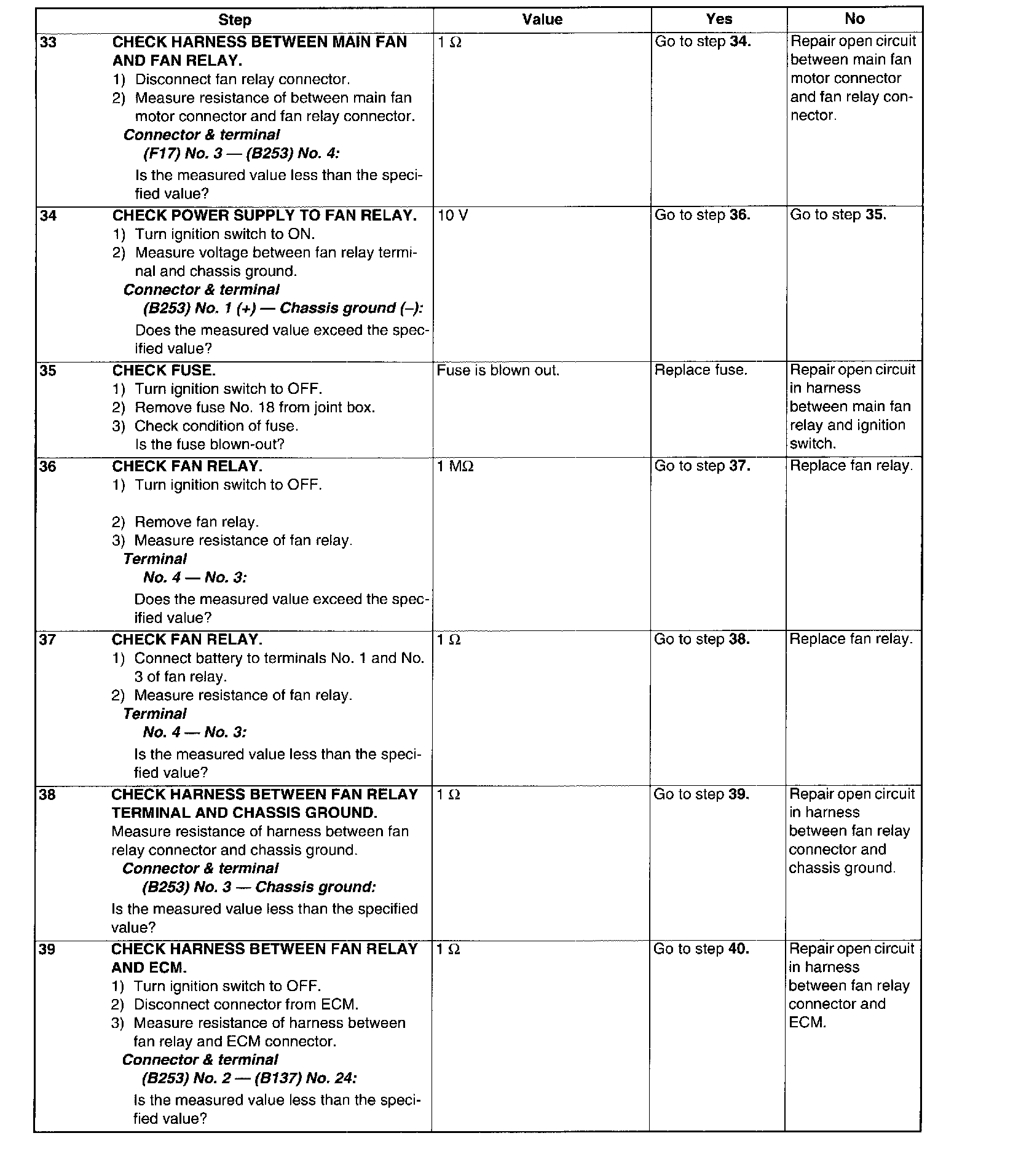

Test 5 Of 7:

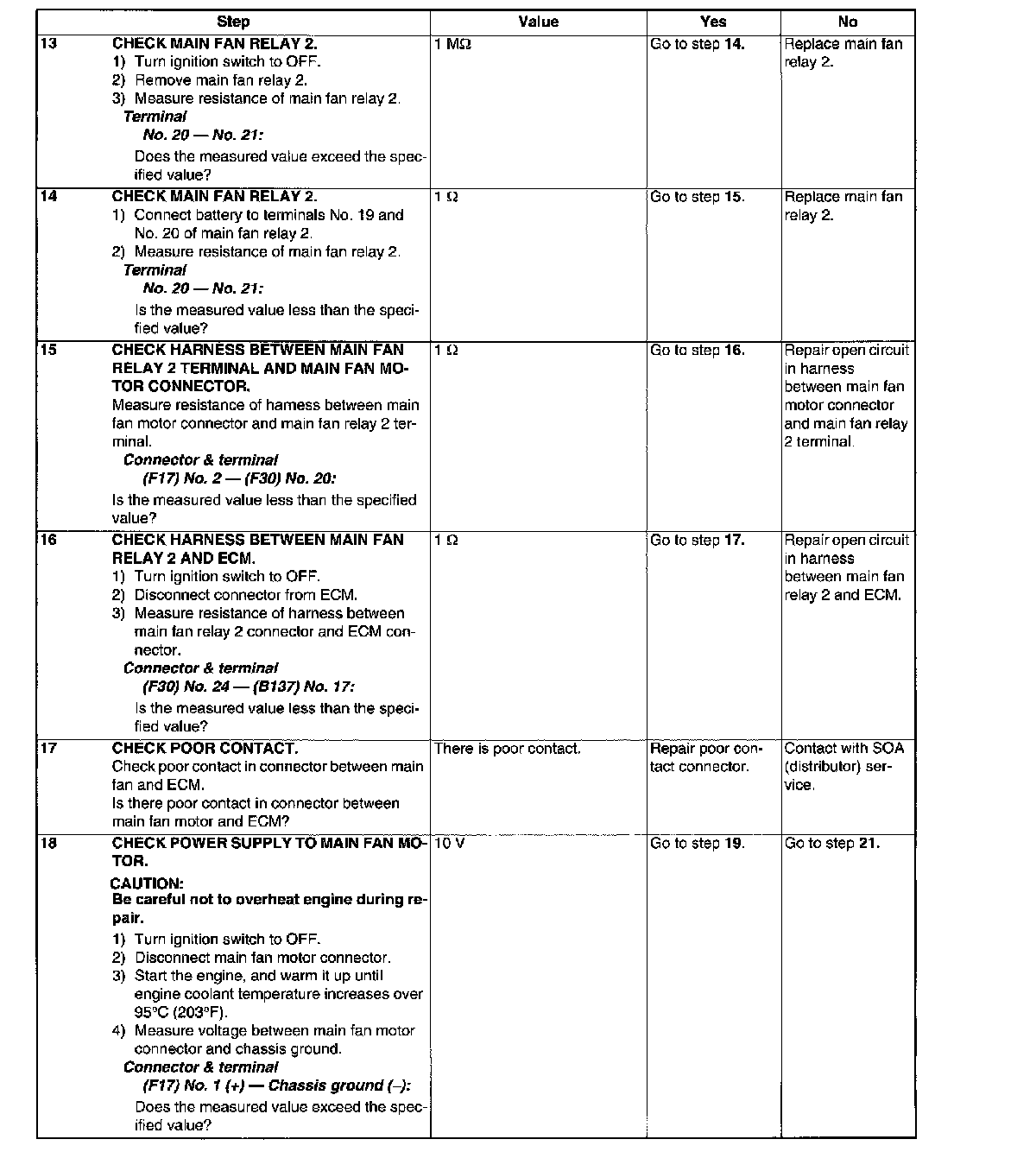

Test 6 Of 7:

Test 7 Of 7:

^ Radiator main fan does not rotate in low speed under the following conditions:
1. Coolant temperature 95°C (203°F) or more.
2. A/C switch set to OFF.
^ Radiator main fan does not rotate in middle speed under the following conditions:
1. Coolant temperature 94°C (201°F) or less.
2. A/C switch set to ON and A/C temperature at the lowest position.
^ Radiator main fan does not rotate in high speed under the following conditions:
1. Coolant temperature 95°C (203°F) or more.
2. A/C switch set to ON and A/C temperature at the lowest position.
