Rear
General:
General -

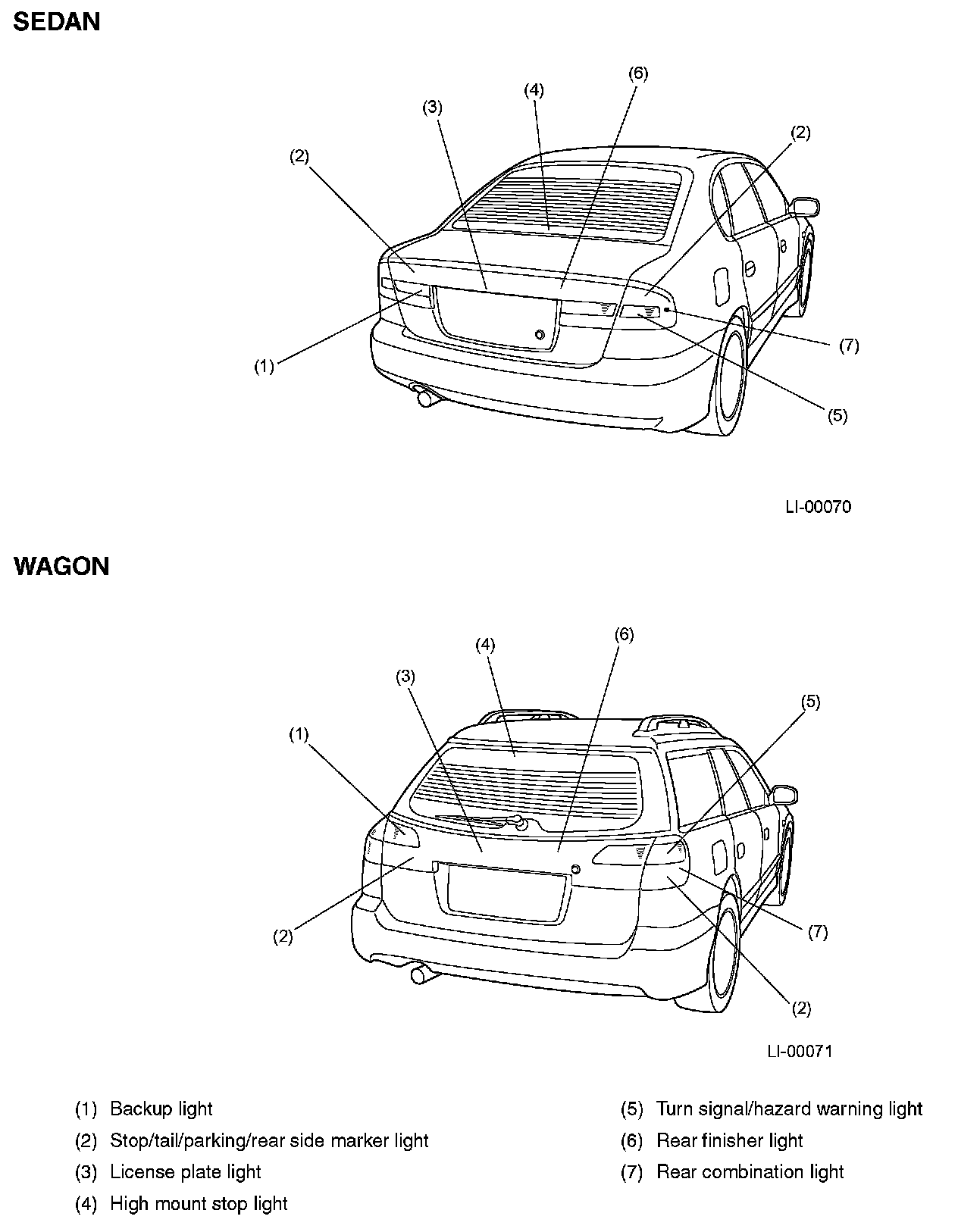

The rear turn signal/hazard warning light, stop/tail/parking light, and the backup light are incorporated into the rear combination light and rear finisher light. The side marker light and rear reflex reflector are also incorporated into the rear combination light.
-
The high mount stop light is installed to the bottom inside of the rear window on sedans, and to the top inside of the rear gate on wagons.
