Idle Speed/Throttle Actuator - Electronic: Service and Repair

Idle Air Control Solenoid Valve

REMOVAL




1. Disconnect battery ground cable.

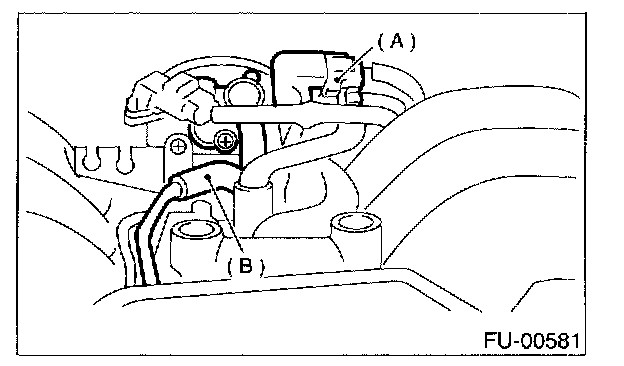

2. Disconnect connector (A) from idle air control solenoid valve.
3. Disconnect air by-pass hose (B) from idle air control solenoid valve.




4. Remove idle air control solenoid valve from throttle body.

INSTALLATION

Install in the reverse order of removal.

NOTE: Replace gasket with a new one.

Tightening torque: 2.8 N.m (0.29 kgf-m, 2.1 ft-lb)
