Throttle Position Sensor: Service and Repair

REMOVAL

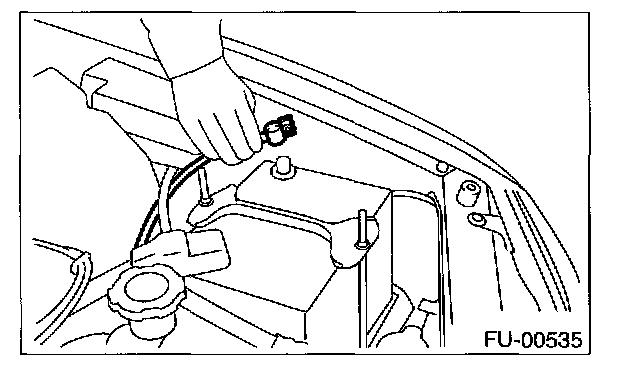

1. Disconnect battery ground cable. Remove air intake chamber.

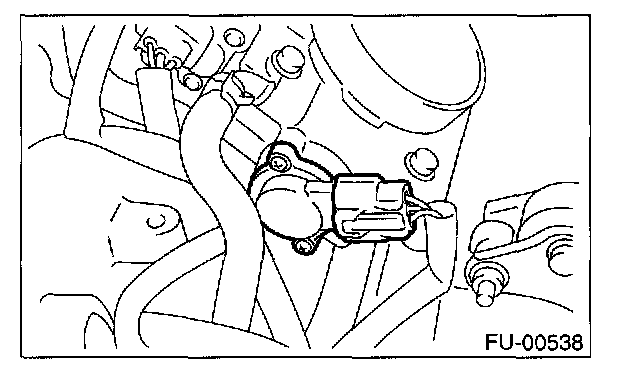

2. Disconnect connector from throttle position sensor.

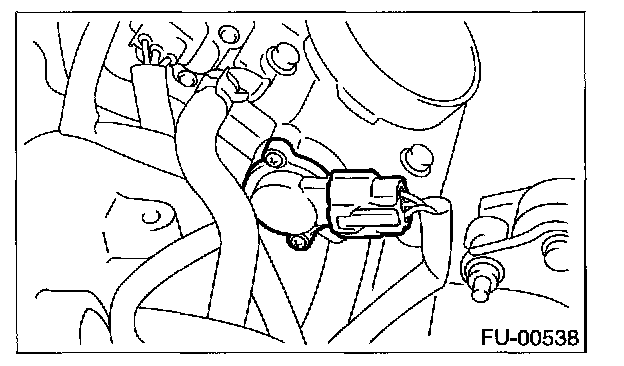

3. Remove throttle position sensor holding screws, and remove throttle position sensor itself.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 1.6 N.m (0.16 kgf-m, 1.2 ft-lb)
