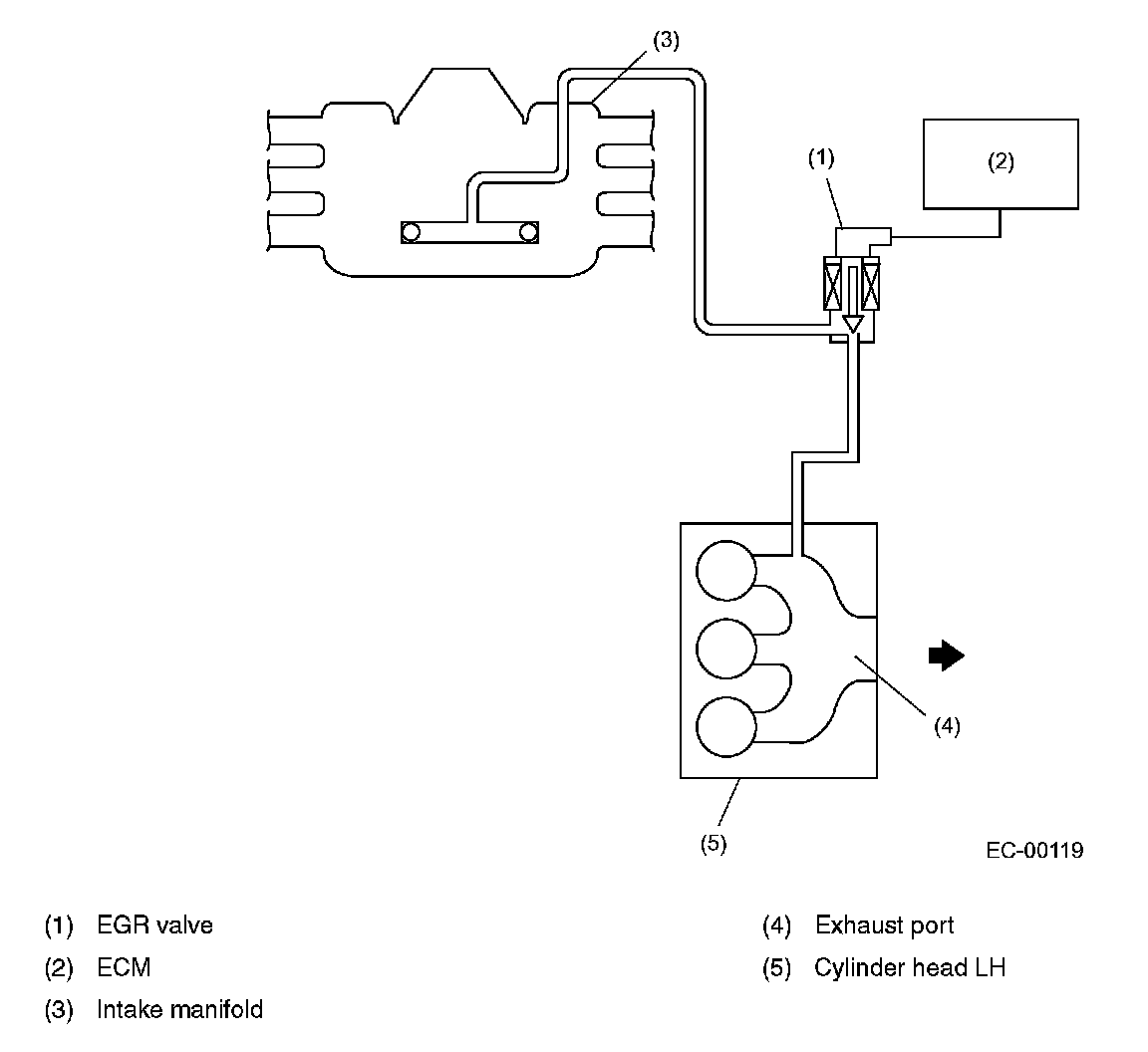

Exhaust Gas Recirculation (EGR) System

General
- The EGR system aims at reduction of NOx by lowering the combustion temperature through recirculation of a part of exhaust gas into cylinders via the intake manifold.
- The EGR valve is controlled by the ECM according to the engine operating condition.
