Accelerator Pedal: Adjustments

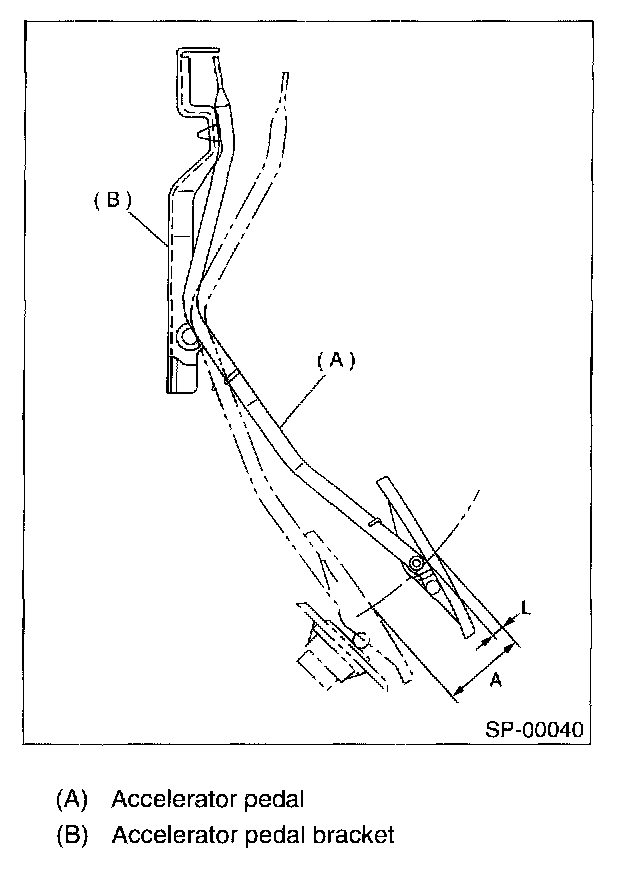

ADJUSTMENTCheck pedal stroke and free play by operating
accelerator pedal by hand.
If it is not within specified value, adjust it by turning nut connecting accelerator cable to
throttle body.
Free play at pedal pad: L
1 - 4 mm (0.04 - 0.16 in)Stroke at pedal pad: A
50 - 55 mm (1.97 - 2.17 in)
